NEAT is the first bike in our ‘midpower’ or light e-MTB category, opening the door to riders looking for an enduro ebike that provides the same sensations as a regular enduro bike together with the silence and feel of the TQ-HPR50 motor.
NEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.
NEAT is the product of our desire to blur the line between traditional MTBs and full power eMTBs, creating a bike which truly offers the best of both worlds. A 150mm enduro bike with a 160mm fork, the lower limit travel for maximum performance. Light, but without sacrificing anything in the process.
BEST OF BOTH WORLDS:
Mondraker has managed to merge the best of both worlds by blending our two category leading bikes: the Enduro FOXY CARBON and e-MTB Enduro CRAFTY CARBON. 2024 then, sees the arrival of NEAT. A model with unmistakable aesthetics, characteristics and identity which sets a benchmark in this new category.
A large part of the identity of the NEAT is its frame made with STEALTH AIR FULL CARBON technology and weighing in at only 2300 grams. Combined with a 160mm Fox 36 fork (on all available kits) the frame boasts FORWARD GEOMETRY and a new configuration of the ZERO SUSPENSION SYSTEM kinematics with a Fox Float X shock providing 150mm of rear wheel travel.

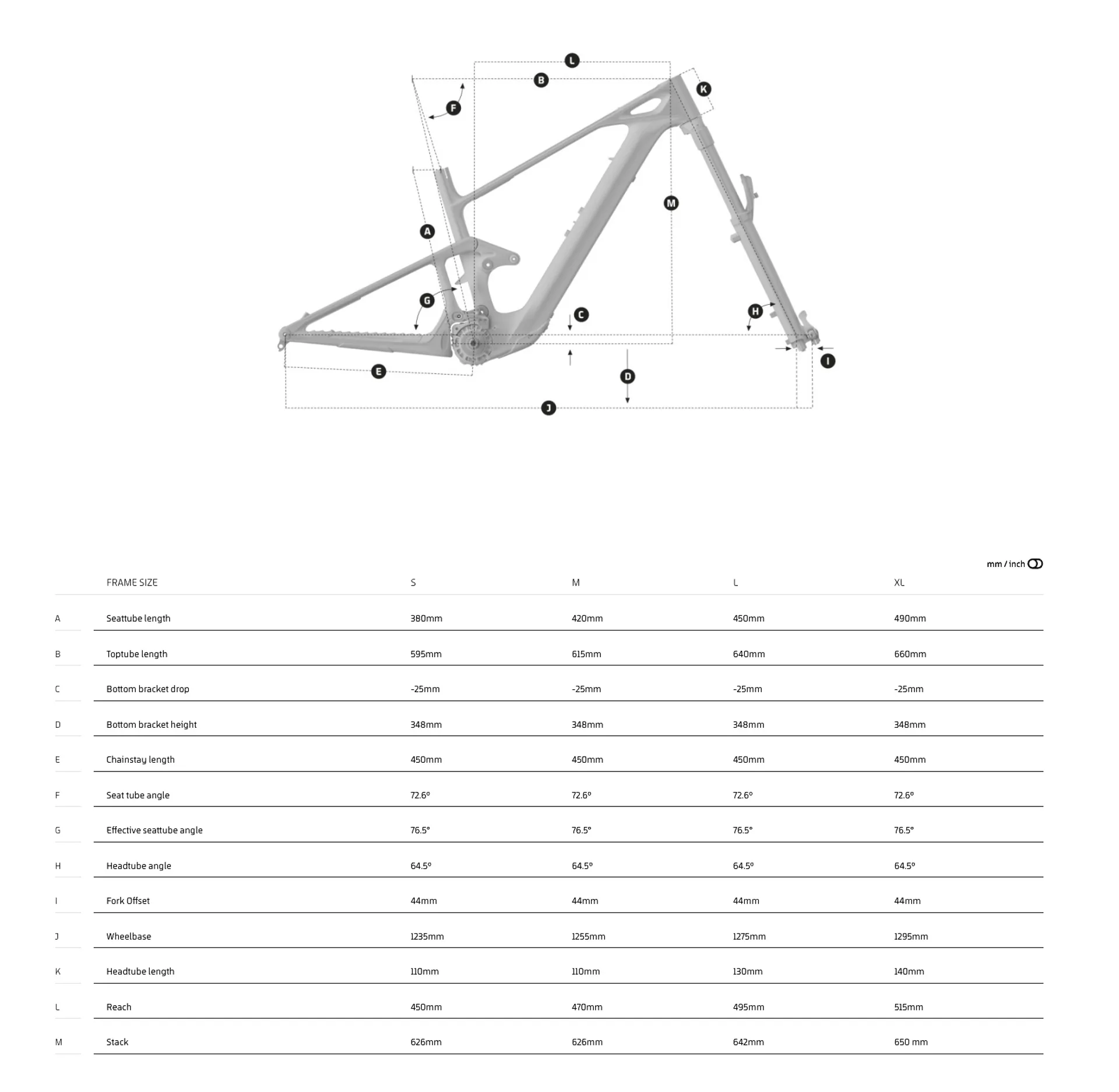

THE BALANCED GEOMETRY OF NEAT:
NEAT comes with category specific geometry and counts on the best that the FOXY CARBON and CRAFTY CARBON offer in their respective categories.
• 64.5º head angle. As slack as a FOXY CARBON in the LOW setting.
• 76.5º effective seat tube angle. 1º steeper than the FOXY CARBON.
• 450mm chainstays. 5mm shorter than the CRAFTY CARBON and 5mm longer than the FOXY CARBON.
• BB height of 348mm (-25mm drop). The perfect height for an ebike of its class.
• Reach of 450/470/495/515mm (S/M/L & XL). Reach figures inspired by the FOXY CARBON and CRAFTY CARBON.
ONE APP, INFINITE POSSIBILITIES
The scope of adjustment available to fine-tune the parameters of the TQ-HPR50 motor is one of the characteristics that best fits our philosophy here at Mondraker. Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent.
There are 3 modes available to let you quickly flick through the different levels of assistance provided by the motor: ECO, MID and HIGH. Within each of these modes you have a further 3 parameters which can be individually adjusted via the app: Max power, Assistance, and Pedal Response.
- Maximum Power: Adjustable between 30W and 300W (the maximum amount of power provided by the motor at maximum performance).
- Assistance: The percentage max assistance level of the motor, adjustable from 25% up to 200%.
- Pedal Response: The regulation of the delivery of power from the moment you first start pedalling.
The possibility of being able to regulate each mode individually, each mode being adjustable by a further three parameters, means that not only is the number of possible permutations enormous, but more importantly that you can set up your preferences to a tee, thus improving your riding experience.
