The Colnago C64 Disc is completely made in Italy by hand and is the result of more than 2 years of research, with full integration on the front end so all the cables are hidden whether it is built electronic or mechanical
Colnago

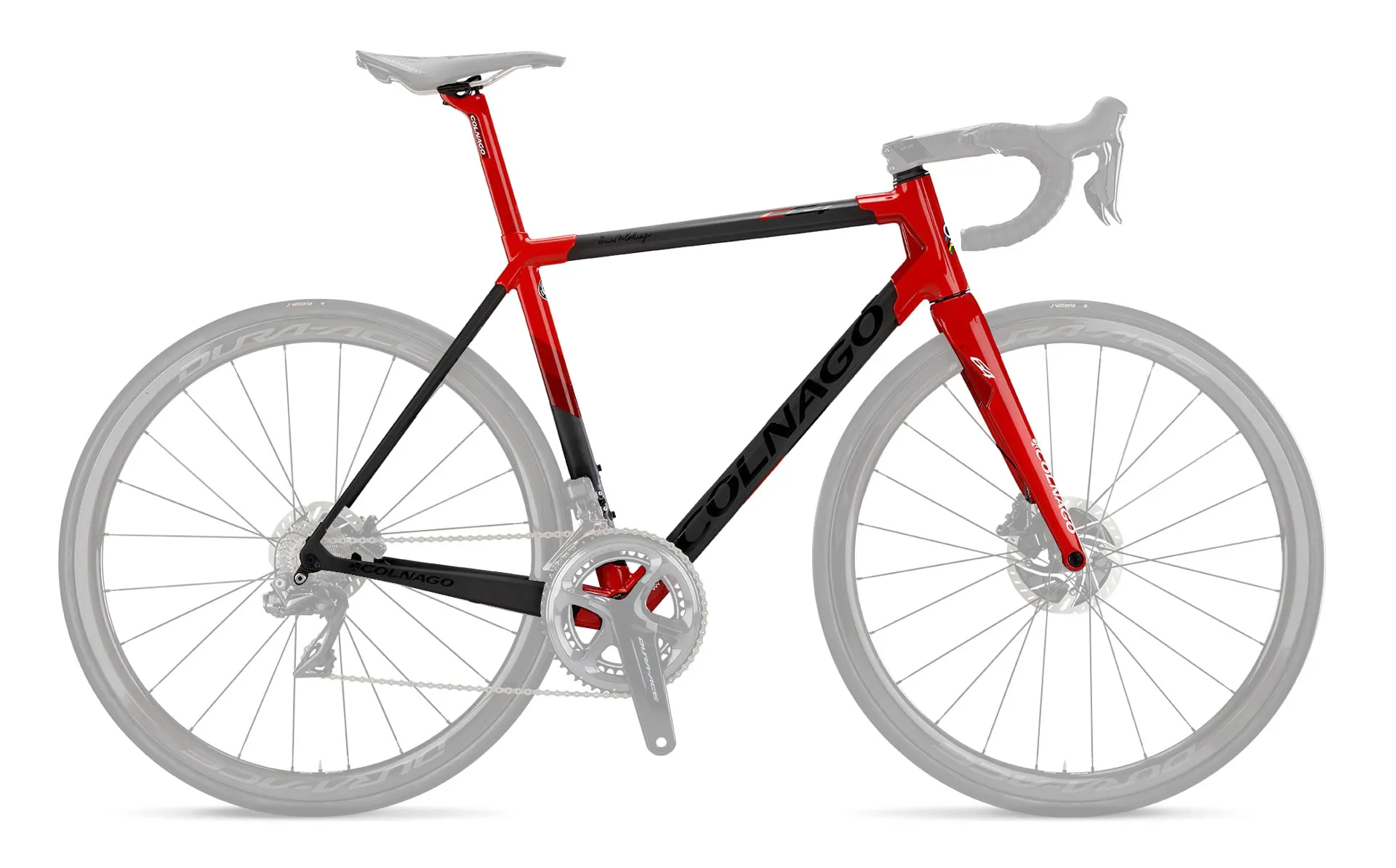

2020 Colnago C64 Disc Integrated Carbon Frameset Matt/Red Lugs PJRD

£4,599.95
Earn
 in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

You Pre-Order is prioritised (at no additional charge); meaning that, as soon as the product arrives with us, we can wrap it straight back up and get it sent out to you - it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery Dates

Estimated Delivery Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery Dates provided on product pages.

The Current Estimated Delivery Date is Undetermined

2020 Colnago C64 Disc Integrated Carbon Frameset Matt/Red Lugs PJRD

Season : 2020

Brand : Colnago

Code : sguLDERSLGNBCTAMDRJP.TNI.

C64 Disc Integrated

The Perfection of Made.

The C64 frame is full and made in Italy and is the result of more than 2 years of research, It represents the continuity of the history of a company that has collected successes and innovations for more than 60 years.

Colnago C64 Disc: completely handmade – “tailor-made,” it could be said – in Italy, with revolutionary tubes (larger, lighter, more durable), the C64 is the fruit of more than two years of research. Yet, it was designed based on an almost immeasurable history of cycling innovation and success – one which began in 1954. The C64’s tubes and lugs are made of the finest carbon fibre, making it a unique frame in the world – one that cannot be compared to anything else. In the C64’s design lies Ernesto Colnago’s knowledge and experience, gained from a lifelong pursuit of cycling perfection.

Stem.

New Dedicated Design.

Due to the internal routing of the brake cable housing, we had to design a proprietary stem to complement the C/D fork.
The stem is compatible with all handlebars on the market and features bottom port for brake cables.

Fork.

355 Grams of Resistance.

Completely redesigned, it is more stiff and resistant and weighs 40 grams less.
The C64’s fork has been fully redesigned, with an external rib-shape to give the rider more comfort (front stiffness) but also to increase the ride-quality (side stiffness). To increase the stiffness and strength, we’ve created an internal rib in the steerer tube, which also holds the nut for the top cap and eliminates the need for an expander-plug. The C64 Disc fork will feature a C/D steerer tube shape, where the brake housing can run from the stem – for a neat assembly. The thru-axle, while still 12mm like the C60 Disc, is now a threaded system to further reduce the weight of the bike.
Fork weight is 355gr.
With the same shape as the disc fork, the rim version houses the pivots for the direct-mount brakes – which offers plenty of tire clearance. The fork length was increased by 5mm to be able to accomidate larger tires yet still have a hollow upper structure, to lower the weight but still retain the same stiffness and performance as the C60 fork. Dropouts are now full carbon – replacing the alloy dropouts used on the C60.

Bottom Bracket.

Shifting More Precisely.

Cable guide printed directly in carbon.

Designed around our proven ThreadFit82.5, which is basically a PressFit with removable base sleeves, the bottom bracket lug is now more complex than ever. The cable guide, which was typically a bolt-on plastic part, is now molded into the lug – to save grams as well as to offer the biggest possible radius for the best shifting performance. Another small detail is the hex shape on the side of the downtube insert, which is our datum point to check anything during the bonding of the frame and, later, the QC process. Another striking difference is the asymmetric insertion of the chainstays, with the left one being much wider.

Rear Triangle.

Full carbon dropouts and horizontal chain stays moulded in one piece.
Another key area where we completely changed our technology is the chainstay/dropout area. The C64’s dropouts are now fully part of the chainstays. The one-piece construction allowed us to lower the weight, add vertical compliance, and retain the same lateral stiffness. The disc-brake frameset features threaded12mm thru-axles and co-moulded flat-mount brake provisions. The rim-brake chainstays are a bit wider than the disc version, to help keep the same rear stiffness due to the lack of the thru-axle. This results in a very light but stiff full carbon rear end. The replaceable derailleur hanger is the very same, internally mounted hanger used on all our current road rim-brake frames. The lightweight seat stay is designed around very wide tires, and houses the alloy threaded inserts for direct-mount brakes.

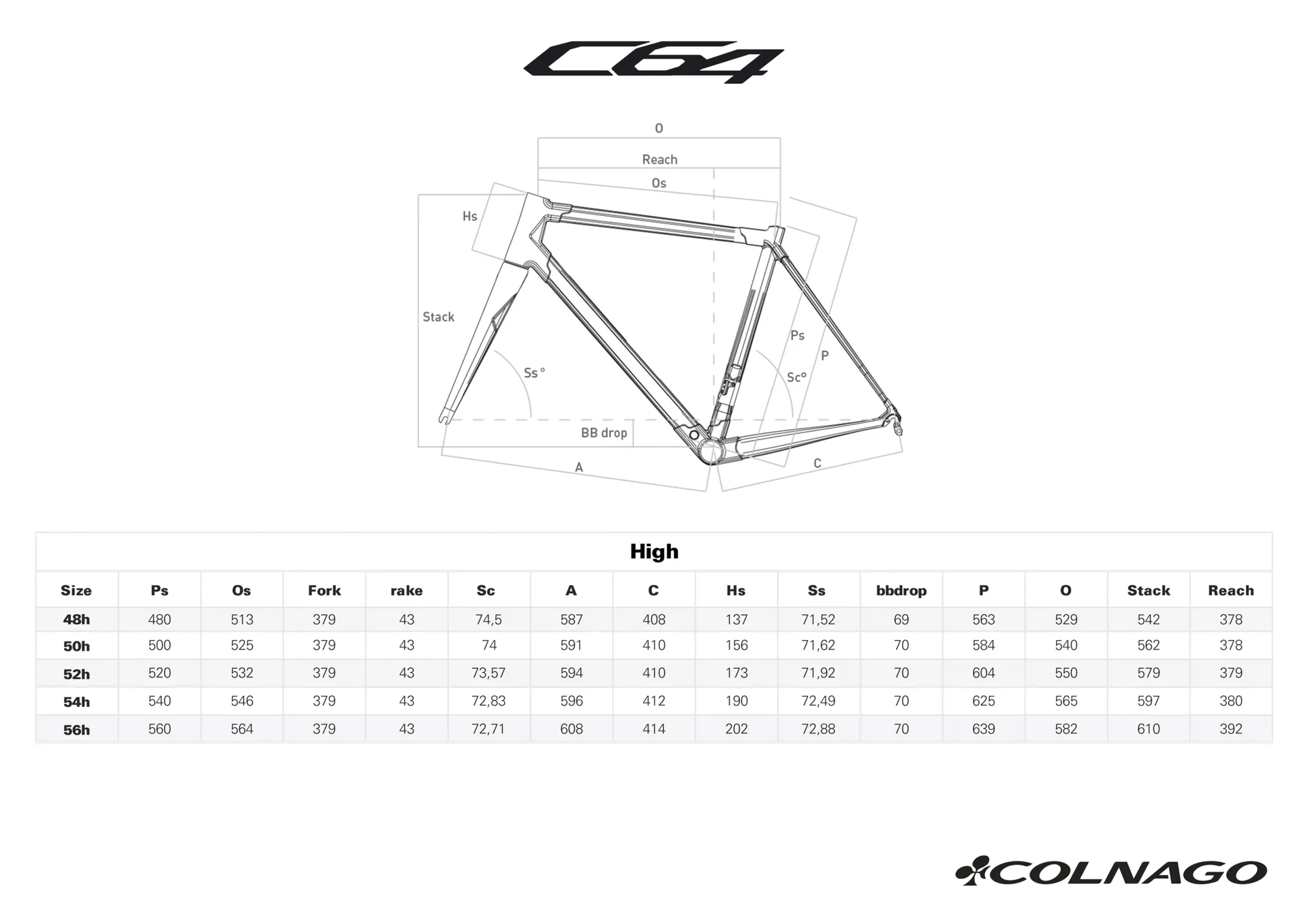

Sizing Information
