SIZE MEDIUM ONLY
SIZE MEDIUM ONLY
Mondraker

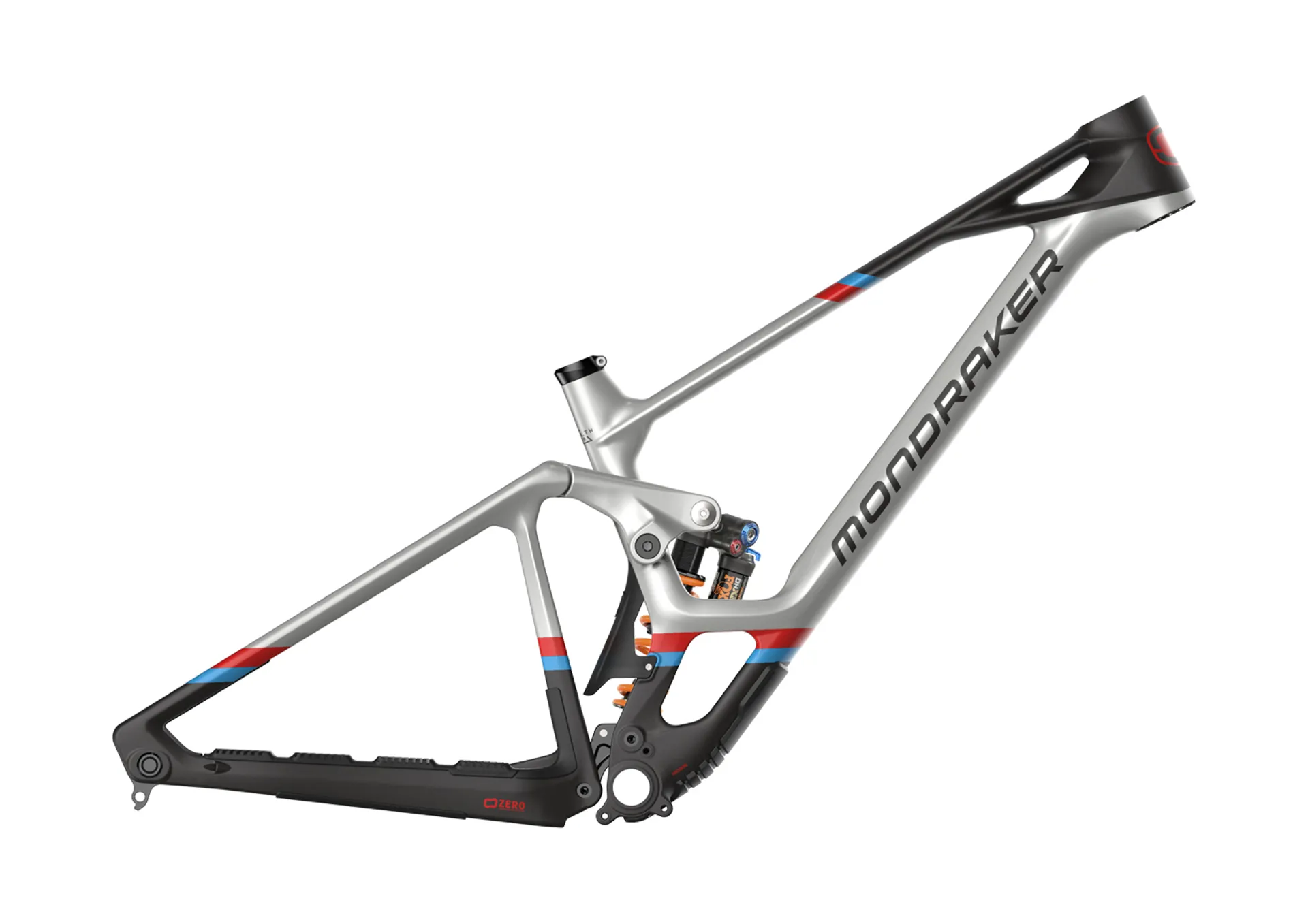

2022 Mondraker Summum Carbon RR 29 Frameset - Size Medium

£2,298.00 £3,999.00 43% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Mondraker Summum Carbon RR 29 Frameset - Size Medium

Season:2022

Brand:Mondraker

Code:010.22155

If you want to feel like one of our international riders this is your bike. With a frame which is new from the ground up, it’s a benchmark on the international circuit.

It’s built using Mondraker’s ground breaking technologies including MIND, a telemetry system which helps you give it your all thanks to the optimization of your suspension, the ZERO SUSPENSION SYSTEM.

Designed for 29” wheels front and back.

Technical Information
FrameSummum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12×157mm rear axle, 83mmBSAbottom bracket,HHGinternal cable routing,MAX. capacity dual raw Enduro bearings, shock mudguard,ISCG05, custom frame protectors. *Geometry kit included
Rear ShockFox DHX2 Factory Kashima, 225×70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30×8mm bottom bushings
Shock SettingsECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
HeadsetONOFFMercurium 1.5 ZS for 1-1/8” steerer tube, 41×30.15×7×45ºx45ºACBsealed bearings, geometry kit cups, external diameter 56mm
OthersGeometry kit included: +-1º / +-2º headset cups
