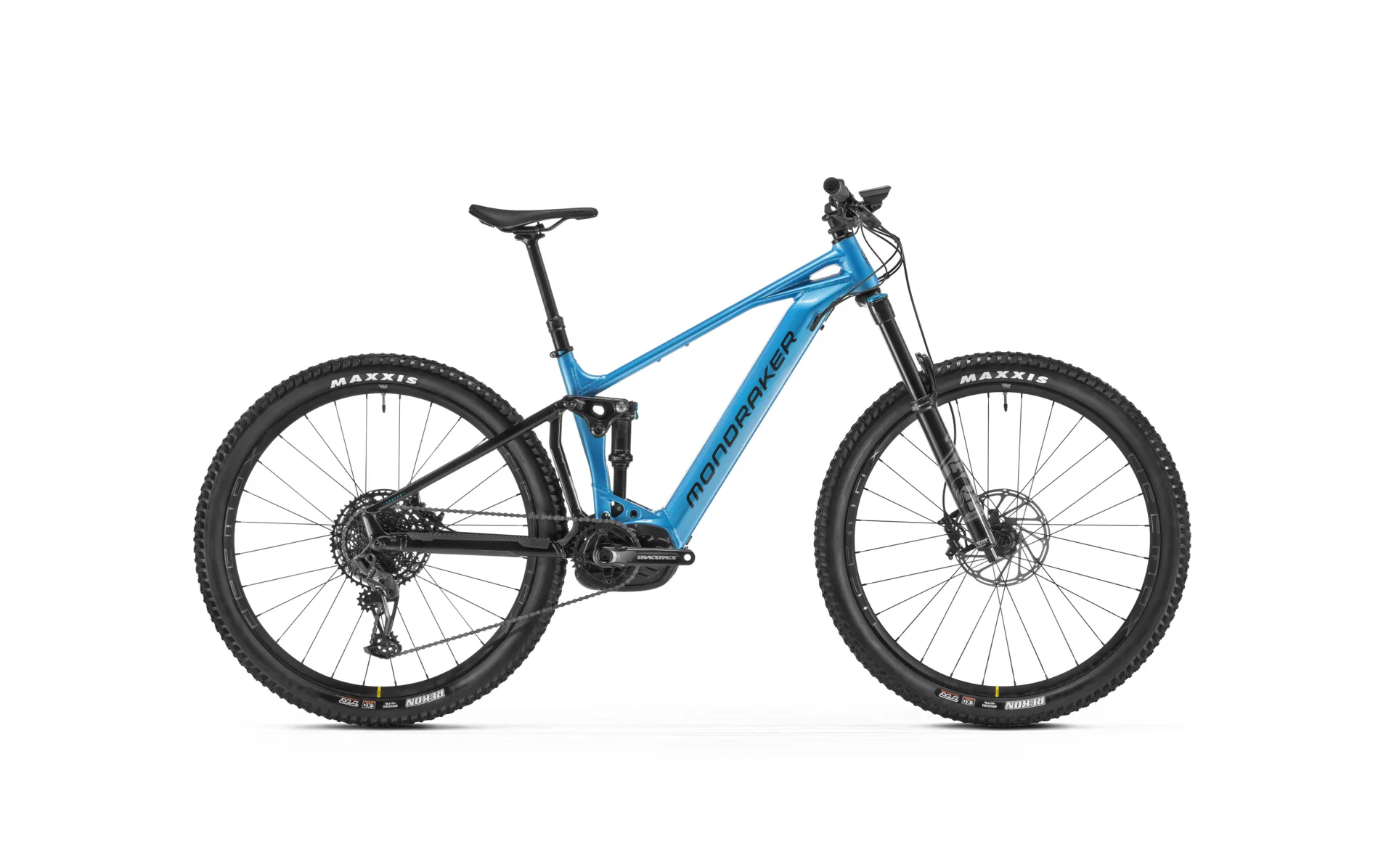

2022 Mondraker Chaser R 29 Electric Mountain Bike in Blue

Season:2022

Brand:Mondraker

Code:22CHASERR

The Chaser R's STEALTH aluminium frame with its ZERO SUSPENSION SYSTEM optimised for ebikes together with the quality components we’ve kitted it out with will let you enjoy endless trails for the best value for money on the market. Nothing else offers you more than the Chaser.
Mondraker has the most evolved ebikes in the sector and it shows that the Chaser is part of the family. What’s more, it’s got 160mm of suspension travel up front and 150mm at the back which means you’re going to have lots and lots of fun
Technical Information
Frame

Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard

Rear shock

Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Fork

Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload

Headset

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

ONOFF Diamond, 1lock-on, 135m

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

Saddle

FIZIK Terra Aidon X5 145m

Front brake

SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

SRAM G2 R, tool-free reach adjust

Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spoke

Spokes

Mavic J-bend duble butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolt

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts

Front tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Crankset

Race Face Aeffect ebike, 165m

Rings

SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

SRAM SX Eagle, 12s, Powerlock

Rear derrailleur

SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Casette

SRAM PG-1210, 11-50T, 12s

Derailleur hanger

Mondraker M068

Weight

24.6 kg

Display

Bosch Kiox 300

Motor

Bosch Performance Line CX Cruise (25Km/h) Bosch Smart System

Battery

Bosch Powertube 750Wh
