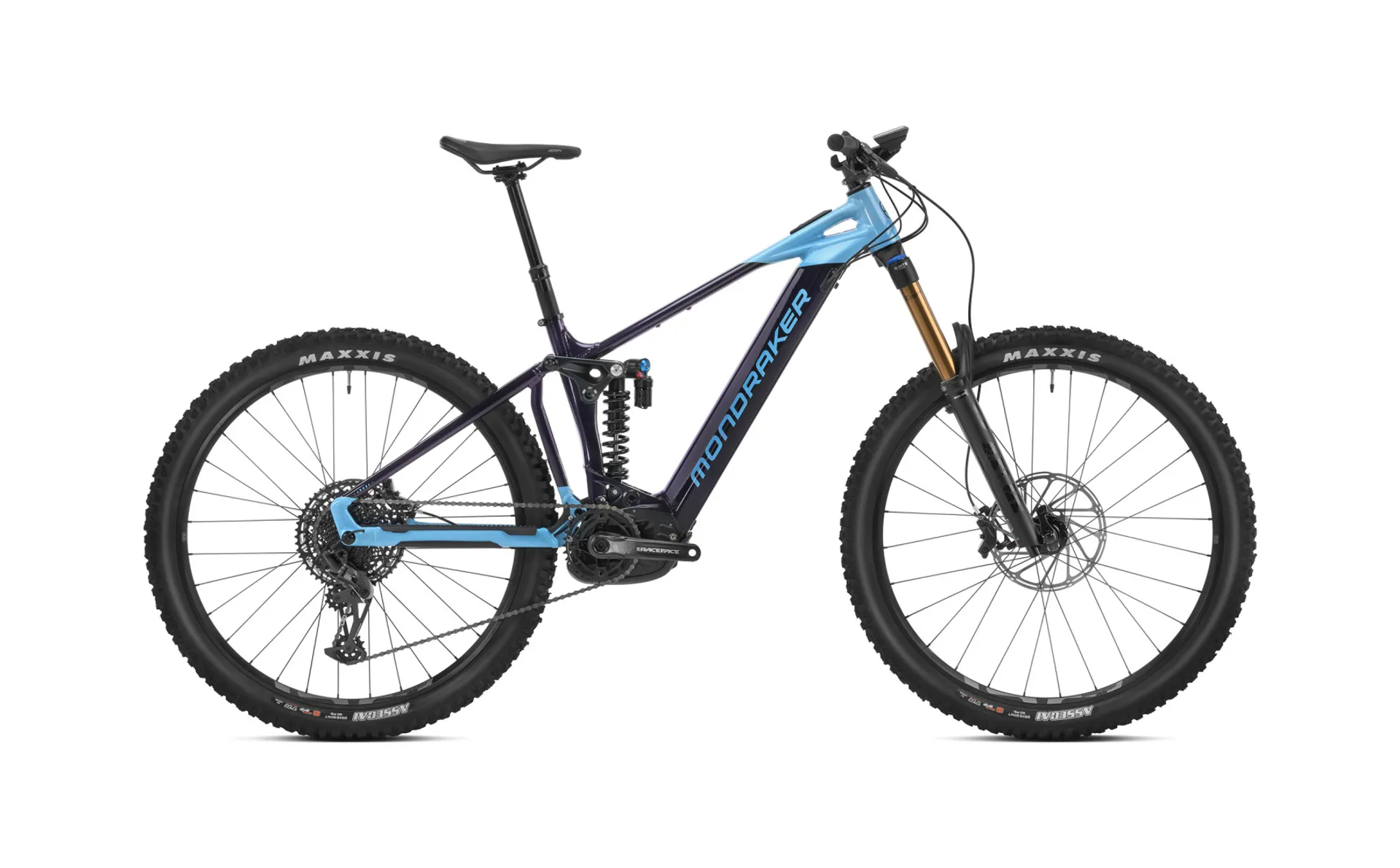

2023 Mondraker Level RR Electric Bike in Purple and Blue

Season:2023

Brand:Mondraker

Code:23LEVEL-RR

The LEVEL RR has a 750Wh battery fully integrated into the down tube and comes fully equipped with a Bosch Performance Line CX G4 Smart System motor combined with Bosch’s new Mini Remote and System Controller, both of which let you keep everything under control even if you don't have the KIOX display mounted. The LEVEL RR rocks a Fox 38 Float fork and a Fox DHX2 coil shock for even greater sensitivity; SRAM’s GX Eagle/NX Eagle drivetrain; e*thirteen’s E*Spec Plus IW30 wheels; SRAM’s Code R brakes, and ONOFF Components are the cherry on top. It’s a proper super enduro ebike.
Technical Information
Frame

Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor cover

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushing

Shock settings

Medium compression, medium rebound. Spring rate: S/M size 300 lbs, L size 350 lbs, XL size 400 lbs

Fork

Fox 38 29 Float FIT GRIP2 Factory Kashima, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

FIZIK Terra Aidon X5 145mm

Front brake

Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pad

Brake lever

Sram Code R, tool-free reach adjust

Rims

e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Race Face Aeffect ebike, 165mm

Chain Ring

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1210, 11-50T, 12s

Derailleur hanger

Mondraker M068

Weight

26,8kg

Display

Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX Cruise (25Km/h) Smart System

Battery

Bosch Powertube 750Wh
