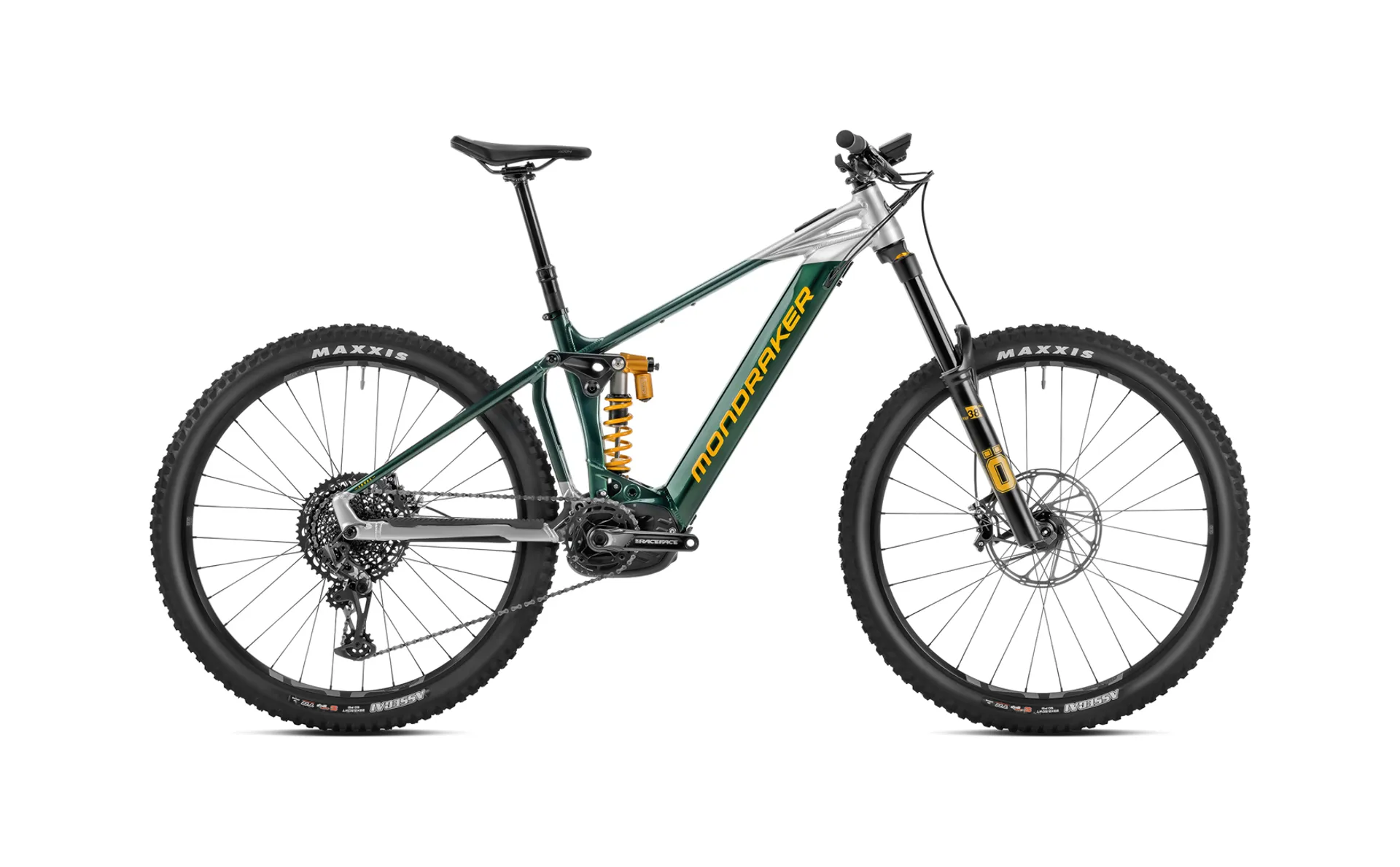

2023 Mondraker Level XR Electric Bike in Green and Silver

Season:2023

Brand:Mondraker

Code:23LEVELXR

For 2023 we’ve launched a new model in the LEVEL range, the XR. With a 180mm fork up front followed by 170mm travel at the rear, the LEVEL XR is the most radical super enduro eMTB animal in the family. The Bosch Performance Line CX G4 Smart System motor’s comes paired with a KIOX 300 display, the new 3-button Mini Remote control (with wireless Bluetooth operation) and the new System Controller integrated into the top tube. The 750Wh battery simply lets you to enjoy more range, whatever your plan of attack. The LEVEL XR comes as stock with Öhlins suspension of course, an RFX38 M.2 fork and a TTX22M coil shock. SRAM’s X01 Eagle/GX Eagle drivetrain puts the power down, e*thirteen’s E*Spec Plus wheels keep things rolling and SRAM’s Code RSC brakes stop you on a dime with ONOFF Components providing the cockpit and contact points.
Technical Information

Frame

Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

Sizes


S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushing

Shock settings

C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs

Fork

Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

ONOFF Krypton FG 30mm, CNC, 31.8mm barbor

Handlebar

ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barborer

Grips

ONOFF Desert, 1lock-on, 135m

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

FIZIK Terra Aidon X5 145m

Front brake

Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

Rims

e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Race Face Aeffect ebike, 165m

Chain Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram GX Eagle, 12s, Powerlock

Rear derrailleur

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram XG-1275, 10-52T, 12s

Derailleur hanger

Mondraker M068

Weight

25,8 kg

Display

Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX Cruise (25Km/h) Smart System

Battery

Bosch Powertube 750Wh
