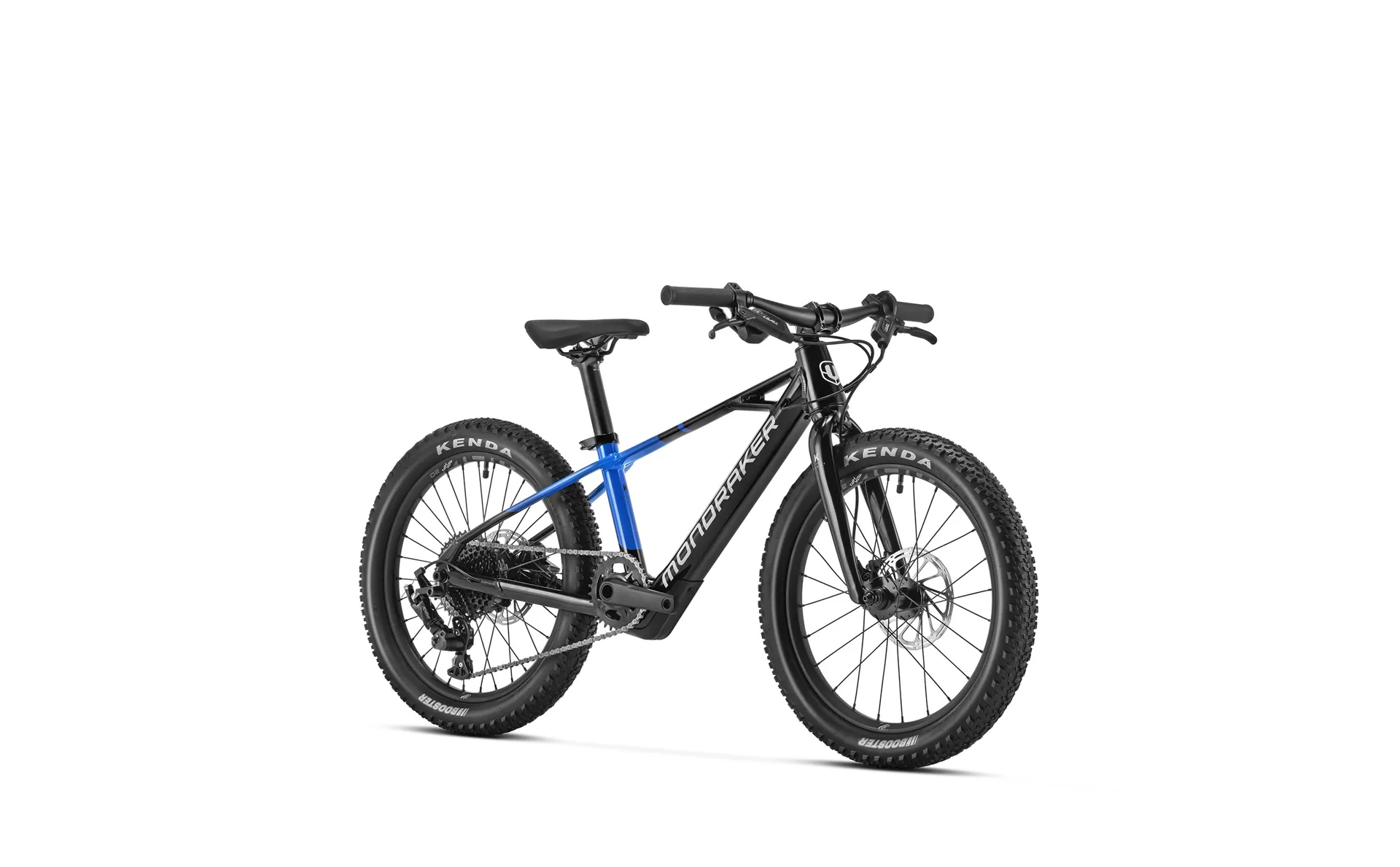

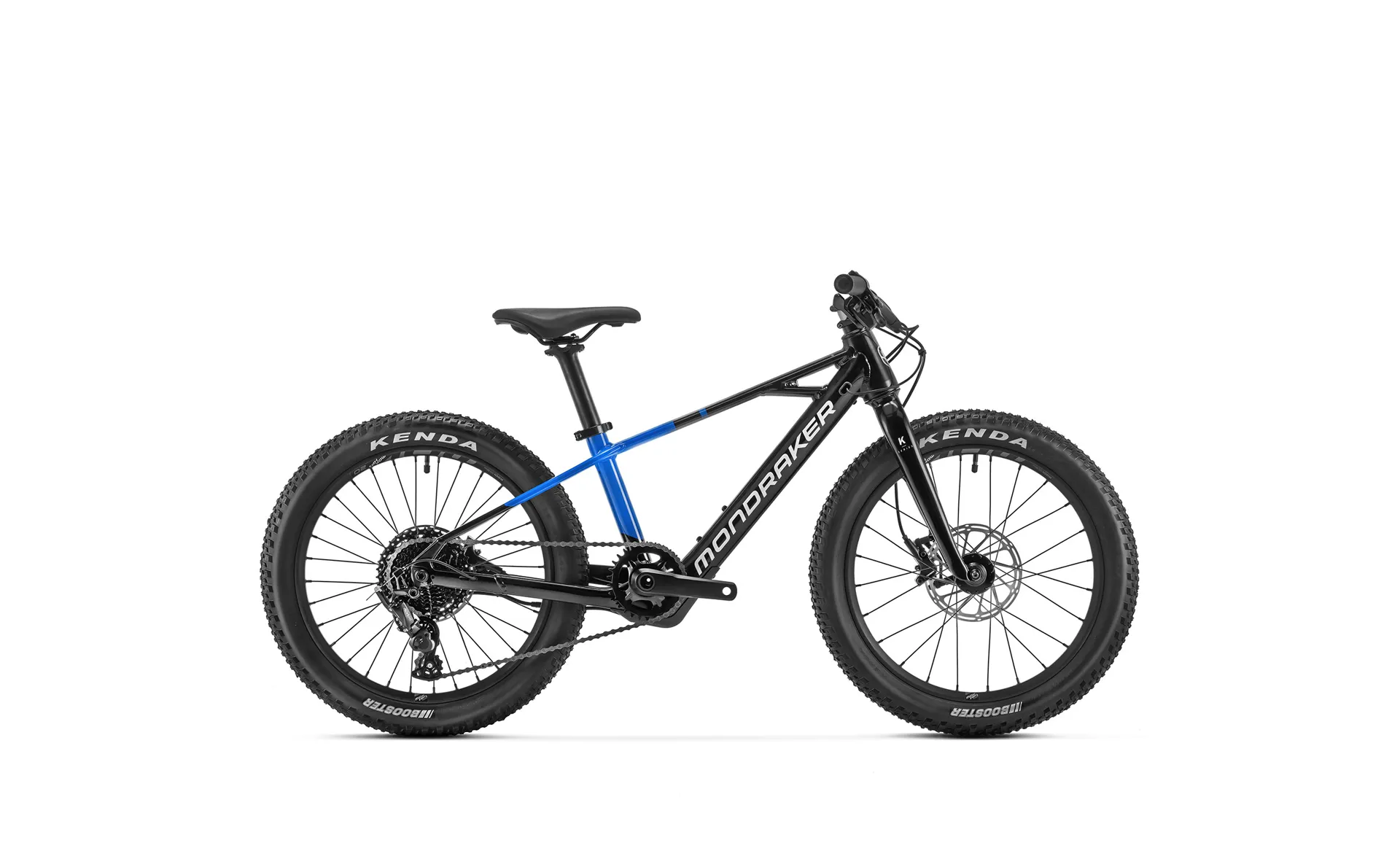

2024 Mondraker Play 20 Electric Kids Bike in Black

£1,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2024 Mondraker Play 20 Electric Kids Bike in Black

Season:2024

Brand:Mondraker

Code:010.24237

PLAY - THE TIME HAS COME

For our smallest riders to feel the Mondraker vibe. The time has come for your whole family to form a part of the Mondraker family.

NEW DESIGN, MORE FUN
All the new Plays come witha totally new frame,and as with the Trick and F-Trick they’ve inherited the aesthetics and design languageof our new adult NEAT and F-PODIUM ranges.

The new frame design, incorporating straight lines, minimalistic tube profiles, and thecharacteristic Mondraker headtube-toptube-downtube interface,lends itself to having the battery very low down in the downtube thus lowering the centre of gravity andincreasing stability and agility.That in turn has allowed us to tweak our Forward Geometry, improving the position of the rider and providing greater control when faced with tricky terrain, and increasing rider confidence overall. All three models use framesbuilt with our Alloy Stealth Evo.

POWER AND CONTROL WITH THE MAHLE X35
At Mondraker we’re firm believers in theMahle X35motor and battery system. It comes witha 250Wh removable internal battery,40Nm of torque and a 25km/h maximum assisted speed, and all three modes of assistance can be tunedvia Mahle’s MySmartbike app.

SPECCED OUT TO BE A TRAIL KILLER
The new Play range comes withall-new frames, new geometry, and new specsthat give the bikes a very definite identity. All three models come with 2.4” tyres (the same as the adult ranges) to improve grip, comfort and confidence, and to allow you to run lower tyre pressures with all the advantages that brings. The redesigned Forward Geometry allows for 30mm stems which give snappy but stable handling, and the frames come with HHG internal cable guiding and areprepared to run dropper posts if you feel the need.

Technical Information
  • Frame
    Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
  • Fork
    MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount
  • Drive Unit
    Mahle Ebikemotion X35 Drive Unit
  • Battery
    Mahle Ebikemotion Internal 250Wh
  • Display
    Mahle Ebikemotion
  • Rear Derailleur
    Microshift Advent, M6195S super short cage, 9 speed
  • Shifter
    Microshift Advent SL M6195R, 9 speed
  • Brakes
    SRAM Level, 2 piece calliper, Centerline 160mm IS 6 bolts one-piece rotors
  • Crankset
    Samox DM, 28T steel, 114mm
  • Chainring
    28T, steel
  • Chain
    Sram PC951, 9 speed, Powerlock
  • Cassette
    Microshift Advent, 11-38T, 9 speed
  • Handlebar
    MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 31.8mm barbore
  • Stem
    Onoff Sulfur FG, 30mm, 0º, 6061 forged alloy, 31.8mm
  • Seatpost
    MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm x 250mm
  • Seat
    SDG Fly Jr
  • Rims
    MDK-HP1 20 TLR, 25mm internal, tubeless ready, 32H
  • Front Hub
    K8QF, 9x100mm, IS 6 bolts
  • Rear Hub
    Mahle X35, HG freehub
  • Tyres
    Kenda Booster, 20x2.4", single compound, 30TPI, wire bead
