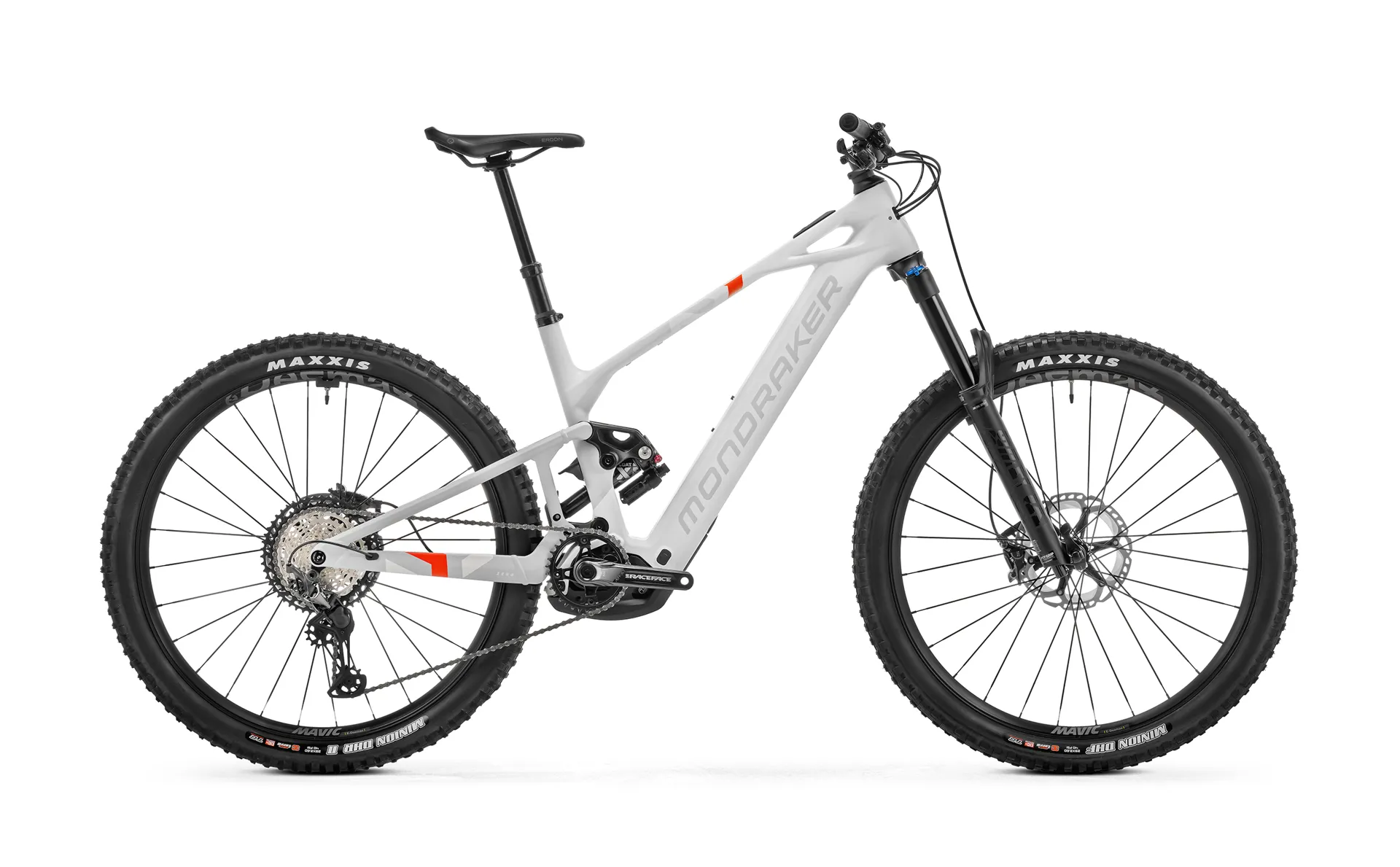

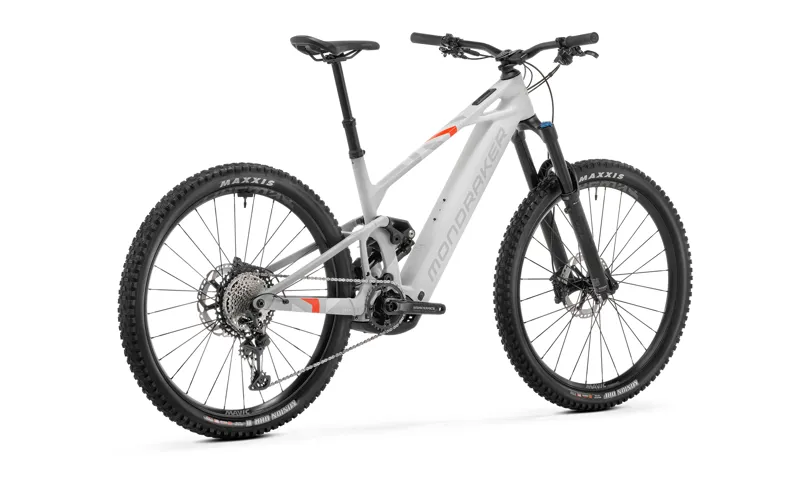

2025 Mondraker Crafty Carbon R Electric Mountain Bike - Bunker Grey/Red

£6,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

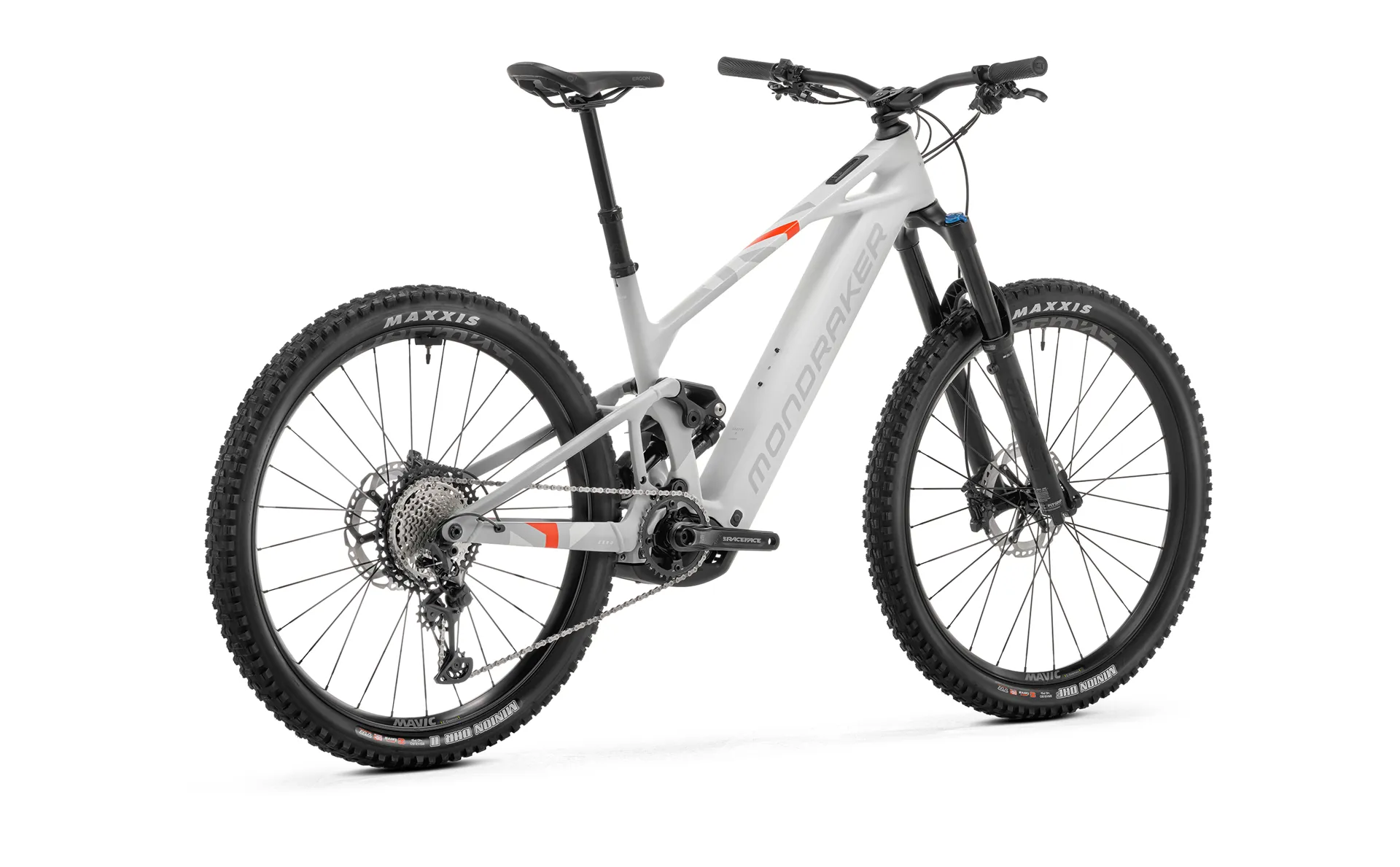

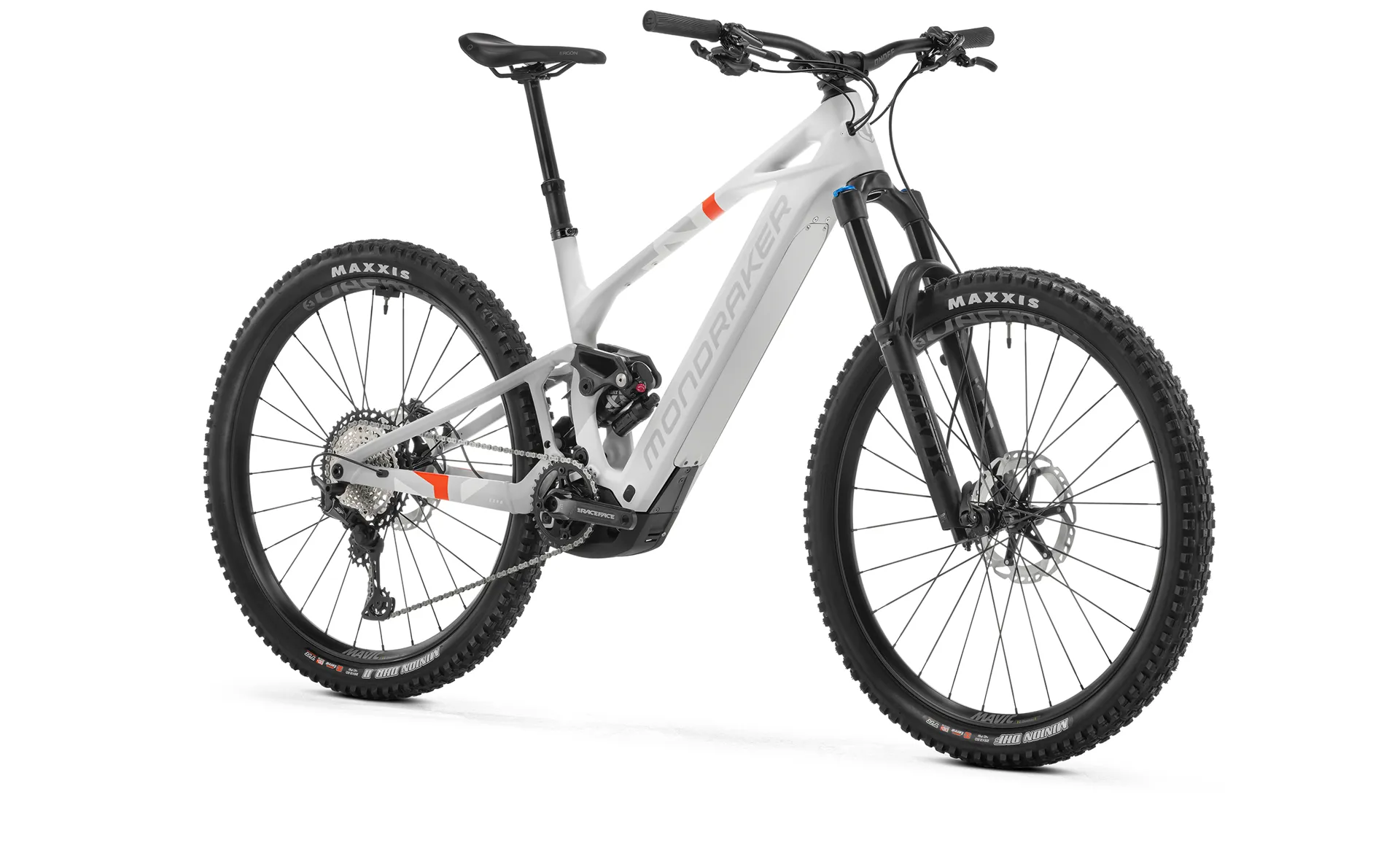

2025 Mondraker Crafty Carbon R Electric Mountain Bike - Bunker Grey/Red

Season:2025

Brand:Mondraker

Code:010.2533-2


The game is over, welcome to a new generation of authentic e-Enduro. It’s time to present the latest evolution of the Crafty Carbon. It’s time to renew the most successful e-Bike Mondraker has ever made to make it more CRAFTY than ever before. We’ve kept the unmistakable identity, increased the performance, the agility and the pedalling assistance. Fitted with Bosch’s revamped CX Performance motor together with the new, more efficient, lighter and removable 800Wh and 600Wh batteries.

FIVE BUILDS: EVERY TYPE OF RIDER
At Mondraker we take a lot of pride in our builds and the new Crafty Carbon is no exception. Five builds with carbon fibre frames, with just the R and RR builds using a rear triangle made from Stealth Alloy aluminium.You’ll be taking your Crafty Carbon to the limit, so we’ve specced forks with beefy 38mm stanchions and 2.6” tyres on all builds except the RR SL which takes a 36mm fork and 2.5” tyres instead,focused on performance. All builds come with 4-piston brakes and 200/203mm discs and dropper posts from 140mm to 210mm depending on frame size.

MORE SIZES: MORE ADJUSTABLE
We’ve even optimised the size ranges. The new Crafty Carbon comes with optimised kinematics on the Zero Suspension System as well as the Forward Geometry, and with the addition of an intermediate ML size there are now 5 sizes to choose from. With this additional size, we’ve made the whole range more adaptable to an even wider range of body types so that there’s always a bike that’s right for you, a bike that offers a near-perfect fit. We’ve also optimised the swingarm length depending on frame size to keep things proportional and maintain that Mondraker ‘feeling’ throughout, regardless of frame size.
2025 Mondraker Crafty frame sizing

PERFECT COMBO: CRAFTY CARBON + NEW BOSCH CX
Our reference e-Bike would hardly be complete without the latest evolution of the Bosch CX motor. 100g lighter and smaller thanks to a more refined design architecture, the motor offers the same 85Nm of torque and 600W max power as before but with far better power delivery and control compared to previous models. Quieter overall when pedalling, mechanical rattles when riding downhill have also been eliminated so that you can ride faster and more discreetly than ever before.
2025 Mondraker crafty with Bosch CX motor

Technical Information

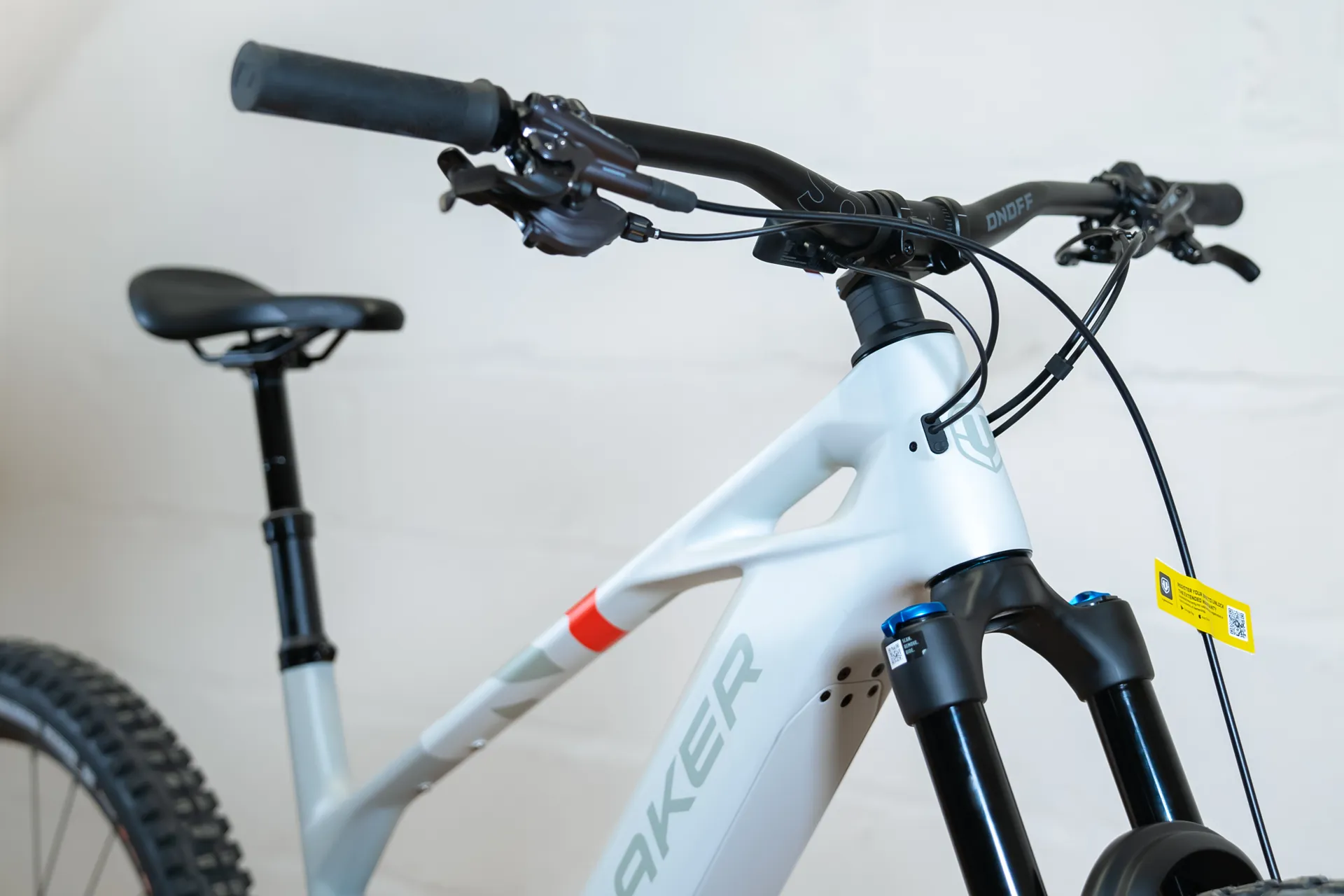

  • Frame

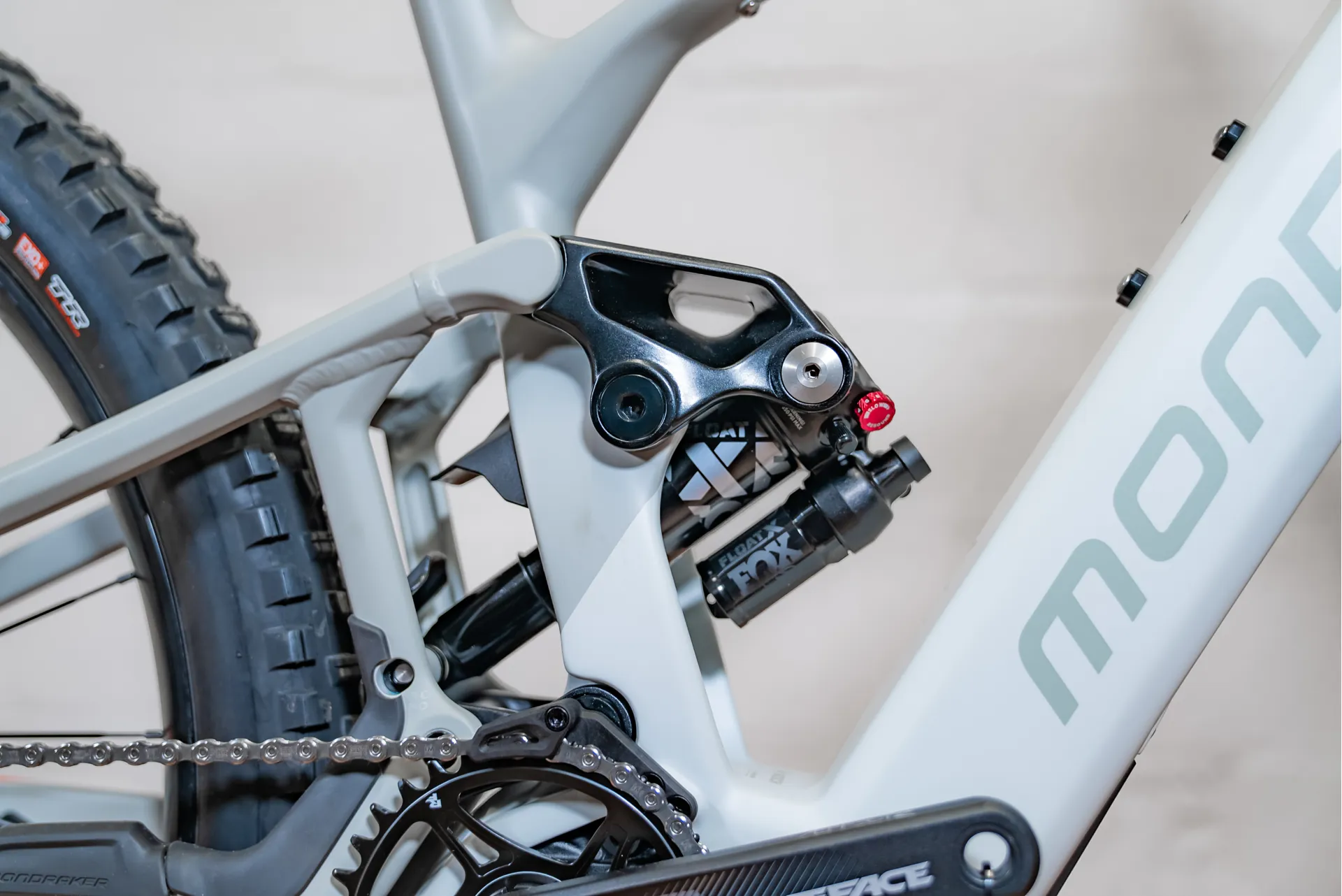

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles
  • Shock
    Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

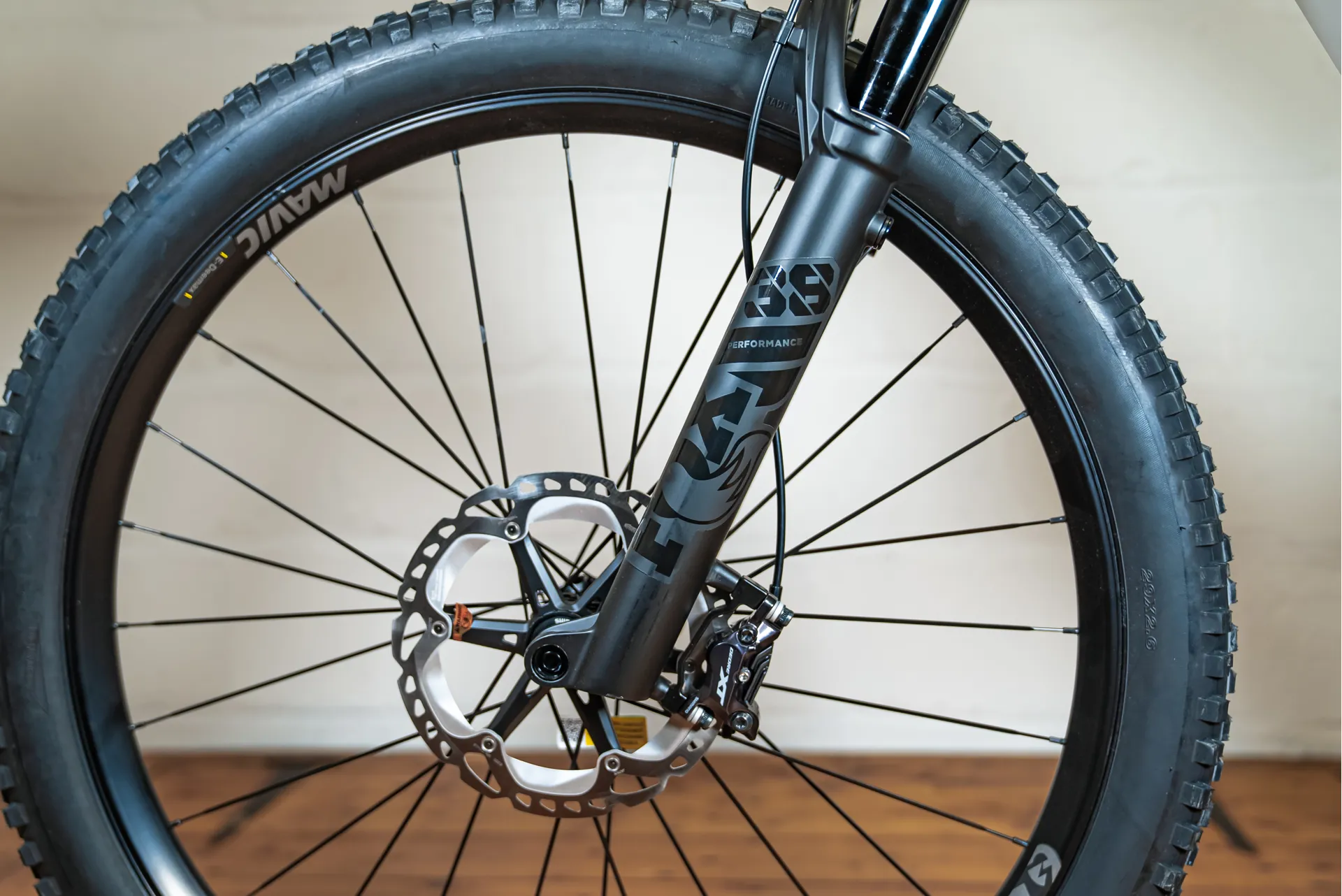

  • Fork
    Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

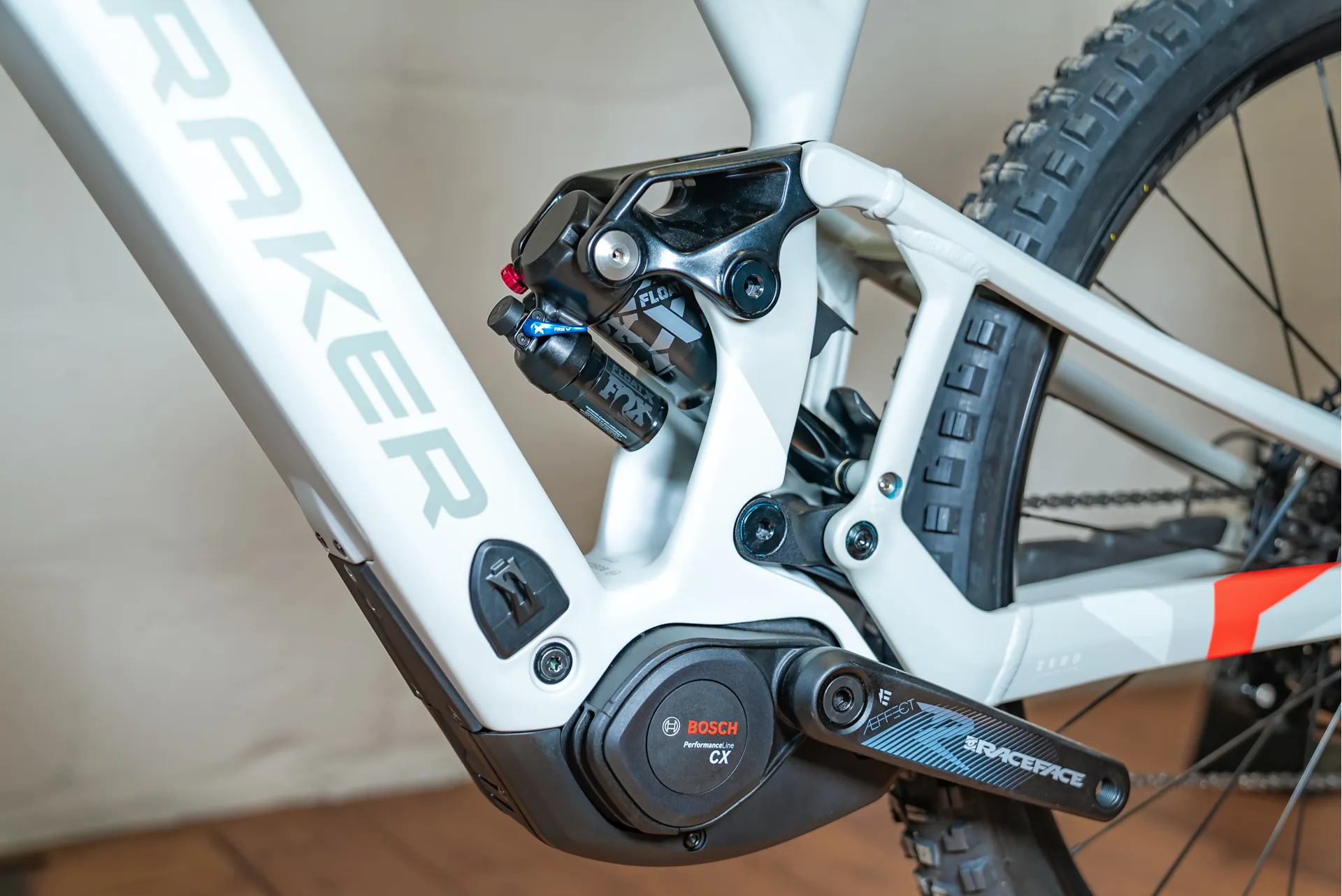

  • Motor
    Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
  • Battery
    Bosch Powertube 800Wh

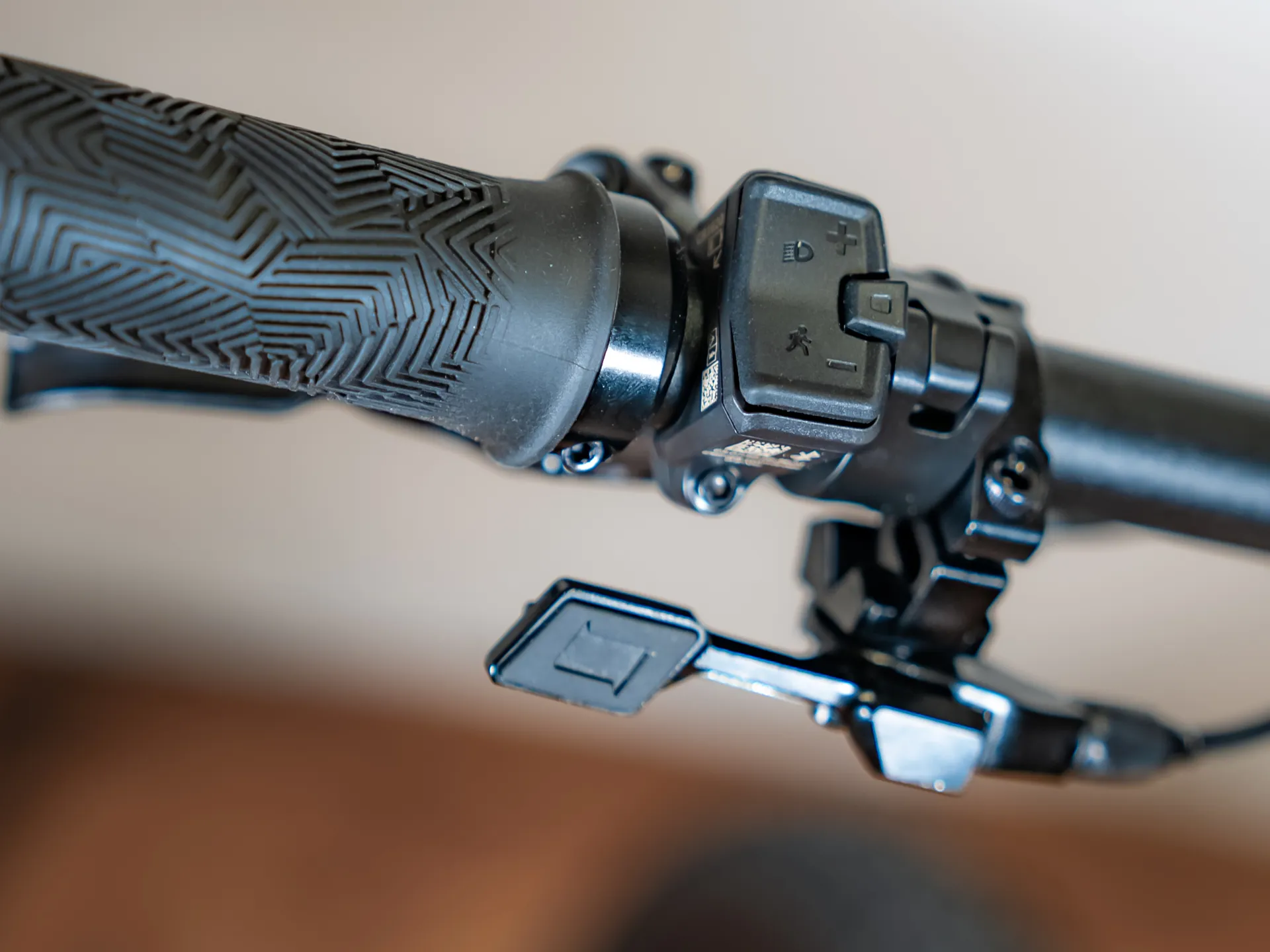

  • Display

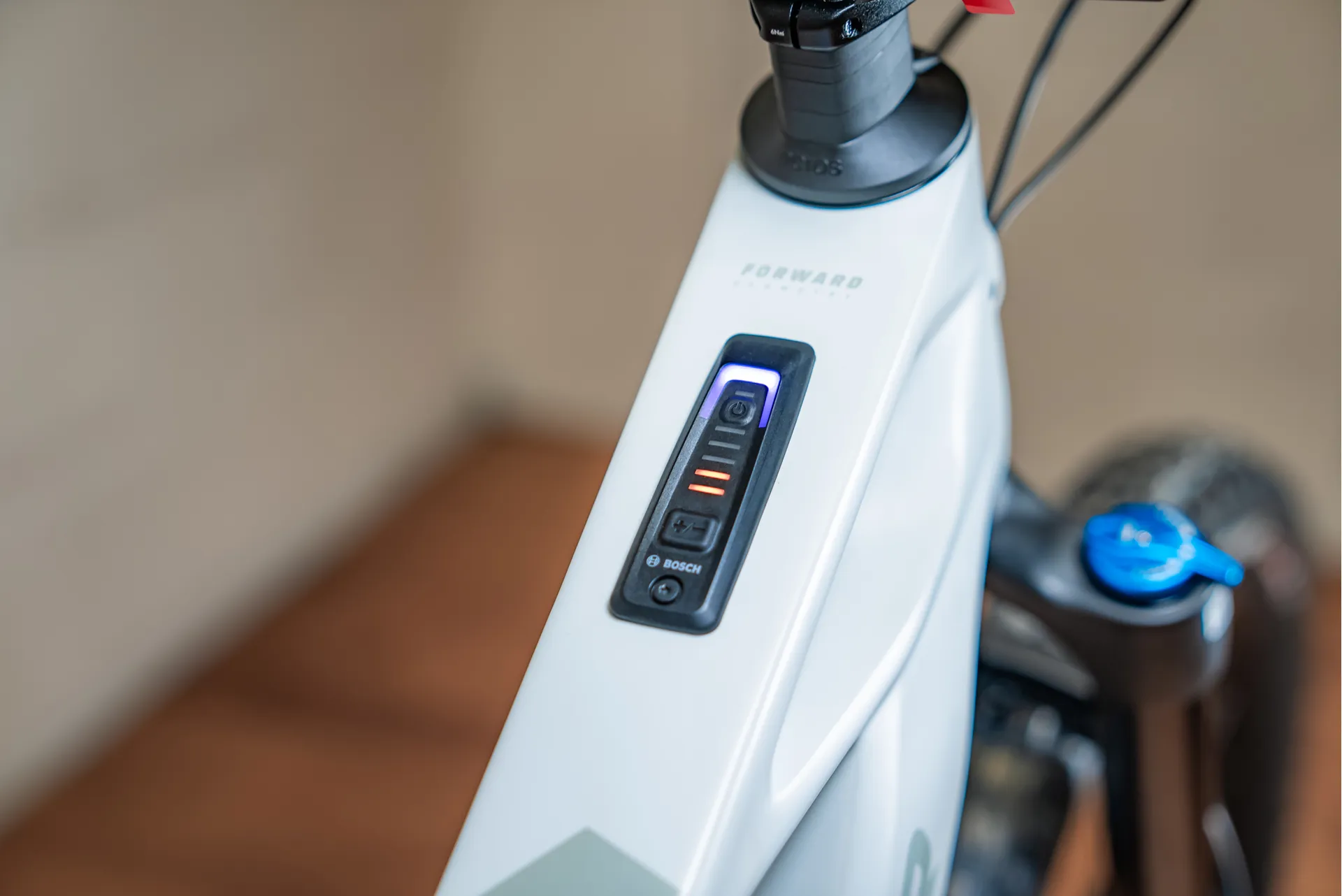

    Purion 400 / Bosch Mini Remote / Bosch System Controller
  • Headset

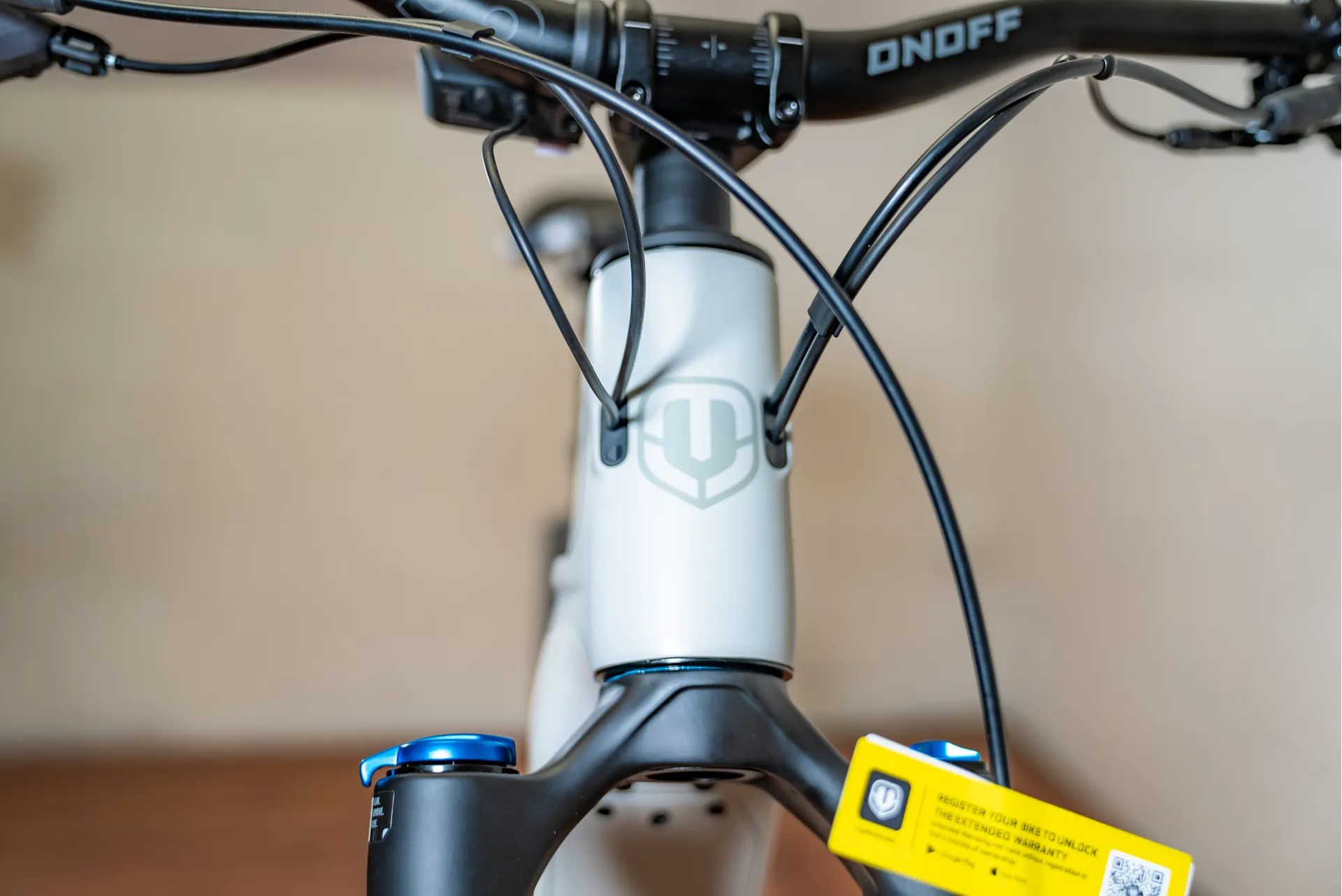

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
  • Chainring
    RaceFace, 34T, steel, direct mount
  • Crank
    RaceFace Aeffect-R ebike, 160mm
  • Shifters
    Shimano XT M8100, Rapid Fire Plus, 12 Speed
  • Cassette
    Shimano XT M8100, 10-51T Hyperglide+, 12 Speed
  • Rear derailleur
    Shimano XT M8100, SGS, Shadow+, 12 Speed
  • Chain
    Shimano XT 8100, 12 Speed
  • Handlebar
    OnOff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore

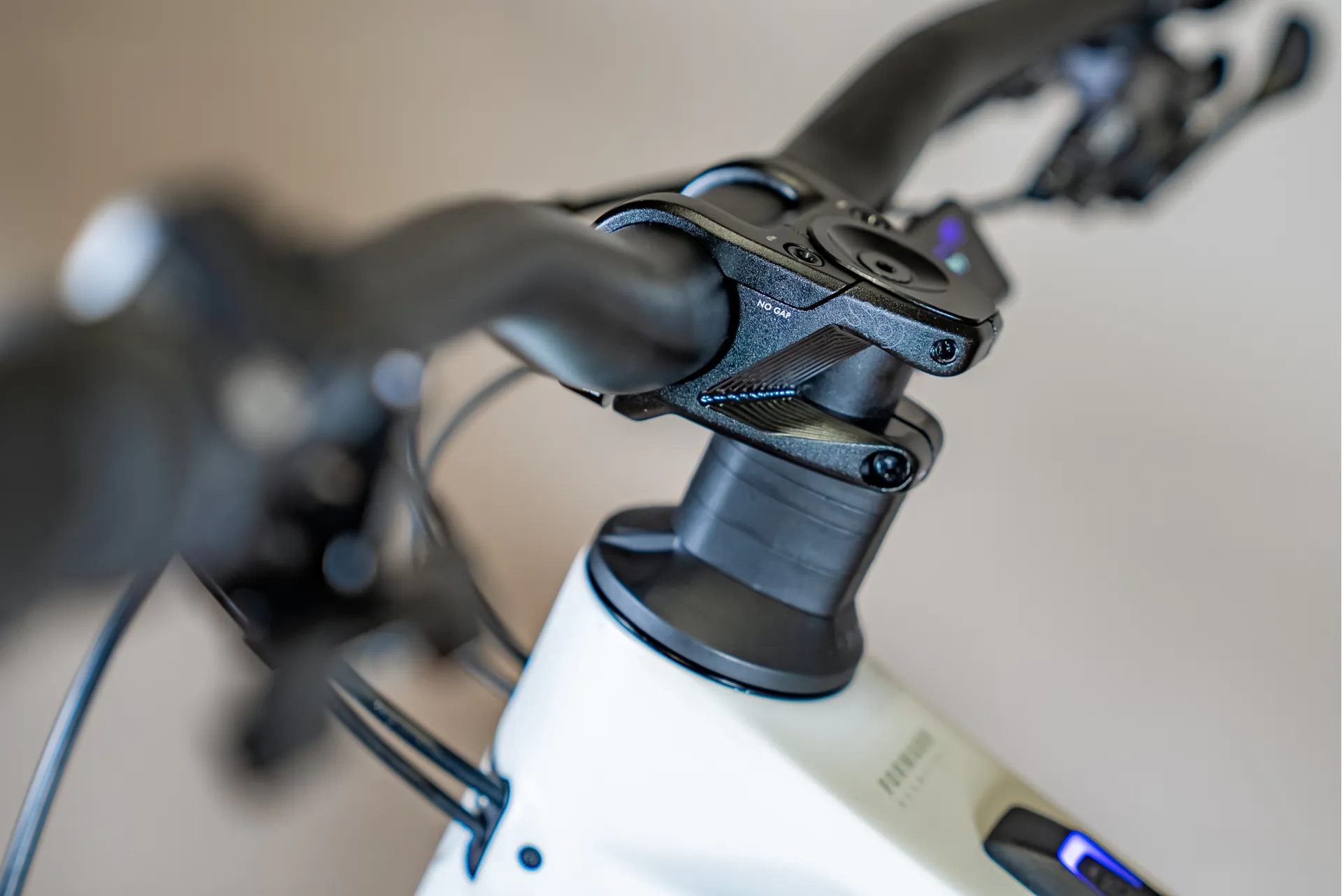

  • Stem
    OnOff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
  • Brakes
    Shimano XT M8120, 4 piston caliper / MT800 ICE-Tech 203mm CenterLock rotor
  • Wheels
    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes, Front Boost 15x110mm, Rear Boost 12x148mm
  • Front Tyre
    Maxxis Minion DHF, 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  • Rear Tyre
    Maxxis Minion DHR II, 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  • Seatpost
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
  • Saddle
    Ergon SM-10
  • Grips
    OnOff Forest, CNC lock-on, 135mm
Sizing Information
2025 mondraker Crafty geometry
