Mondraker

2026 Mondraker Crafty Carbon RR eMTB in Admiral Blue

£7,699.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

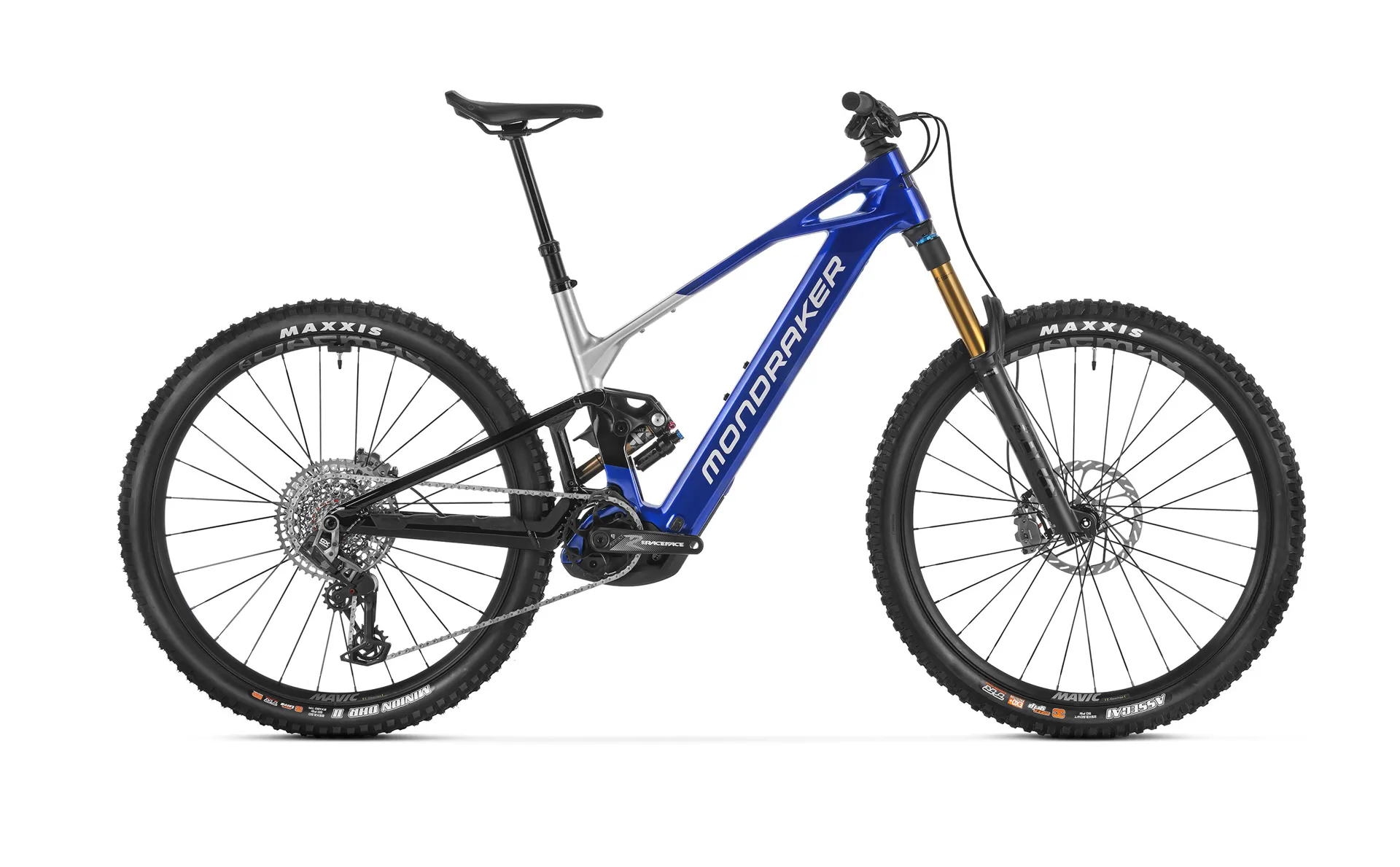

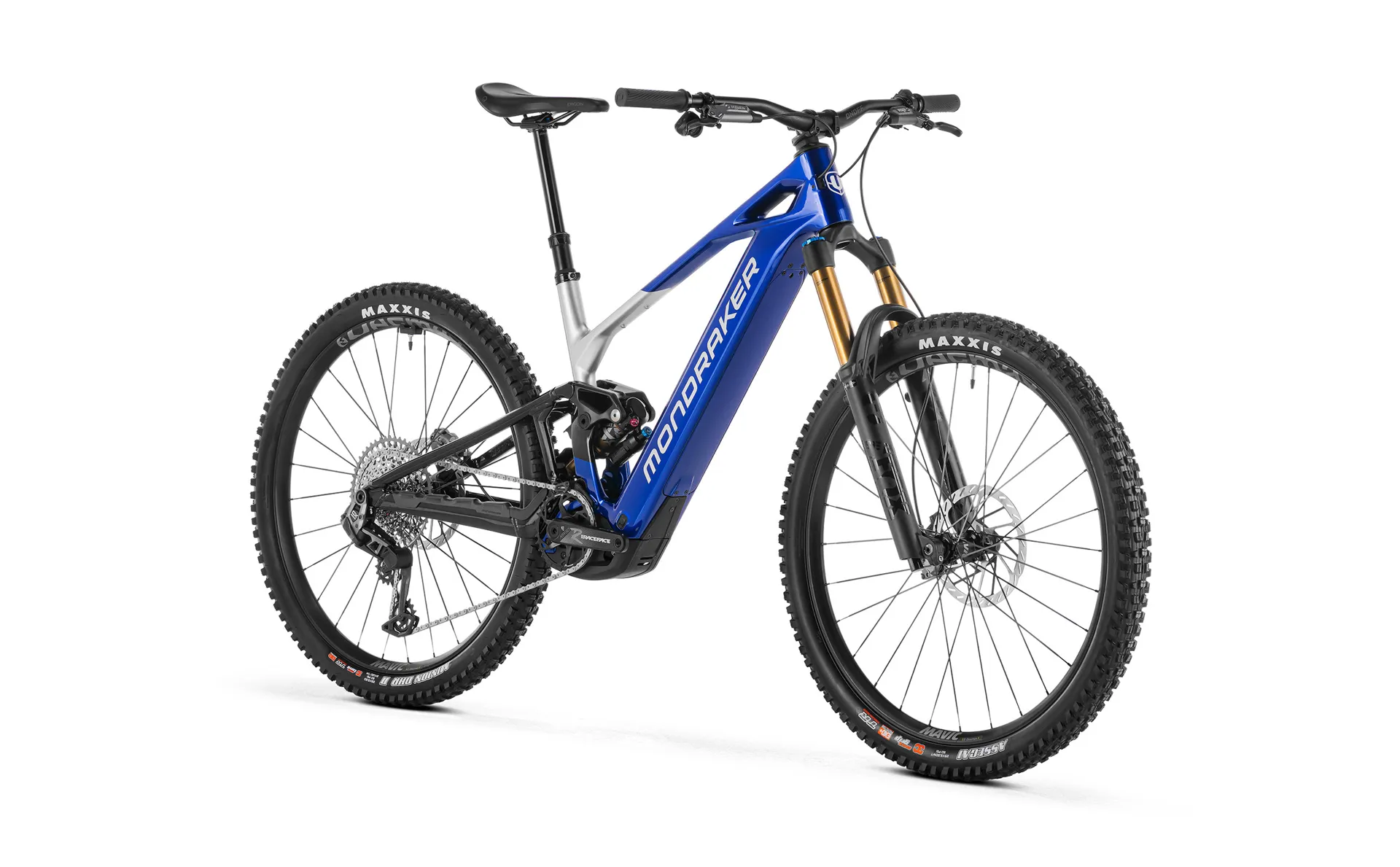

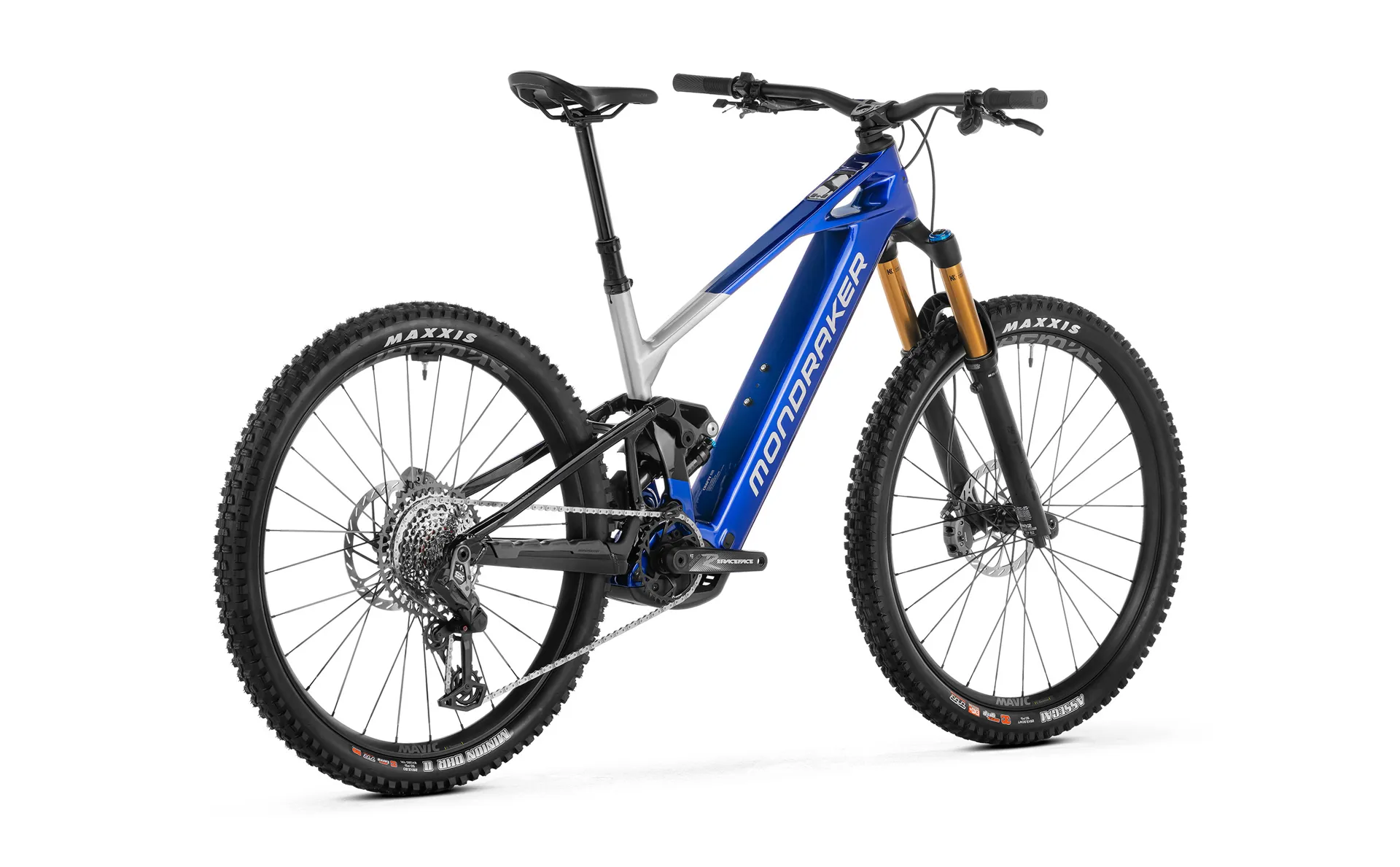

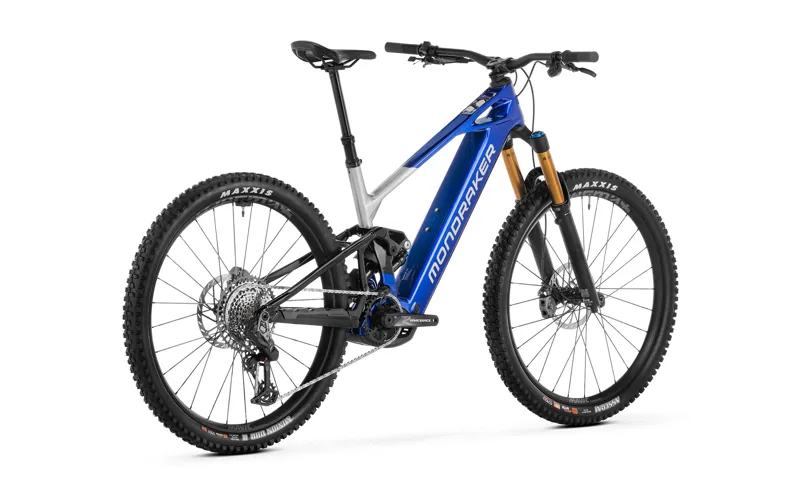

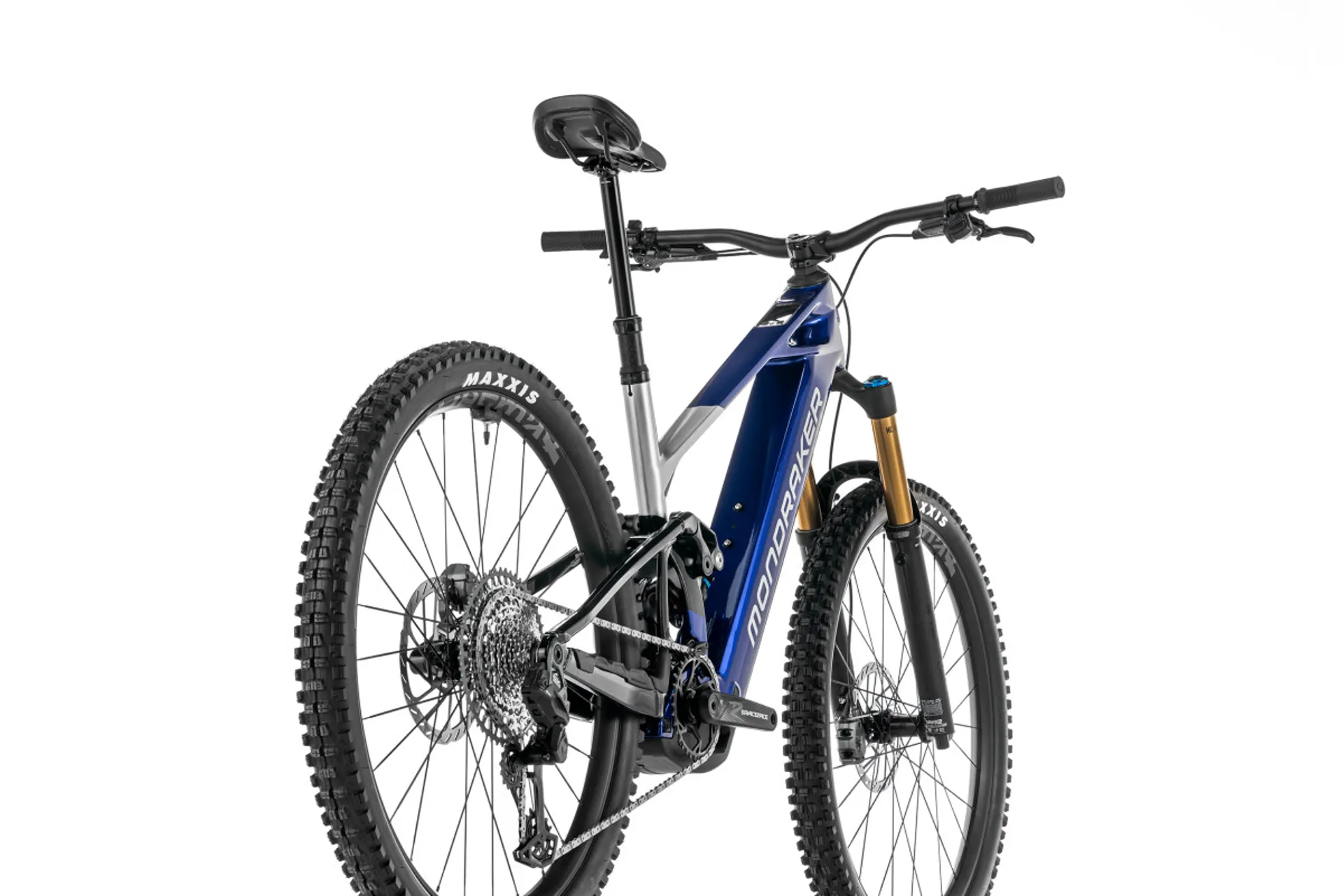

2026 Mondraker Crafty Carbon RR eMTB in Admiral Blue

Season:2026

Brand:Mondraker

Code:010.2630

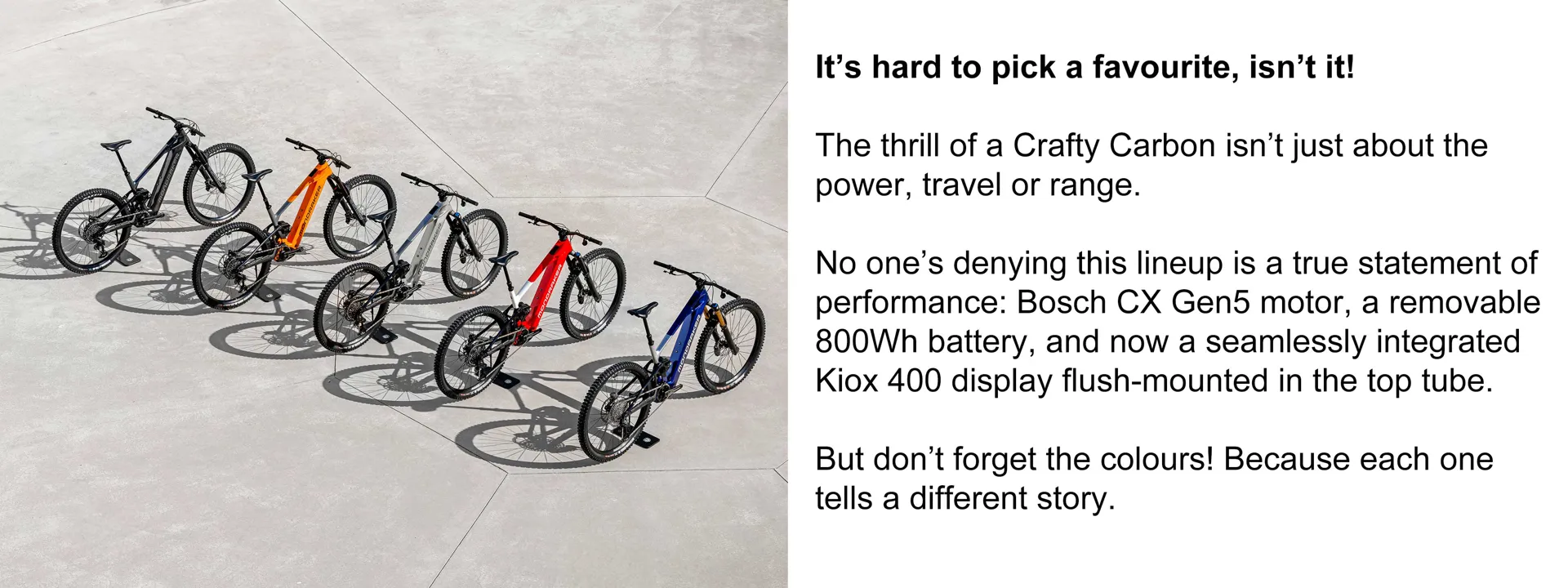

crafty carbon colour
crafty carbon new
crafty carbon cx

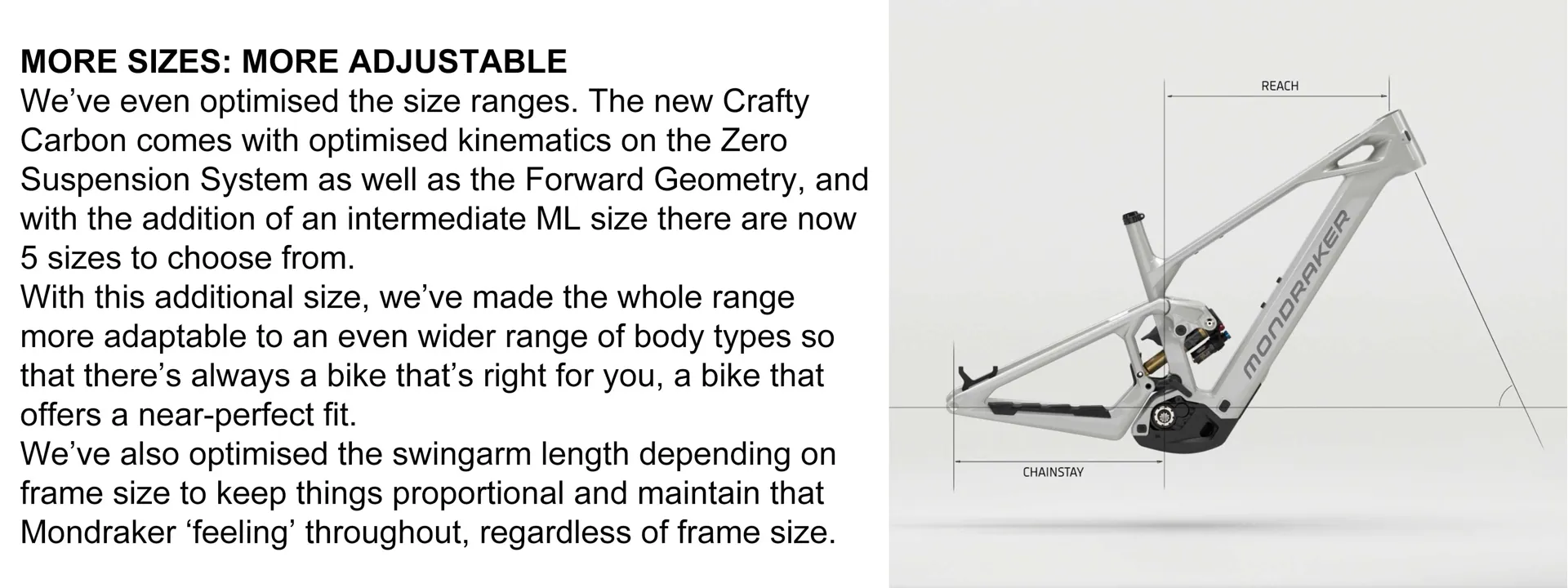

crafty carbon size
crafty carbon geometry
Technical Information

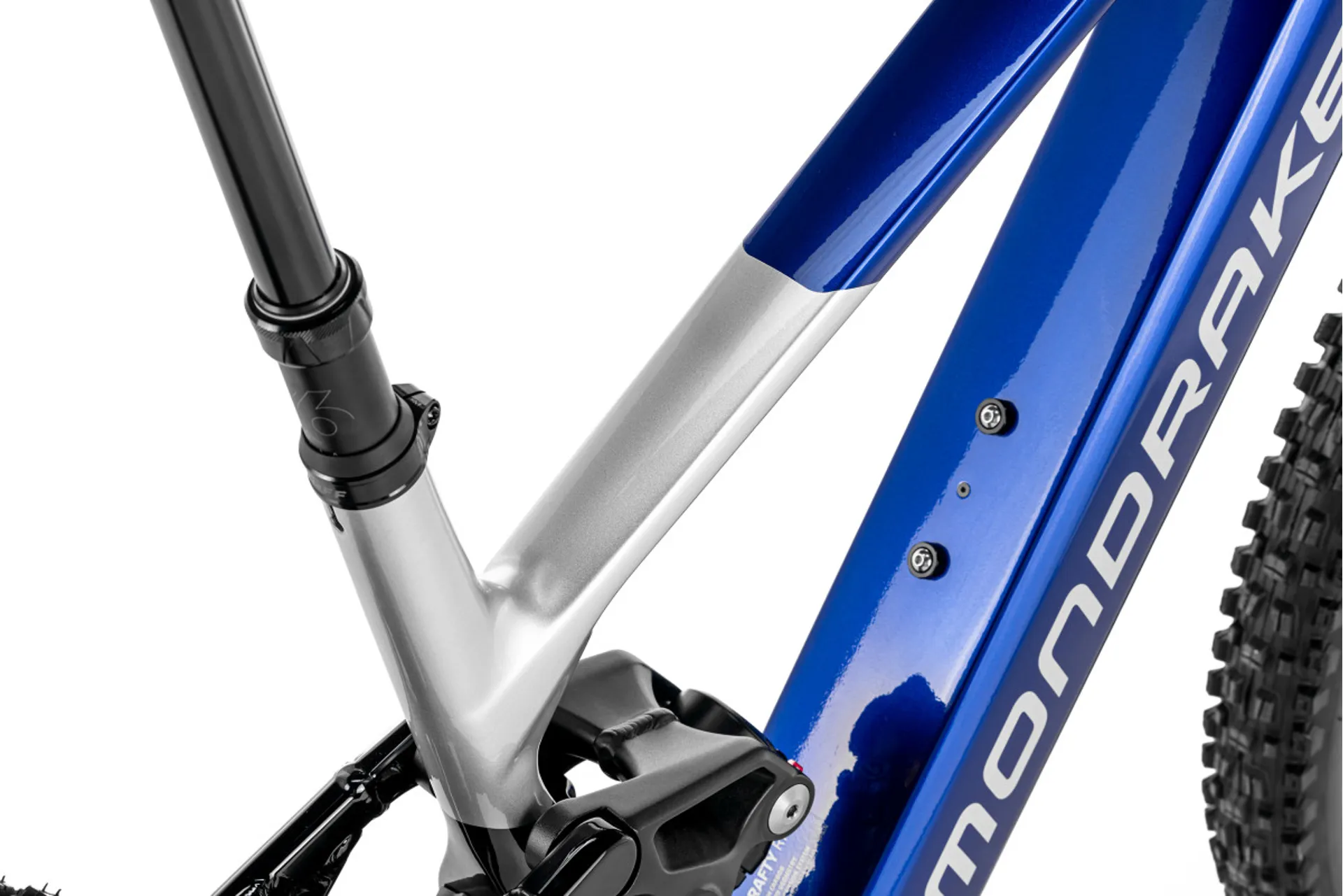

  • Frame

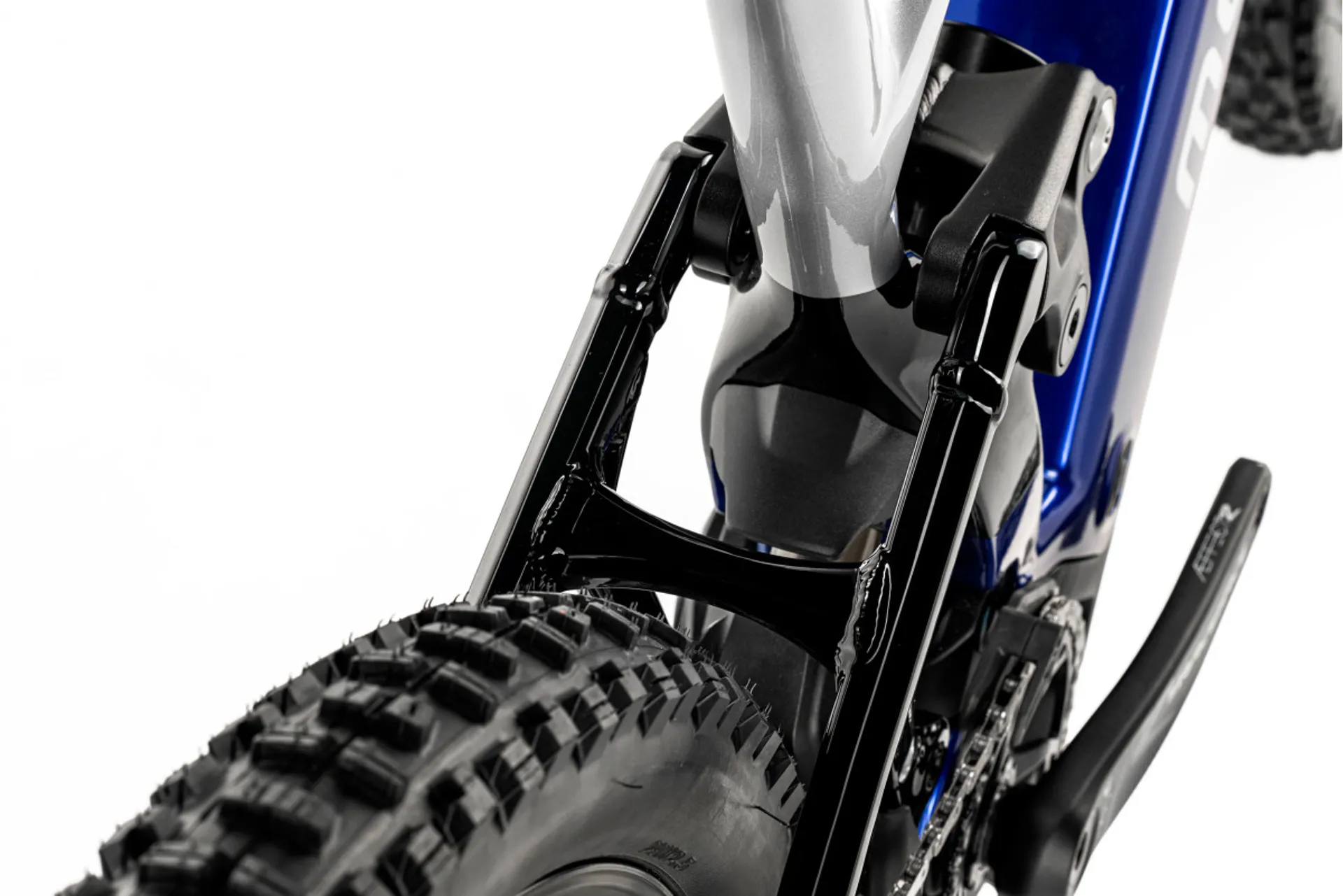

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
  • Shock
    Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
  • Fork
    Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
  • Motor
    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
  • Battery
    Bosch Powertube 800Wh
  • Display
    Kiox 400C / Bosch Mini Remote
  • Headset
    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
  • Chainring
    SRAM Eagle 34T T-Type, direct mount, steel, CL55
  • Crank
    RaceFace Aeffect-R ebike, 160mm
  • Shifters
    SRAM Eagle AXS Pod MMX, 12 speed
  • Cassette
    SRAM XS-1275, 10-52T, T-Type, 12 Speed
  • Rear derailleur
    SRAM GX Eagle AXS, T-Type, 12 Speed
  • Chain
    SRAM GX Eagle T-Type, 12 speed, Powerlock

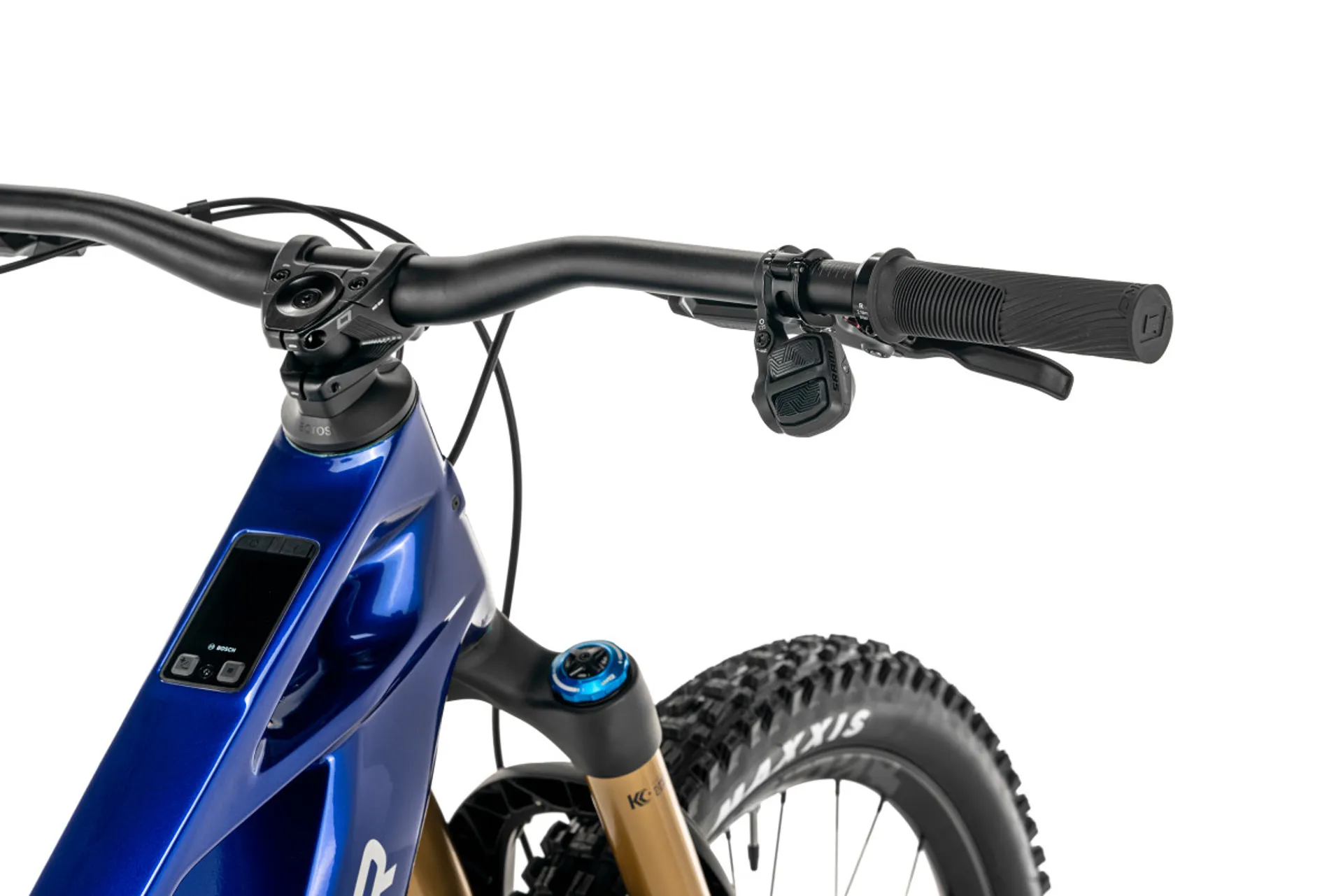

  • Handlebar
    OnOff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
  • Stem
    OnOff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
  • Brakes
    SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor
  • Wheels
    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes, Front Boost 15x110mm, Rear Boost 12x148mm
  • Front Tyre
    Maxxis Assegai, 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
  • Rear Tyre
    Maxxis Minion DHR II, 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
  • Seatpost
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
  • Saddle
    Ergon SM-10
  • Grips
    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
