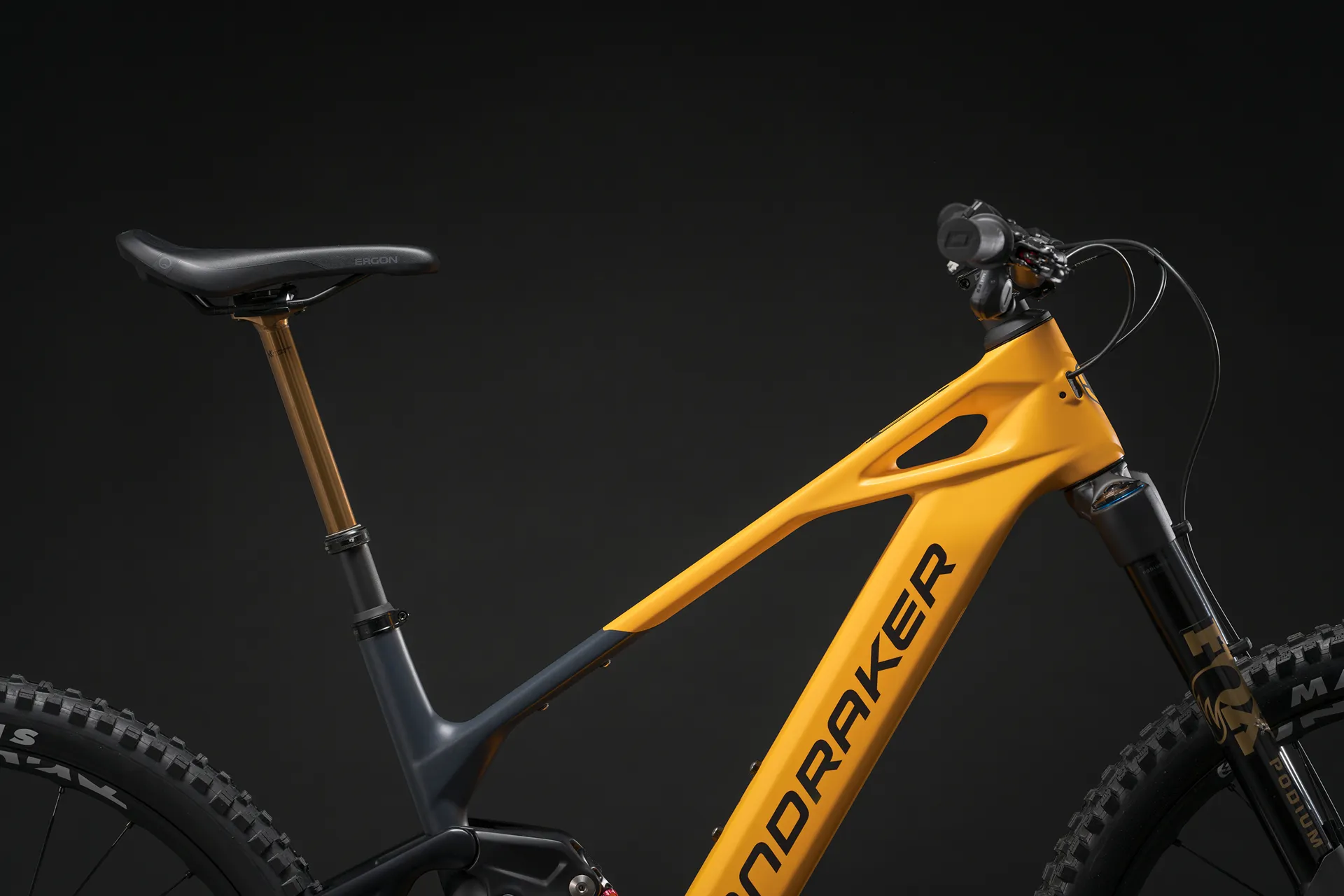

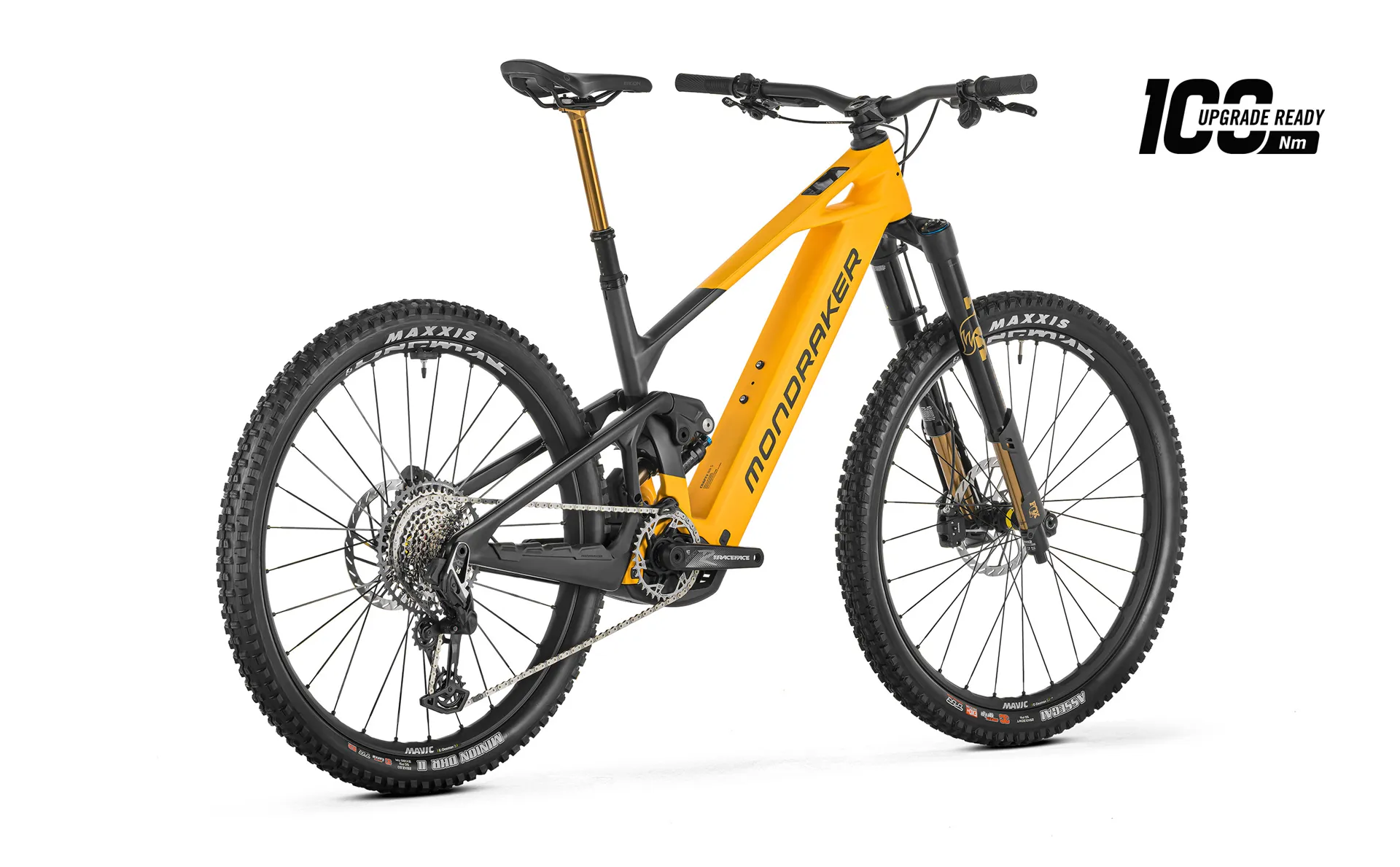

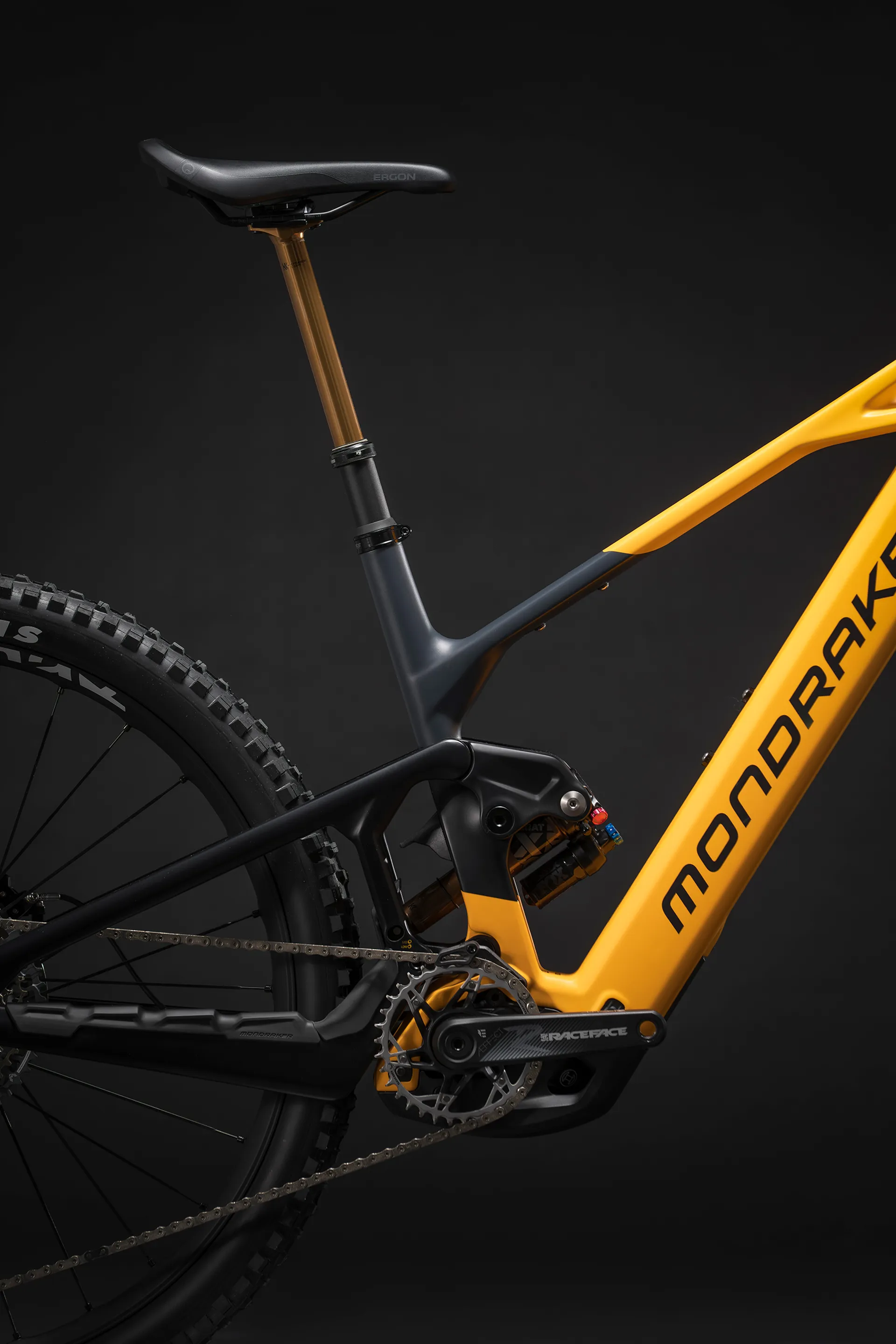

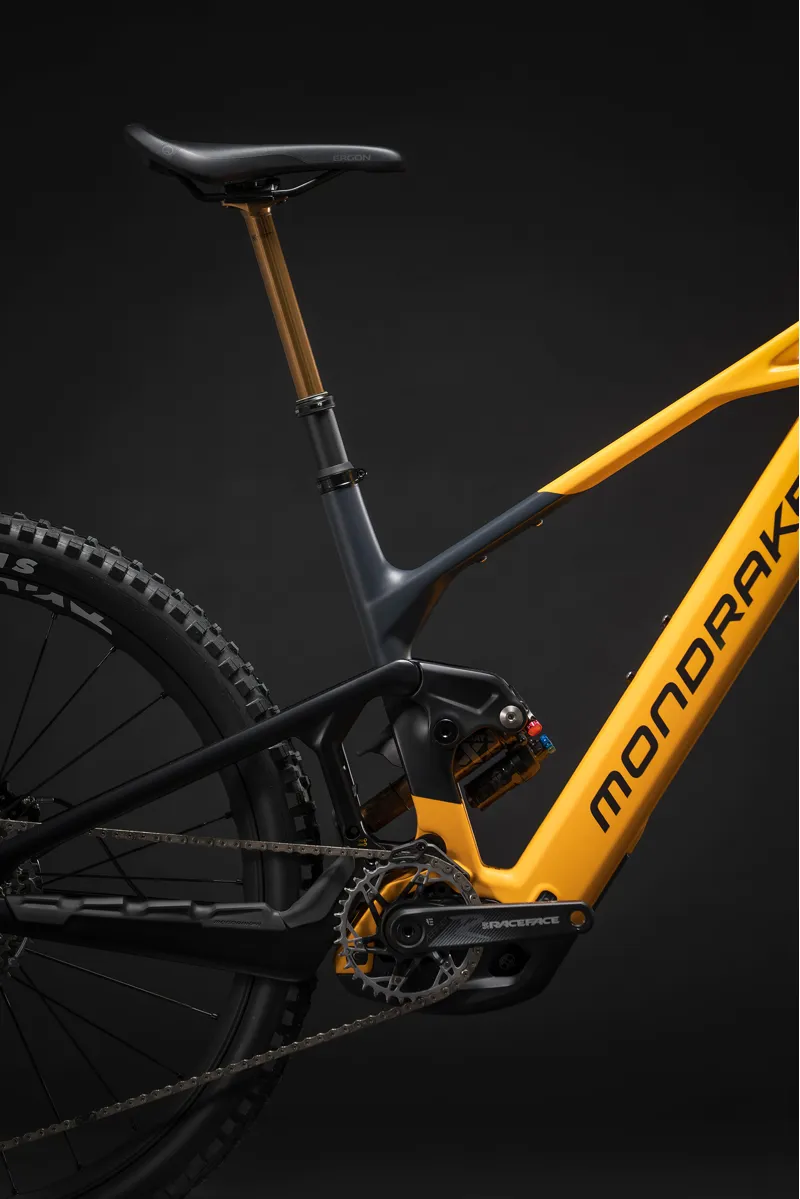

Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Shock
Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Fork
Fox Podium 29 Float GRIPX2 Factory, Kashima, 160mm travel, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Motor

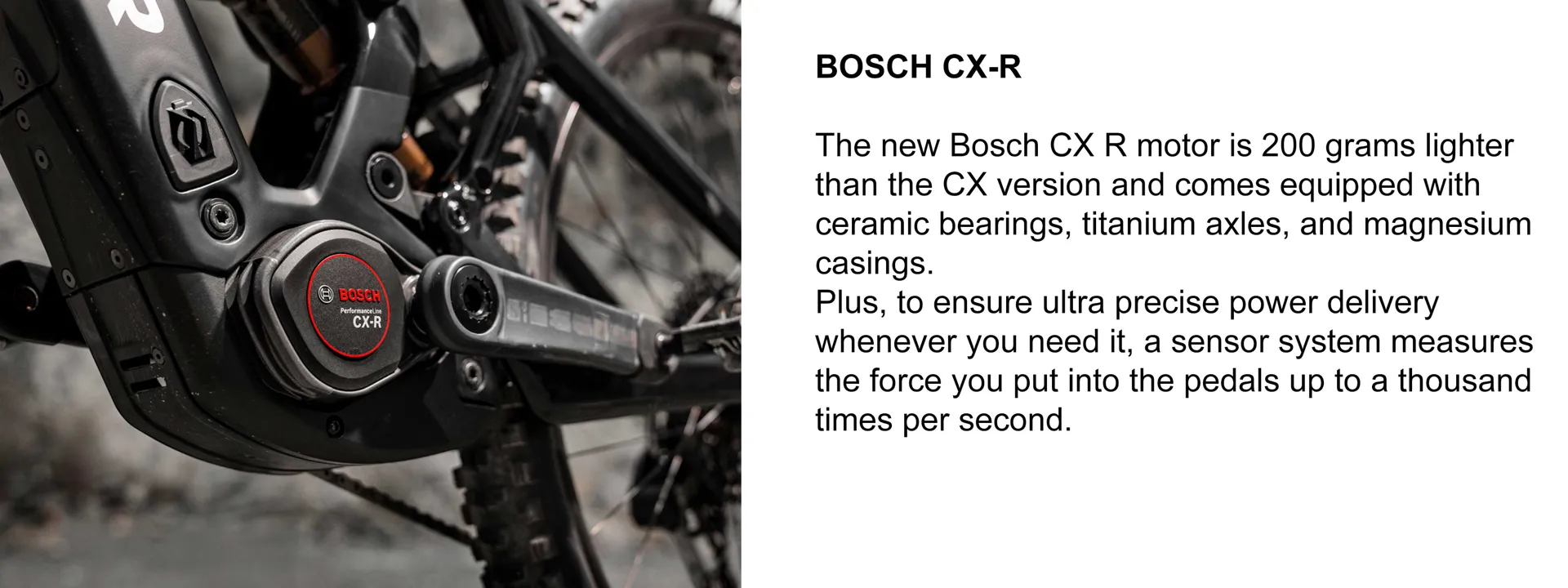

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
Display

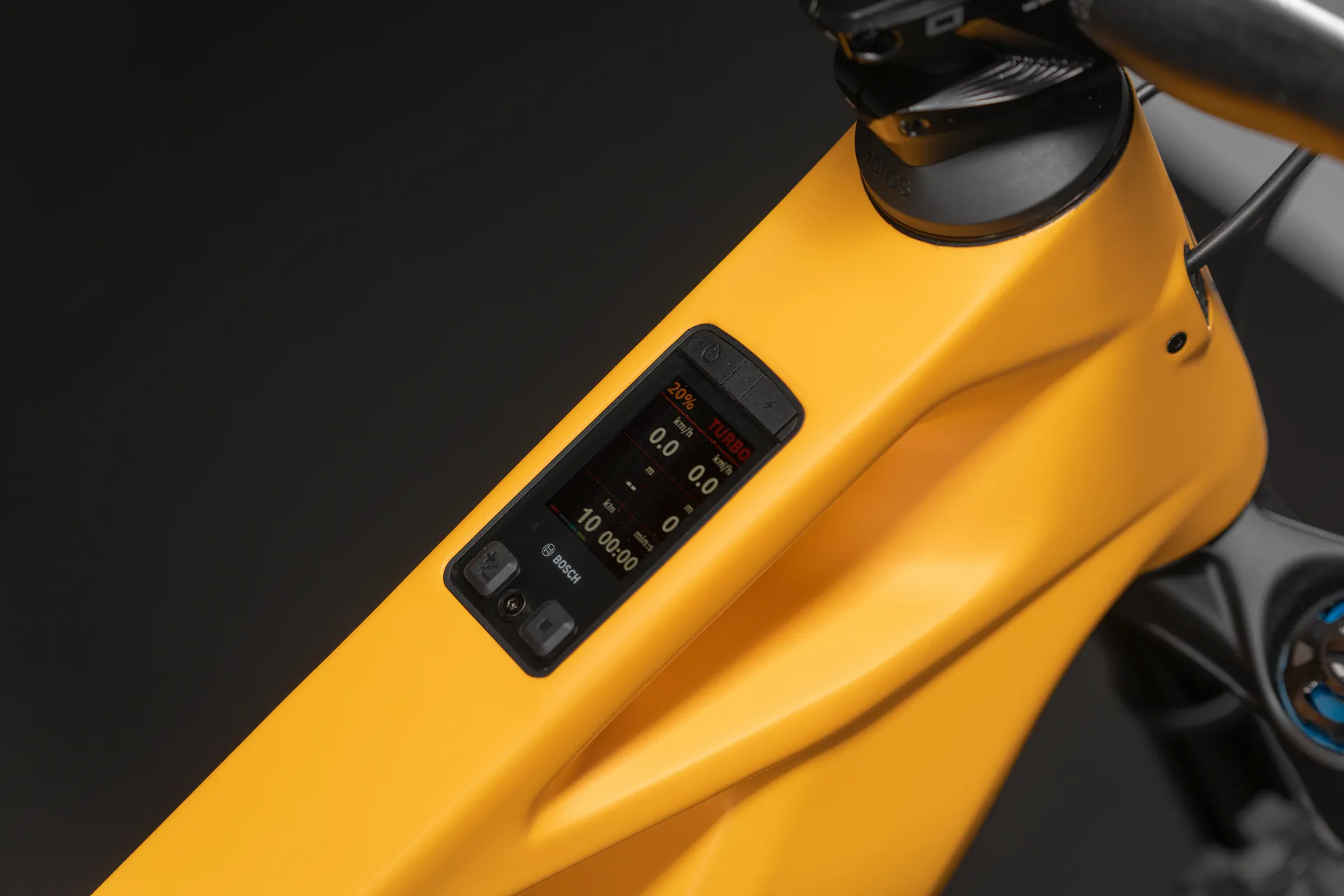

Kiox 400C / Bosch Mini Remote
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Chainring
SRAM XX Eagle T-Type, 34T, direct mount, steel, CL55
Crank
RaceFace Aeffect-R ebike, 160mm
Shifters
SRAM Eagle AXS Pod MMX, 12 speed
Cassette
SRAM XS-1275, 10-52T, T-Type, 12 Speed
Rear derailleur
SRAM X0 Eagle AXS, T-Type, 12 Speed
Chain
SRAM GX Eagle T-Type, 12 speed, Powerlock
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Brakes
SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor
Wheels
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless ready, 28 spokes, Front Boost 20x110mm, Rear Boost 12x148mm
Front Tyre
Maxxis Assegai, 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear Tyre
Maxxis Minion DHR II, 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Seatpost
Fox Transfer Factory Kashima internal, adjustable travel, 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, M/L-L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle
Ergon SM-10
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
