Frame
Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
Shock
RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Fork
RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload

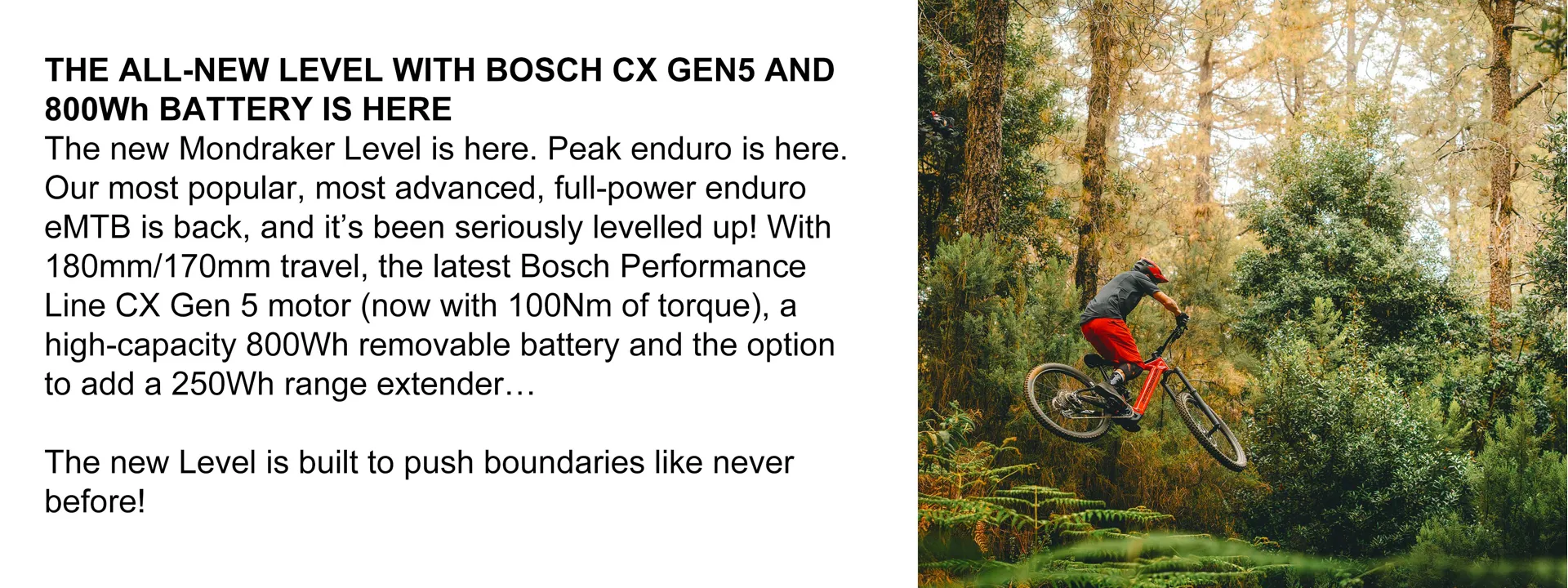

Motor
Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)

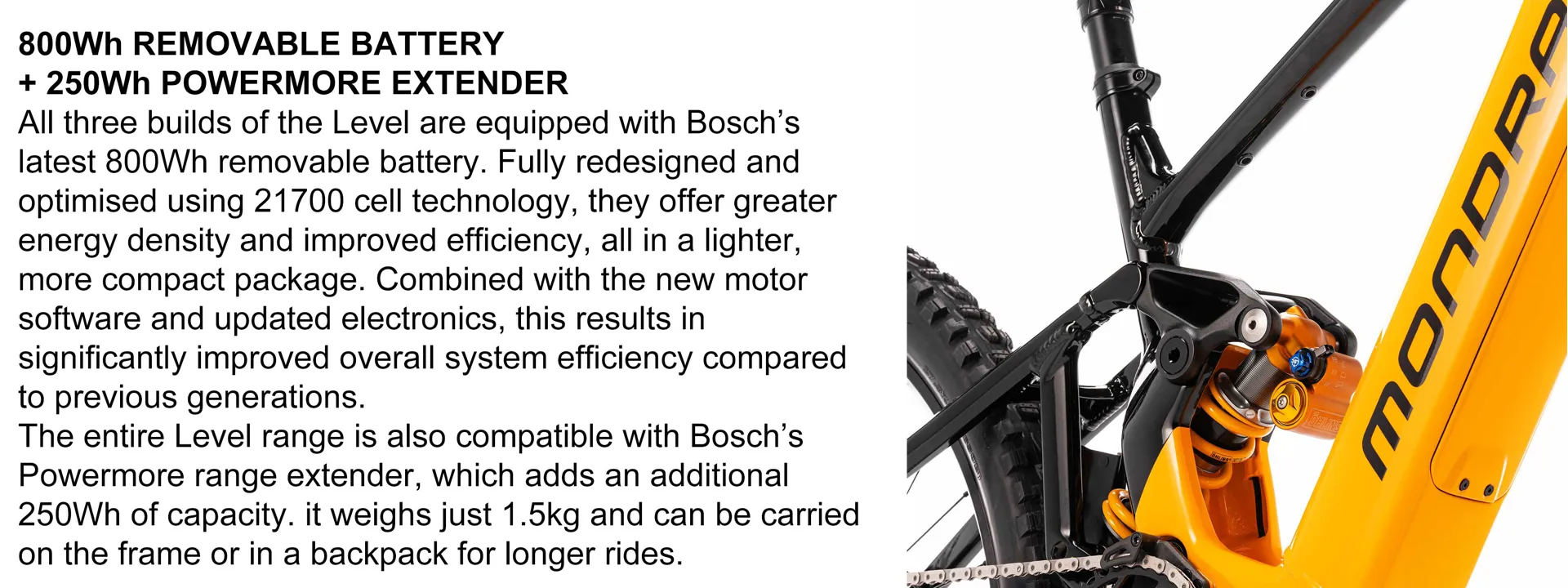

Battery
Bosch Powertube 800Wh

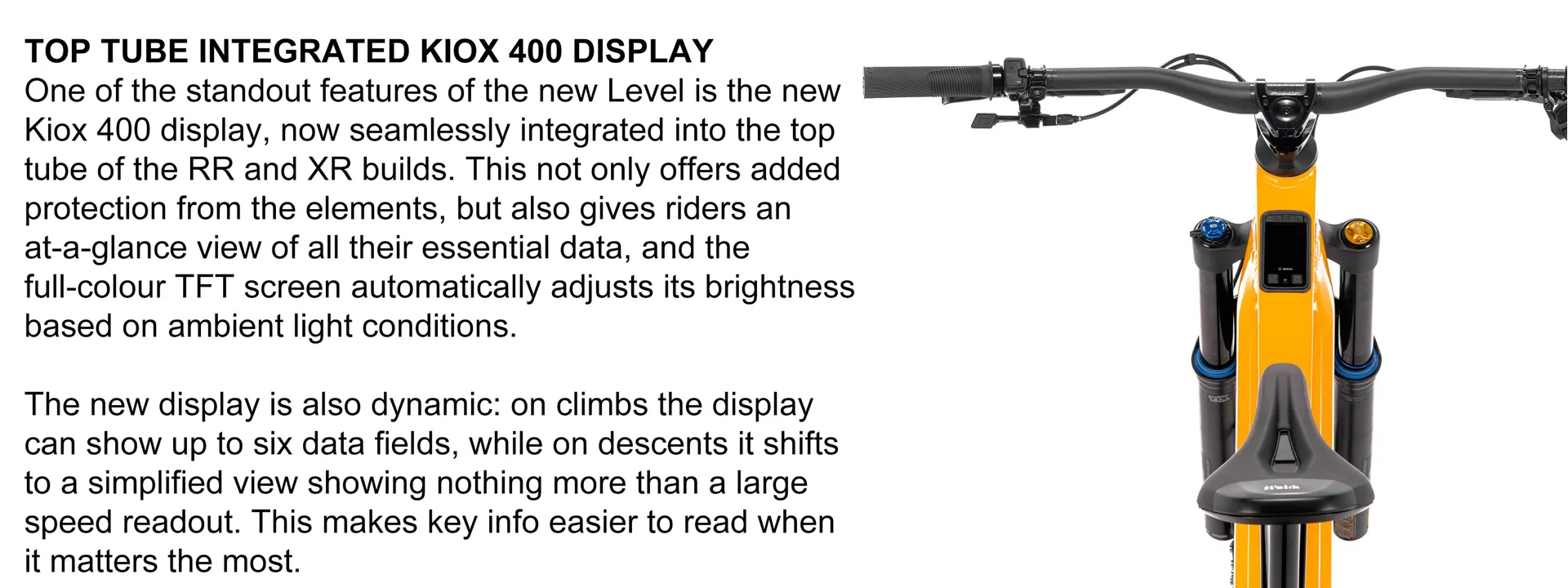

Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Headset
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings
Chainring
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Crank
RaceFace Aeffect ebike, 160mm
Shifters
SRAM 90 Eagle, 12s, T-Type Actuation, single click
Cassette
SRAM XS-1270, 10-52T, T-Type, 12 Speed
Rear derailleur
SRAM 90 Eagle T-Type, 12 Speed
Chain
SRAM 70 Eagle T-Type, 12 Speed, Powerlock
Handlebar
OnOff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore

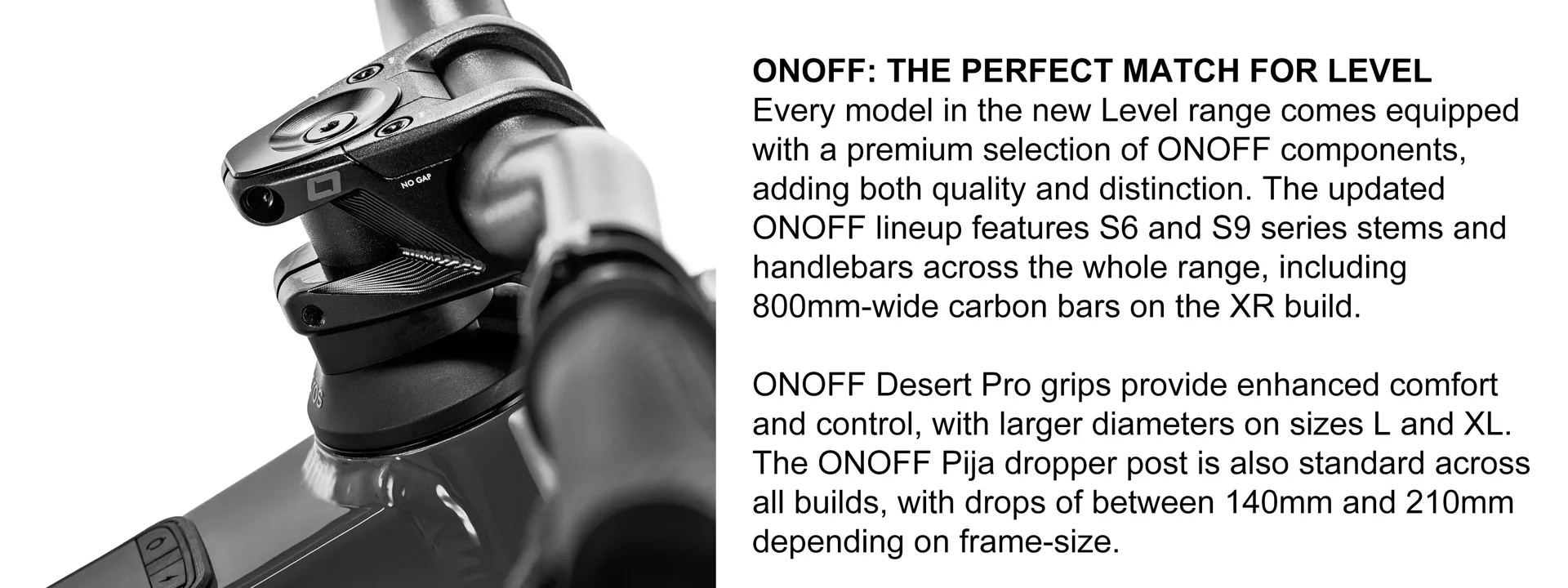

Stem
OnOff S6 30mm 0º, 6061 forged alloy, 31.8mm barbore
Brakes
SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mmF/200mmR IS 6 bolts one-piece rotor
Wheels
e*thirteen Grappler Core, Hookless 6069 Welded Aluminum
30mm internal width, tubeless ready, 28H, 29" 15x110mm front, 27.5" 12x148mm rear
Front Tyre
Maxxis Assegai, 29x2.6," WT, tubeless ready, 3C MAXX GRIP, DD, DH casing, 60x2TPI, folding bead
Rear Tyre
Maxxis Minion DHR II, 27’5x2.6, WT, tubeless ready, 3C MaxxTerra, DD, 2x120TPI, folding bead
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
Saddle
FIZIK Terra Aidon X5, 145mm
Grips
Onoff Desert Pro, CNC lock-on, 135mm
