Frame
Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

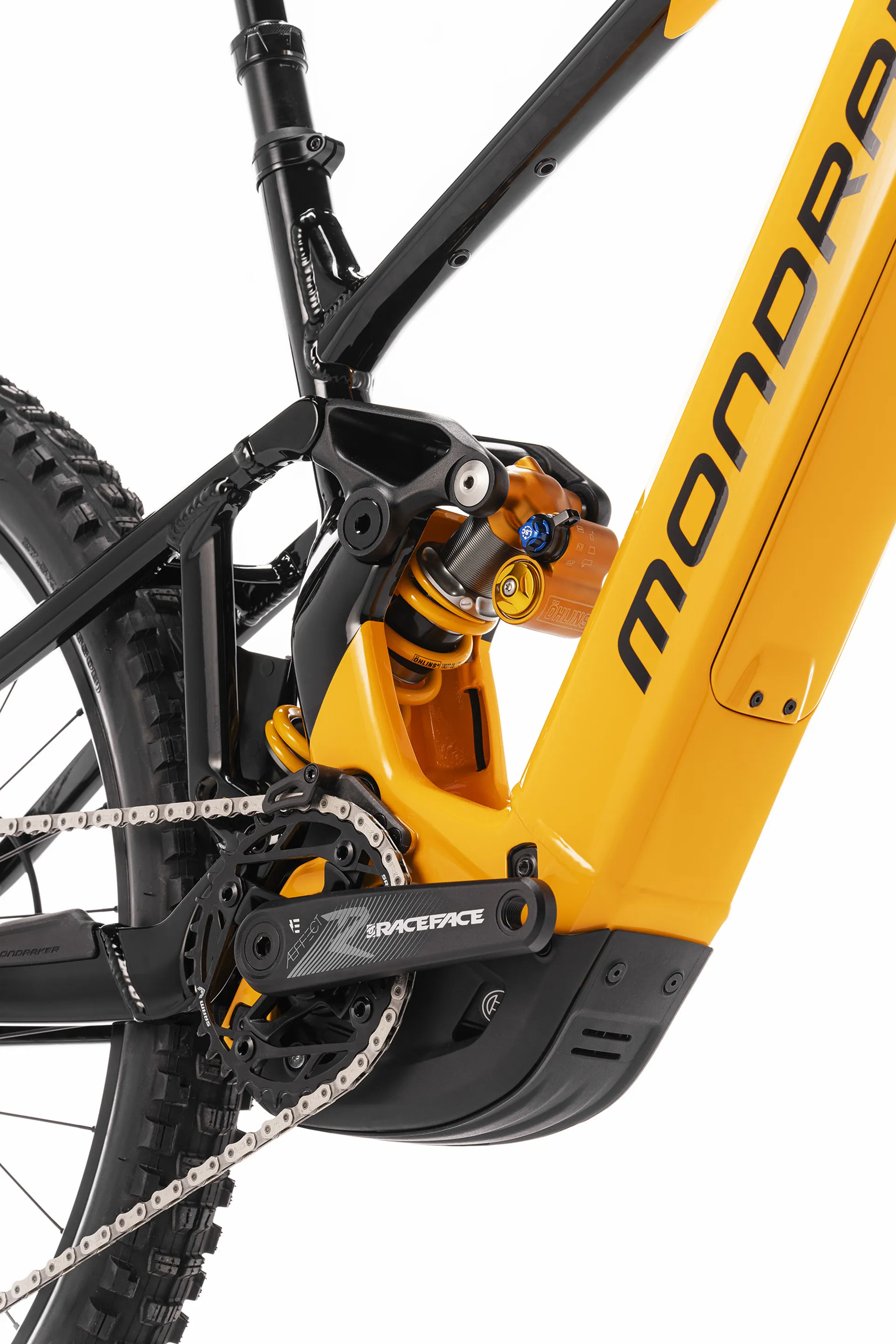

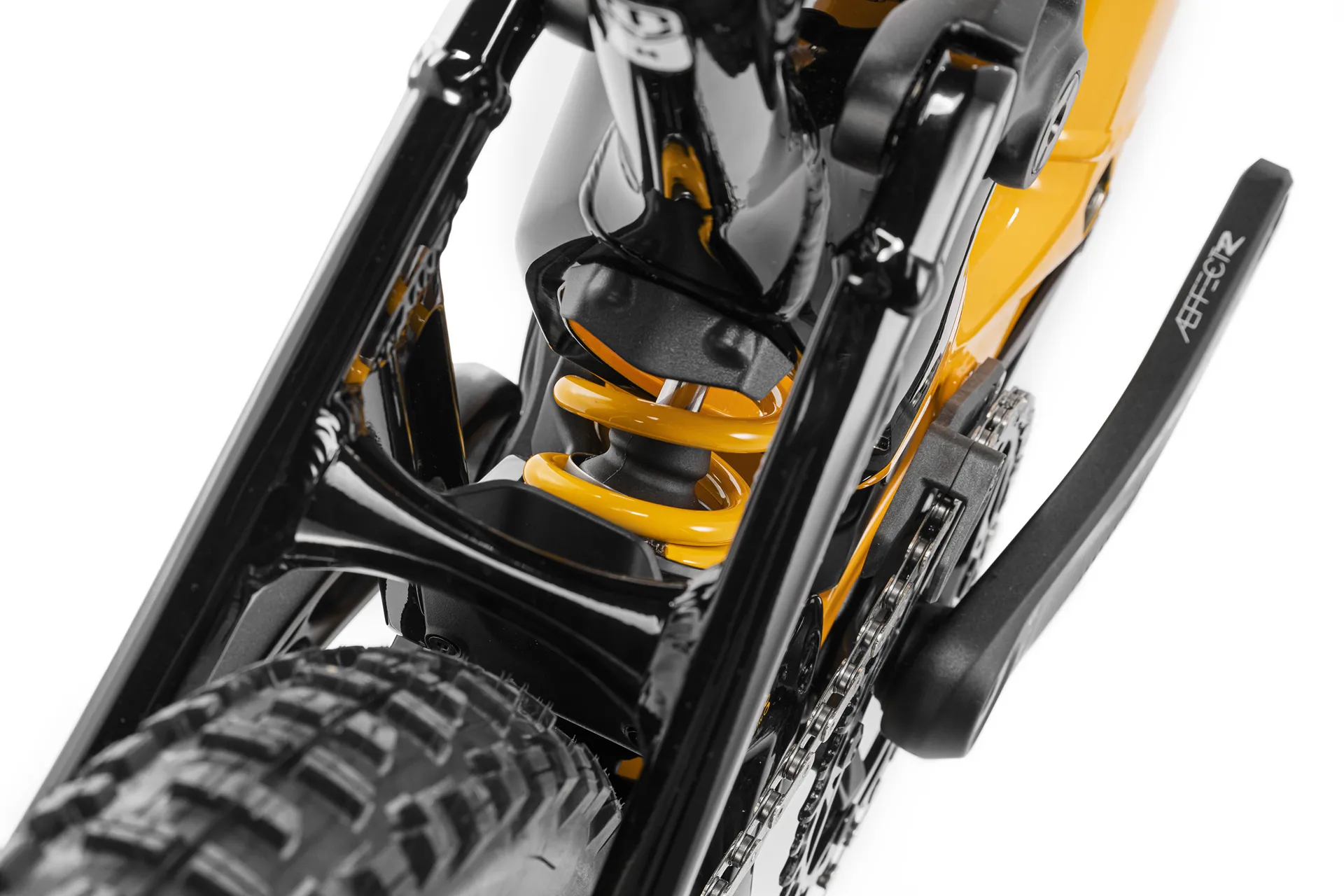

Shock
Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Fork
Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Motor
Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh

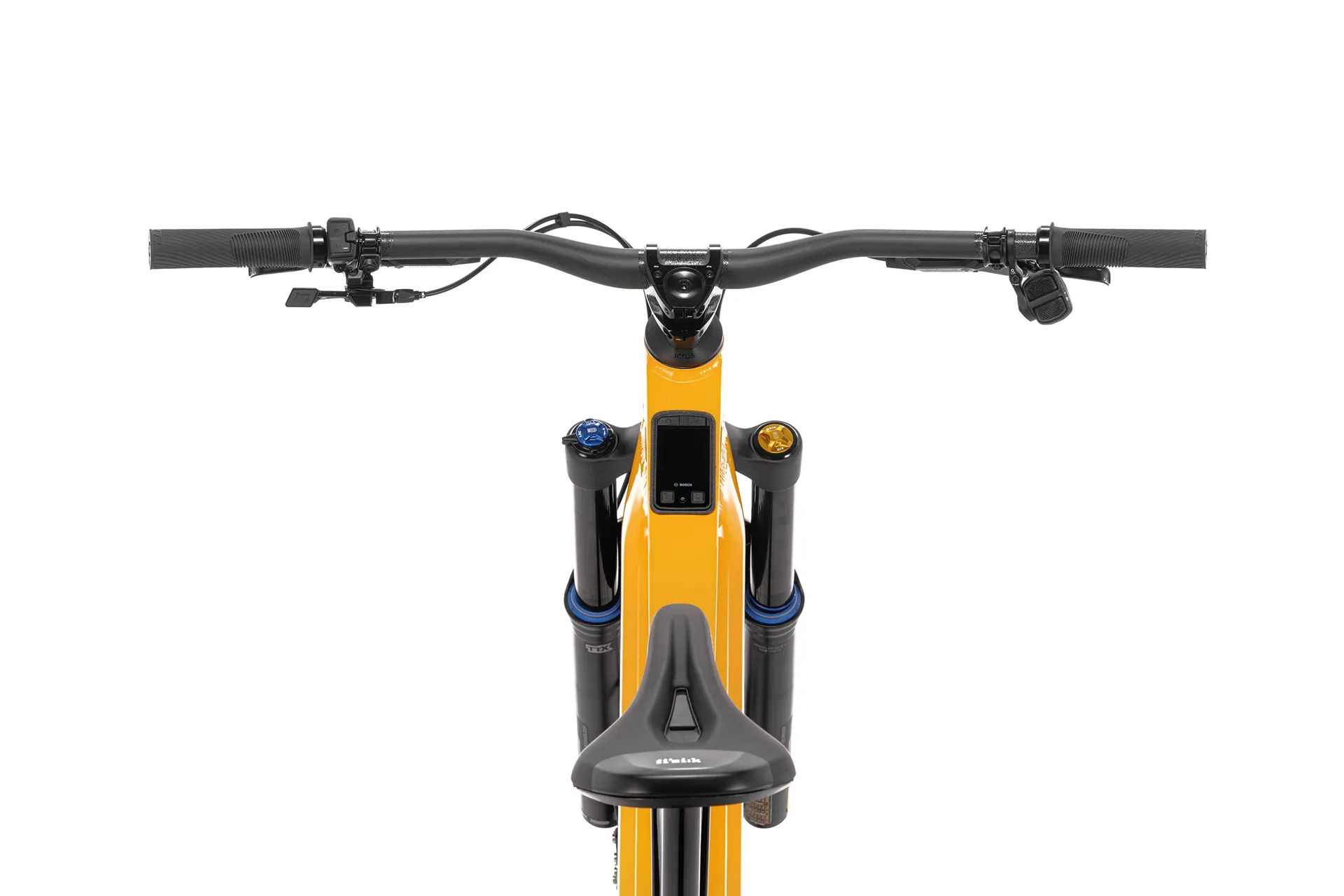

Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Headset
OnOff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings
Chainring
SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Crank
RaceFace Aeffect ebike, 160mm
Shifters
SRAM Eagle AXS Pod MMX, 12 Speed
Cassette
SRAM XS-1275, 10-52T, T-Type, 12 Speed
Rear derailleur
SRAM GX Eagle AXS T-Type, 12 Speed
Chain
SRAM GX Eagle T-Type, 12 Speed, Powerlock
Handlebar
OnOff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
Stem
OnOff S9 30mm 0º, Full CNC, 31.8mm barbore

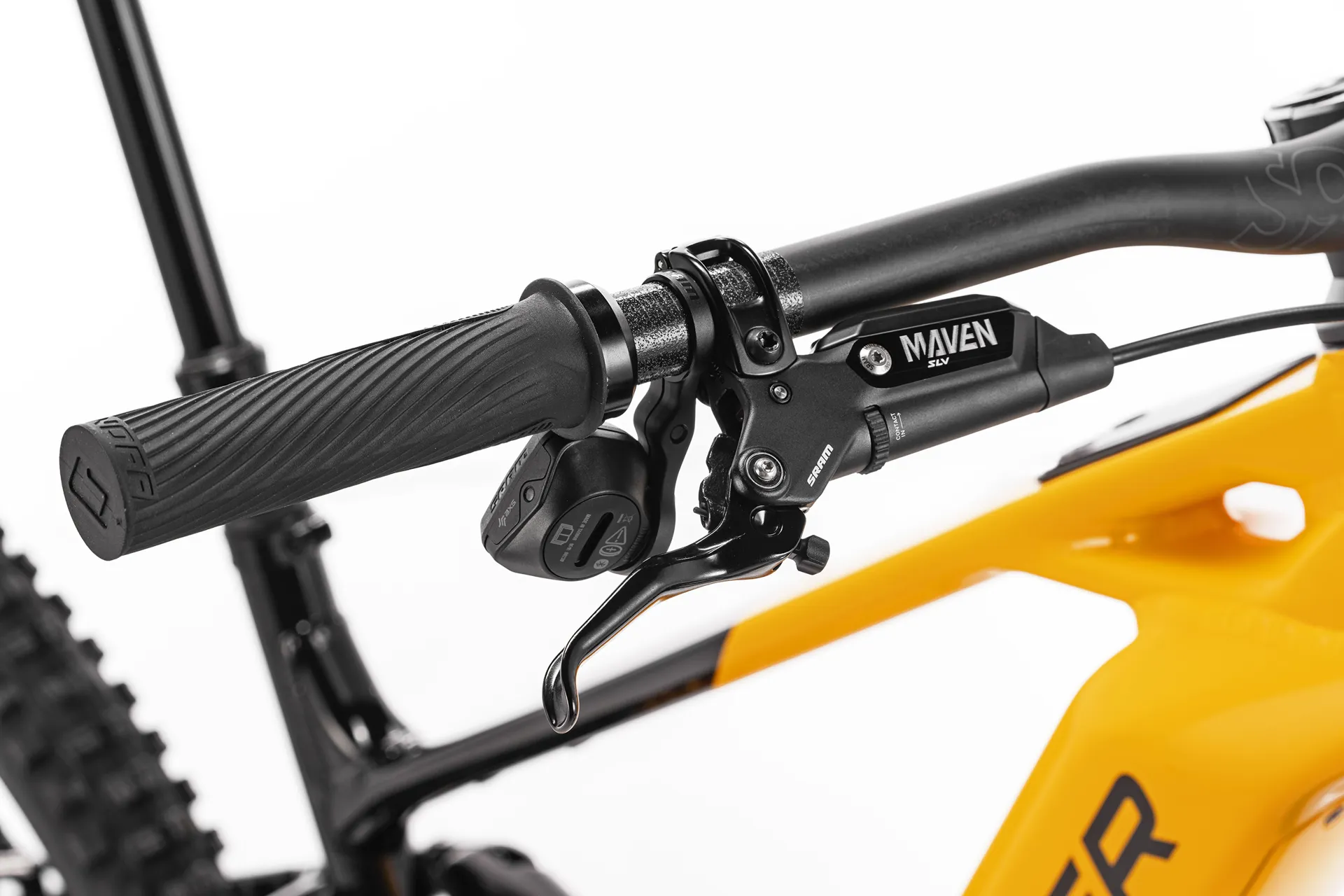

Brakes

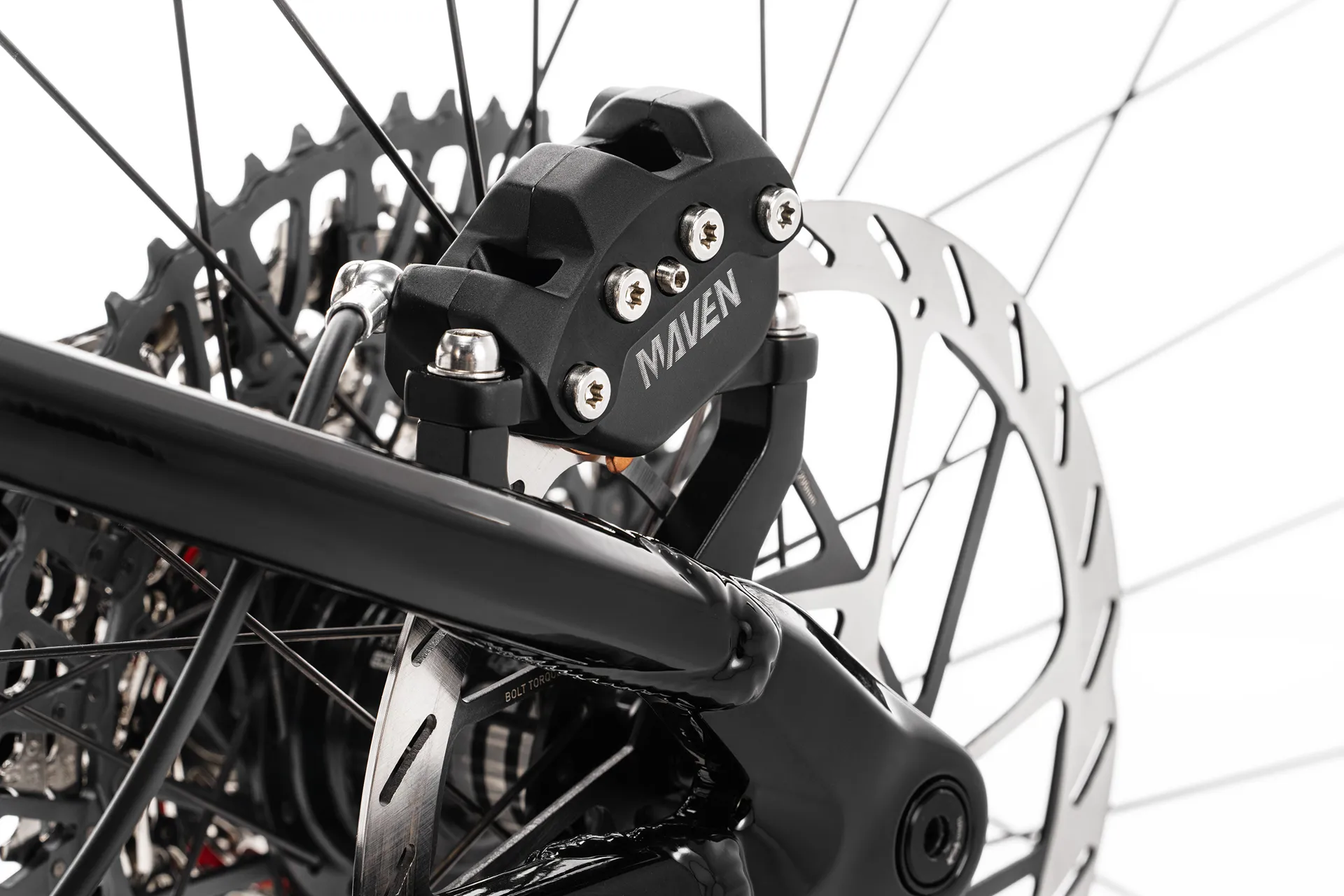

SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mmF/200mmR IS 6 bolts one-piece rotor
Wheels
e*thirteen Grappler Race, Hookless 6069 Welded Aluminum
30mm internal width, tubeless ready, 28H, 29" 15x110mm front, 27.5" 12x148mm rear
Front Tyre
Maxxis Assegai, 29x2.6," WT, tubeless ready, 3C MAXX GRIP, DD, DH casing, 60x2TPI, folding bead
Rear Tyre
Maxxis Minion DHR II, 27’5x2.6, WT, tubeless ready, 3C MaxxTerra, DD, 2x120TPI, folding bead
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
Saddle
FIZIK Terra Aidon X5, 145mm
Grips
OnOff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
