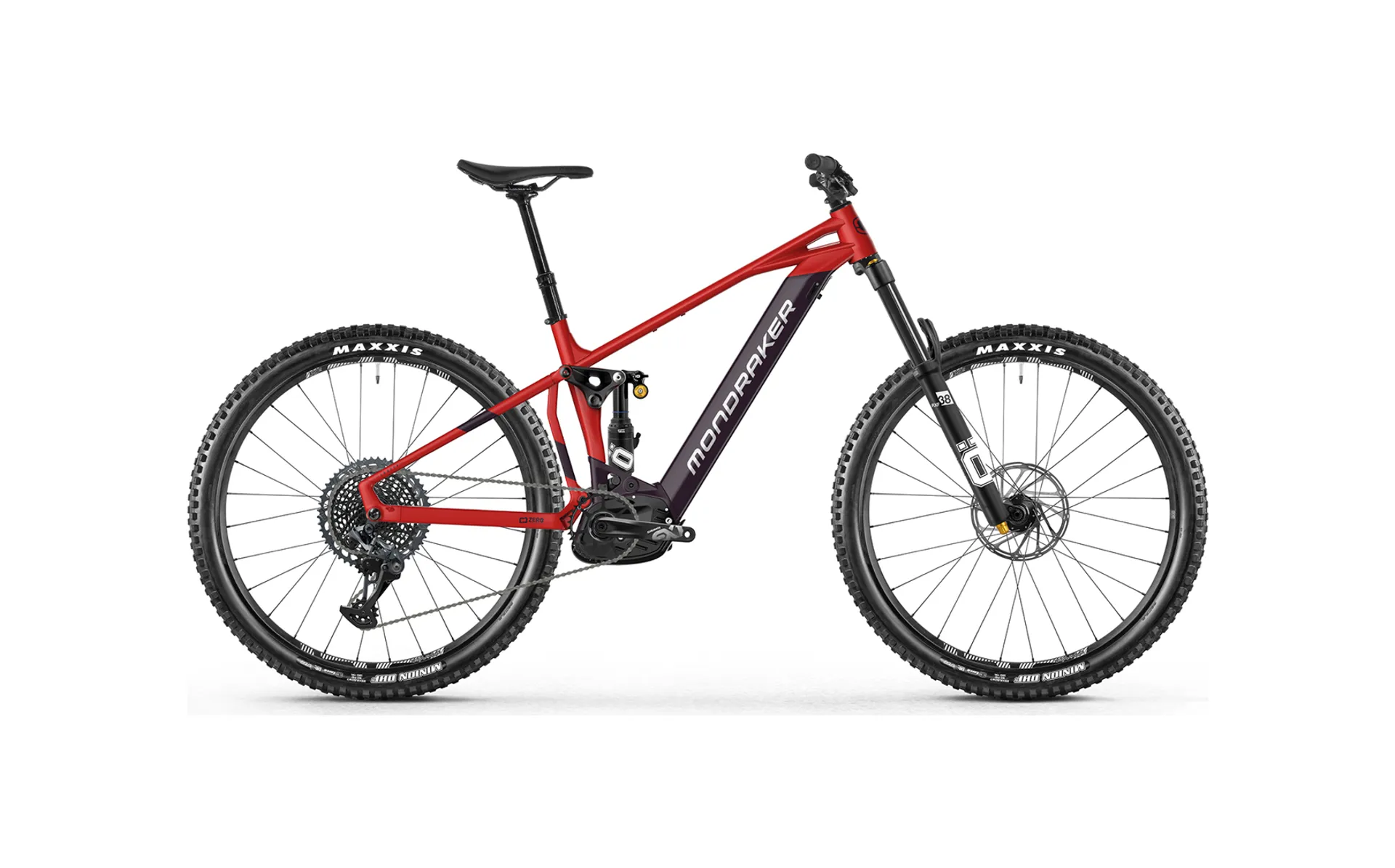

Mondraker Crafty XR Electric Mountain Bike 2022 - Red

£6,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Mondraker Crafty XR Electric Mountain Bike 2022 - Red

Season:2022

Brand:Mondraker

Code:010.2223

ADRENALINE RUNS THROUGH YOUR VEINS.

You are one of those riders who enjoy going up, but what you like the most is going down and feeling that flow through the best trails in the area.

You enjoy every moment taking your limits as far as you can and when you get down, you comment with your colleagues that curve in which you have entered the limit, that jump that you have been wanting to do for a long time and you have finally nailed it...

Without a doubt you are of ours, you are and have Mondraker DNA.And we love that.That is why our enduro and all mountain bikes enjoy FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and even some of them MIND, a technology that will allow you to make the most of your suspensions.

And the best of all is that with any of them, you will feel like the most special rider on the planet.

Technical Information
  • Frame
    Crafty 6061 Alloy Stealth Evo / Zero Suspension System Optimised for eBike / 150mm Travel / Forward Geometry / 12x148mm Boost Rear Axle / Tapered Head Tube / One-piece Monobloc Upper Link / HHG Internal Cable Routing System / Enduro MAX Sealed Bearings / 17mm Oversized Trucks / Speed Sensor Integrated in the Dropout / Exclusive Plastic Motor Covers
  • Fork
    Öhlins RXF 38 M.2 29 / 170mm Travel / TTX18 Twin Tube cartridge / Tapered Tube / Boost 15x110mm Axle / 44mm Offset / Adjustments: High Compression with Climb Mode / Low Compression / Rebound / Air Preload / Ramp Cam
  • Rear Shock
    Ohlins TTX Air / 205X65mm / Adjustments: High Compression Lever with “Climb” Mode (semi-locked) / Low Compression / Rebound / Air Preload /Trunnion Upper Anchor
  • Drive Unit
    Bosch Performance Line CX Cruise Gen4 / Smart System
  • Battery
    PowerTube 750Wh
  • Display
    Bosch Kiox 300
  • Rear Derailleur
    SRAM GX Eagle / 12 Speed
  • Shifters
    SRAM GX Eagle Trigger / 12 Speed
  • Crankset
    RaceFace Aeffect ebike / 165mm
  • Chainring
    SRAM X-Sync 2 Eagle / 34T / Steel Narrow-wide
  • Chain
    SRAM NX Eagle / 12 Speed
  • Cassette
    SRAM PG-1275 / 10-52t / 12-Speed
  • Brake Levers
    SRAM Code R / Tool-less Reach Adjust
  • Brakes
    SRAM Code R / Oversized 4-Piston Calliper / IS 200mm Centerline 6-Bolt One-Piece Rotors
  • Handlebar
    ONOFF Sulfur 1.0 / Double Butted 6061 Alloy / Height: 20mm / Width: 800mm
  • Stem
    ONOFF Sulfur FG / 30mm / Forged 6061 Alloy / 31.8mm
  • Seatpost
    ONOFF Pija Dropper Internal / 31.6mm
  • Seat
    FIZIK Terra Aidon X5 / 145mm
  • Headset
    ONOFF Saturn Tapered for 1-1/8” to 1-1/2” Tube / ACB Sealed Bearings
  • Wheelset
    Mavic E-Deemax 29 / Boost / 30mm inner width / Welded Maxtal alloy / PFP / Tubeless Compatible
  • Front Tyre
    Maxxis Minion DHF 29x2.6 / Tubeless Ready / 3C MaxxTerra / EXO+ / 120TPI / Folding
  • Rear Tyre
    Maxxis Minion DHR II 29x2.6 / Tubeless Ready / 3C MaxxTerra / EXO+ / 120TPI / Folding
