A true do it all eBike that's at home on woodland trails as well as on the morning commute.
A true do it all eBike that's at home on woodland trails as well as on the morning commute.
Ridgeback

Ridgeback Arcus 3 Open Frame Electric Hybrid Bike in Grey

£2,999.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

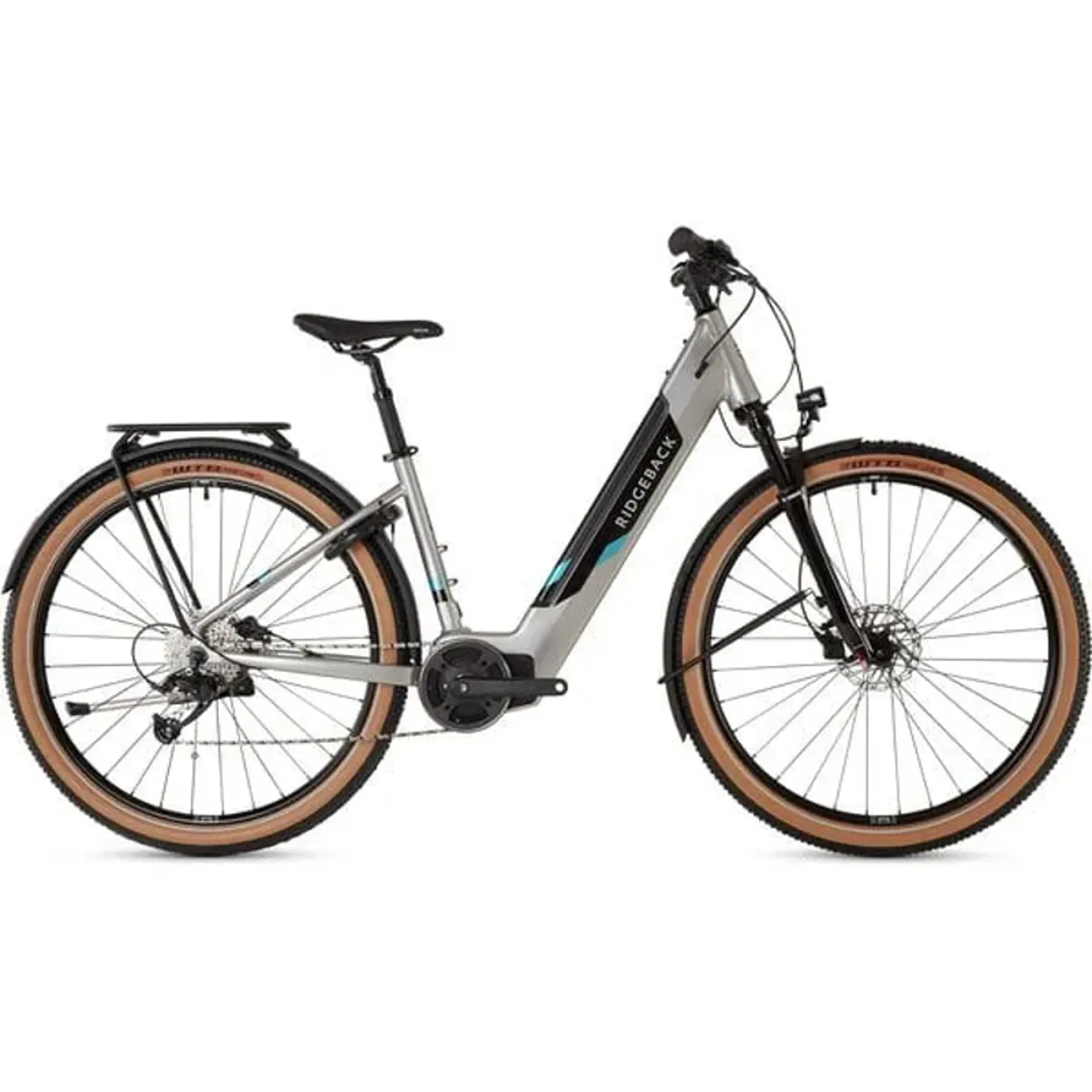

Ridgeback Arcus 3 Open Frame Electric Hybrid Bike in Grey

Brand:Ridgeback

Code:VARRB22125GRY

  • Meet the Arcus 3, our premium Sportdrive equipped e-bike.
  • A true do it all bike that's at home on woodland trails as well as on the morning commute.
  • Hills? What hills? With the Sportdrive MDS250s drive unit boasting 95Nm of torque you will never have to worry about another climb again.
  • The Arcus 3 can be tuned to exactly how you want to ride it whether that be increased torque for pulling away from traffic lights or a gentler start for a more leisurely ride with increased range.
  • With a 500Wh internally mounted battery you can enjoy up to 60 miles of assisted pedalling, plenty of range for a weekend of exploring.
  • The Arcus 3 comes fully equipped with a microSHIFT Mezzo 9–speed drivetrain and powerful hydraulic disc brakes.
  • The RST air sprung suspension forks with remote lock out give you the adaptability to handle any terrain in comfort whilst bespoke alloy mudguards, AXA Blue Line lights and the excellent AtranVelo rear rack system complete the build making a truly versatile package.
Technical Information
  • BRAKE TYPE
    Hydraulic Disc
  • FORK MATERIAL
    Alloy
  • FRAME MATERIAL
    Alloy
  • BATTERY
    SportDrive Internal 500wh
  • WHEEL SIZE
    700c
  • BRAKE LEVERS
    ALHONGA AHJ-OD07 Hydraulic Disc Brake
  • BRAKES
    ALHONGA AHJ-OD07 Hydraulic Disc Brake
  • CASSETTE FREEWHEEL
    Microshift CS-H092 11-36t 9-speed
  • CHAIN
    KMC X9EPT
  • CHAIN SET
    Sportdrive 38T / 170 mm
  • CHARGER
    SportDrive 2AH
  • FORK
    RST Air Sprung with lockout / 80mm
  • GRIP TAPE
    Ridgeback lock on
  • HEADSET
    FSA Orbit 1.5E No.57B Zero Stack
  • HUBS
    Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR
  • MUDGUARD
    Fitted
  • PEDALS
    Resin Metro
  • REAR DERAILLEUR
    microSHIFT Mezzo RD-M36L 9-speed
  • RIMS
    WTB SX19 32H
  • MOTOR
    SportDrive MD250S 36v 95Nm 250W
  • SEAT POST
    ONE1 Alloy SPS 405 Suspension 30.9mm x 350mm
  • SHIFTERS
    microSHIFT Mezzo TS39 9-speed
  • SPOKES
    Steel 14 g
  • STEM
    Ridgeback Alloy 45mm x 3 degrees
  • TYRES
    WTB Nineline 29x2.25"
  • FRAME SHAPE
    Open Frame
  • BATTERY INTEGRATION
    Internal
