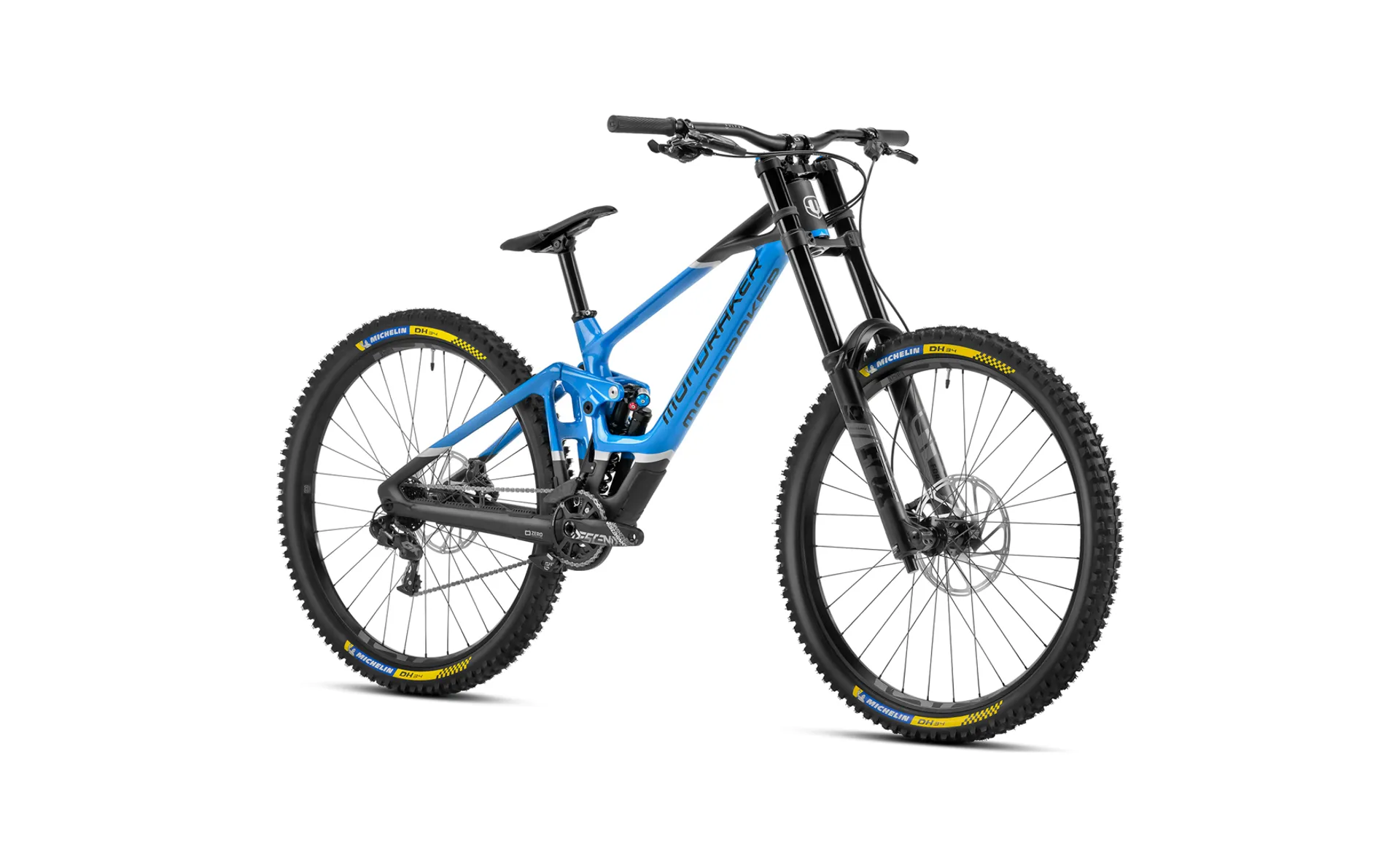

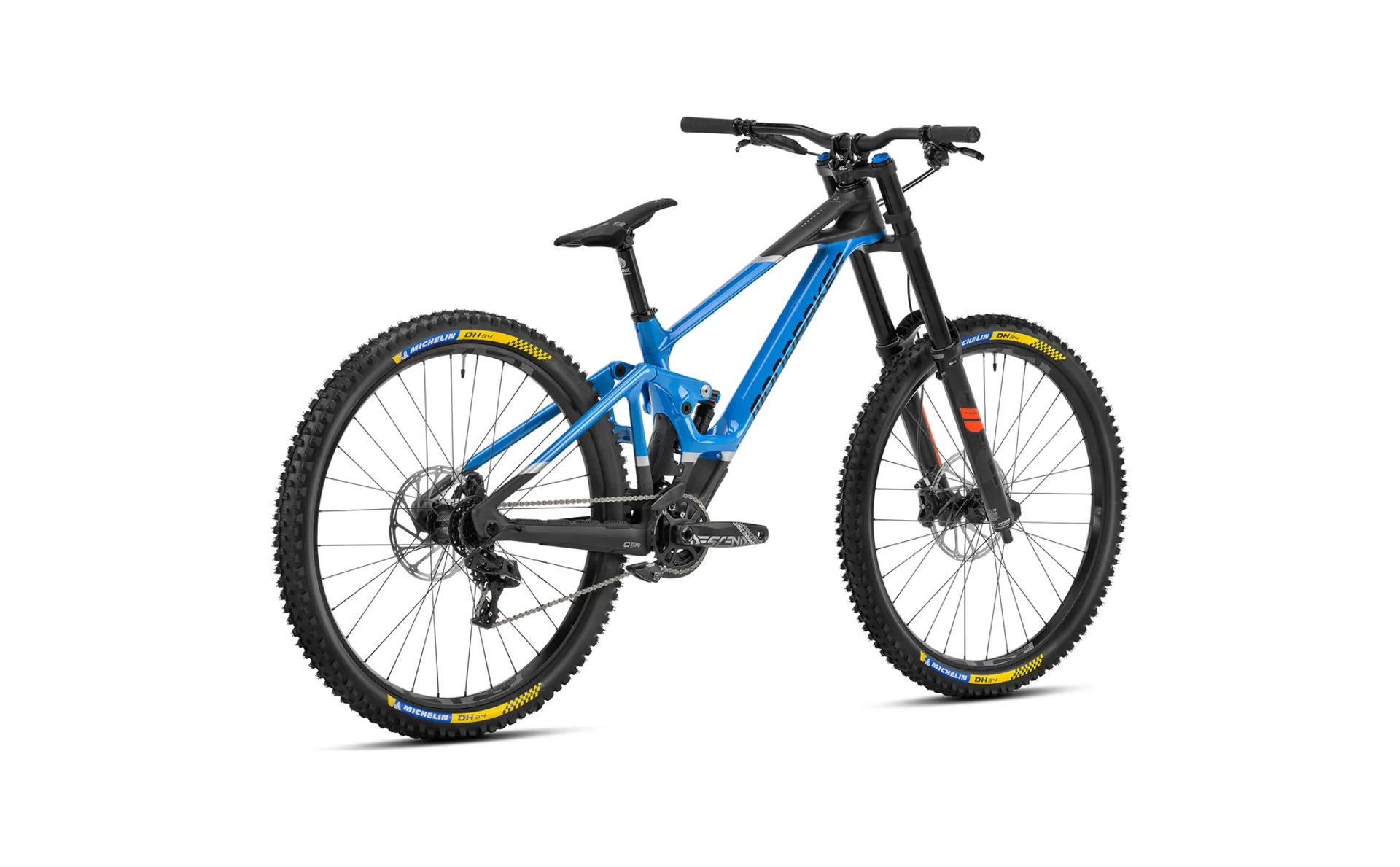

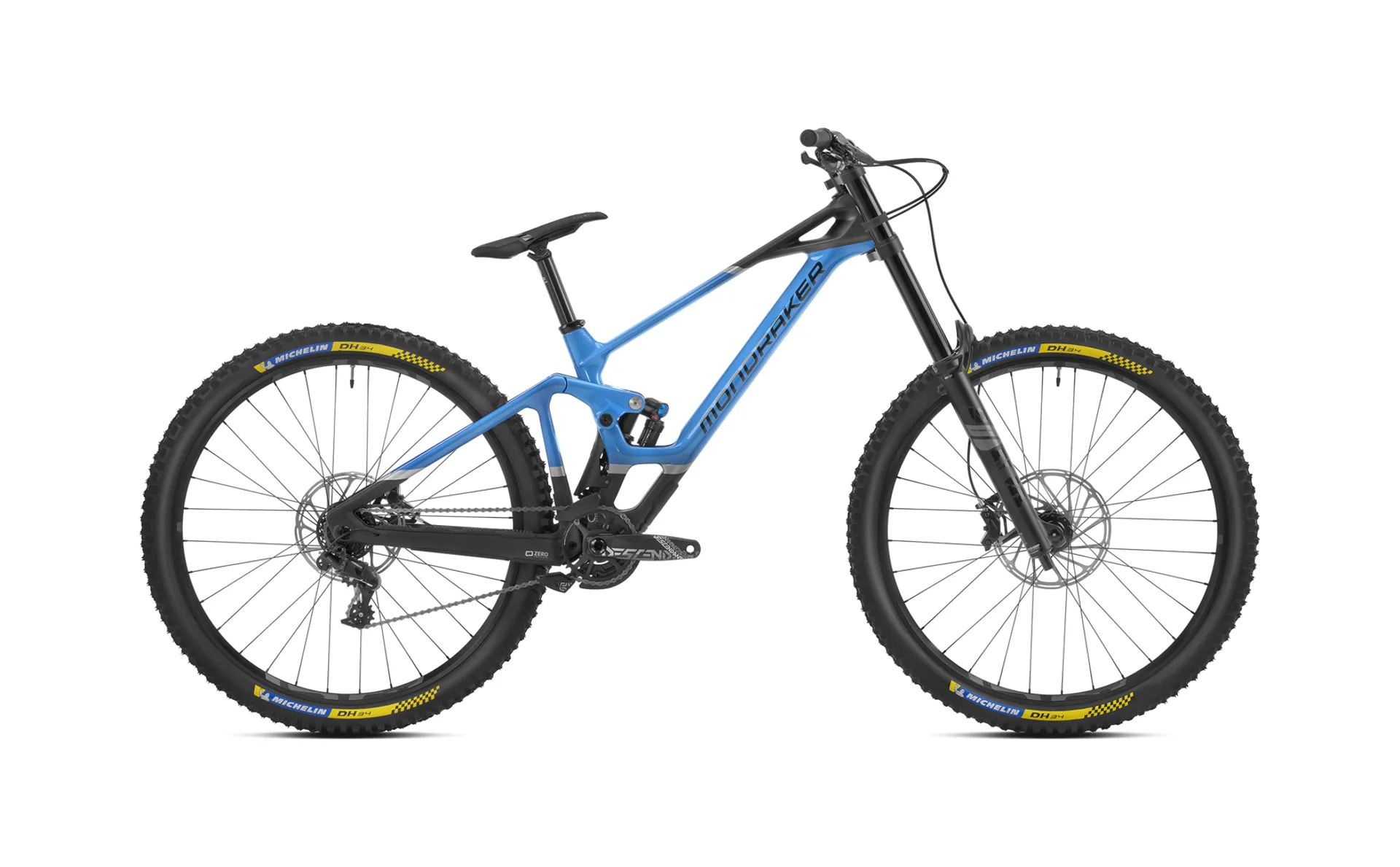

2023 Mondrakrer Summum Carbon R Downhill Bike in Marlin Blue

Season:2023

Brand:Mondraker

Code:010.2317

DH IS OUR PASSION. DH AND RACING ARE IN OUR DNA.
Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the MS Mondraker Team, which includes world-class riders such as Eleonora Farina from Italy, who stood on several World Cup podiums (Lourdes, Fort Williams, Leogang, Lenzerheide, Mont-Sainte-Anne...) in the 2022 season. For 2023 our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

The SUMMUM CARBON R inherits all of the features from the CARBON RR but with more affordable components. It shares the same frame as the CARBON RR. Light and effective, it's a great bike for podium finishes in any DH race. In this case the geometry change kit is optional.

Technical Information
  • Frame
    Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors
  • Shock
    Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
  • Fork
    Fox 40 Performance 29 Float FIT GRIP EVOL, 203mm travel, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
  • Headset
    ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, sealed bearings, geometry kit cups
  • Crank
    Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm
  • Chainring
    SRAM X-SYNC 34T, steel
  • Shifters
    SRAM trigger GX DH, 7 speed
  • Cassette
    SRAM PG 720, 11-25T, 7 speed
  • Rear derailleur
    SRAM GX DH, 7 speed, medium cage, X-actuation 1:1
  • Chain
    SRAM PC 720, 11-25t, Powerlock, 7 speed
  • Chainguide
    E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
  • Handlebar
    ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
  • Stem
    ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
  • Grips
    ONOFF Desert, 1lock-on, 135mm
  • Brakes
    SRAM Code R, oversized 4-piston caliper, Centerline 220mmF/203mmR IS 6 bolts one-piece rotor
  • Rims
    e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 32 spokes
  • Front Hub
    e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
  • Rear Hub
    e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts
  • Front Tyre
    Michelin DH34, 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
  • Rear Tyre
    Michelin DH34, 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
  • Seatpost
    SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
  • Saddle
    SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
