Introducing the Arid R, the gateway into the Mondraker gravel scene.Featuring Mondraker's Stealth Alloy EVO frame technology for superior lightweight and stiffness, a full carbon fork and SRAM Apex AXS gearing.The Arid R, ride the paths less travelled.
Introducing the Arid R, the gateway into the Mondraker gravel scene.Featuring Mondraker's Stealth Alloy EVO frame technology for superior lightweight and stiffness, a full carbon fork and SRAM Apex AXS gearing.The Arid R, ride the paths less travelled.
Mondraker

2025 Mondraker Arid R Gravel Bike in Golden Silver

£2,298.00 £2,699.00 15% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

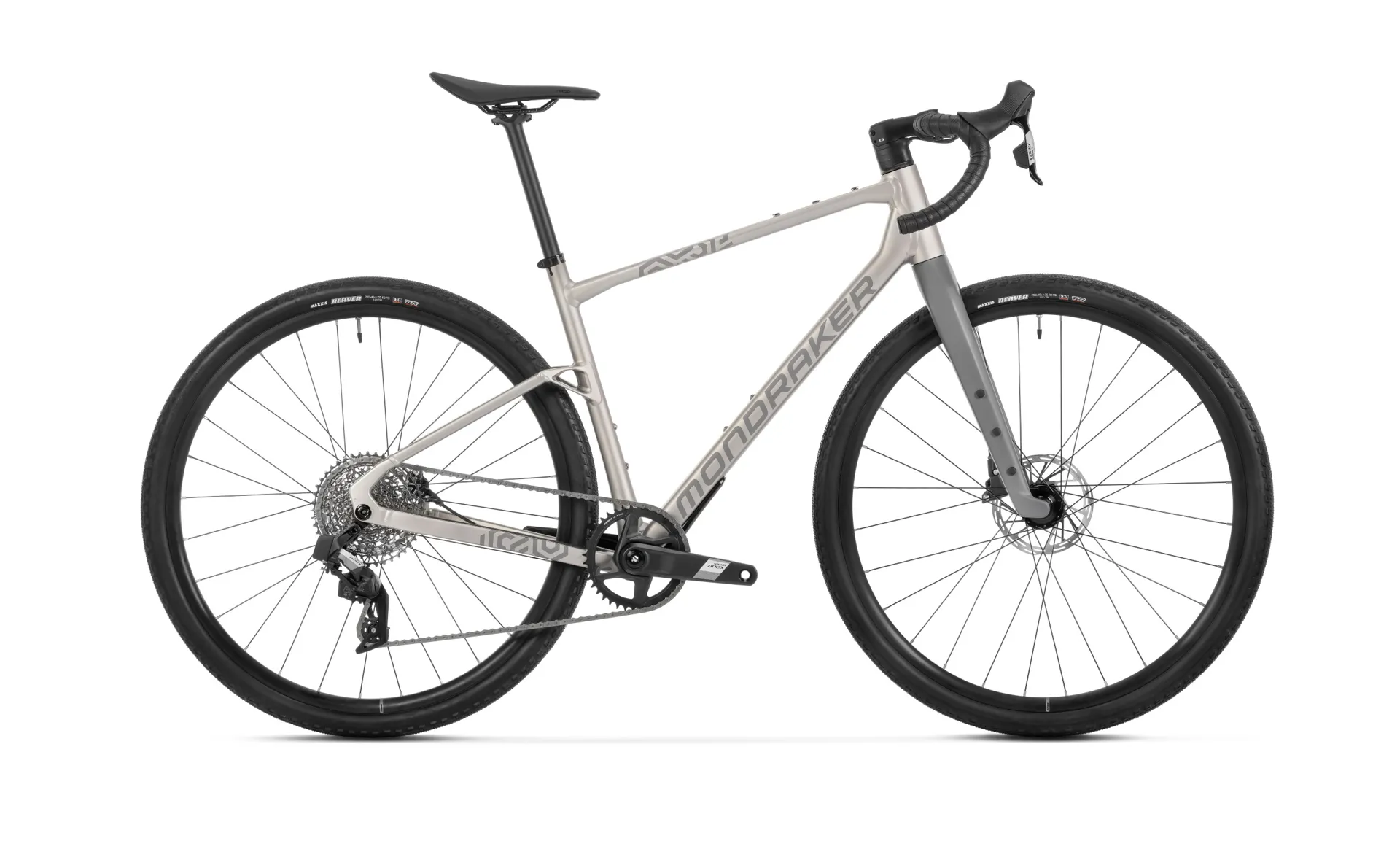

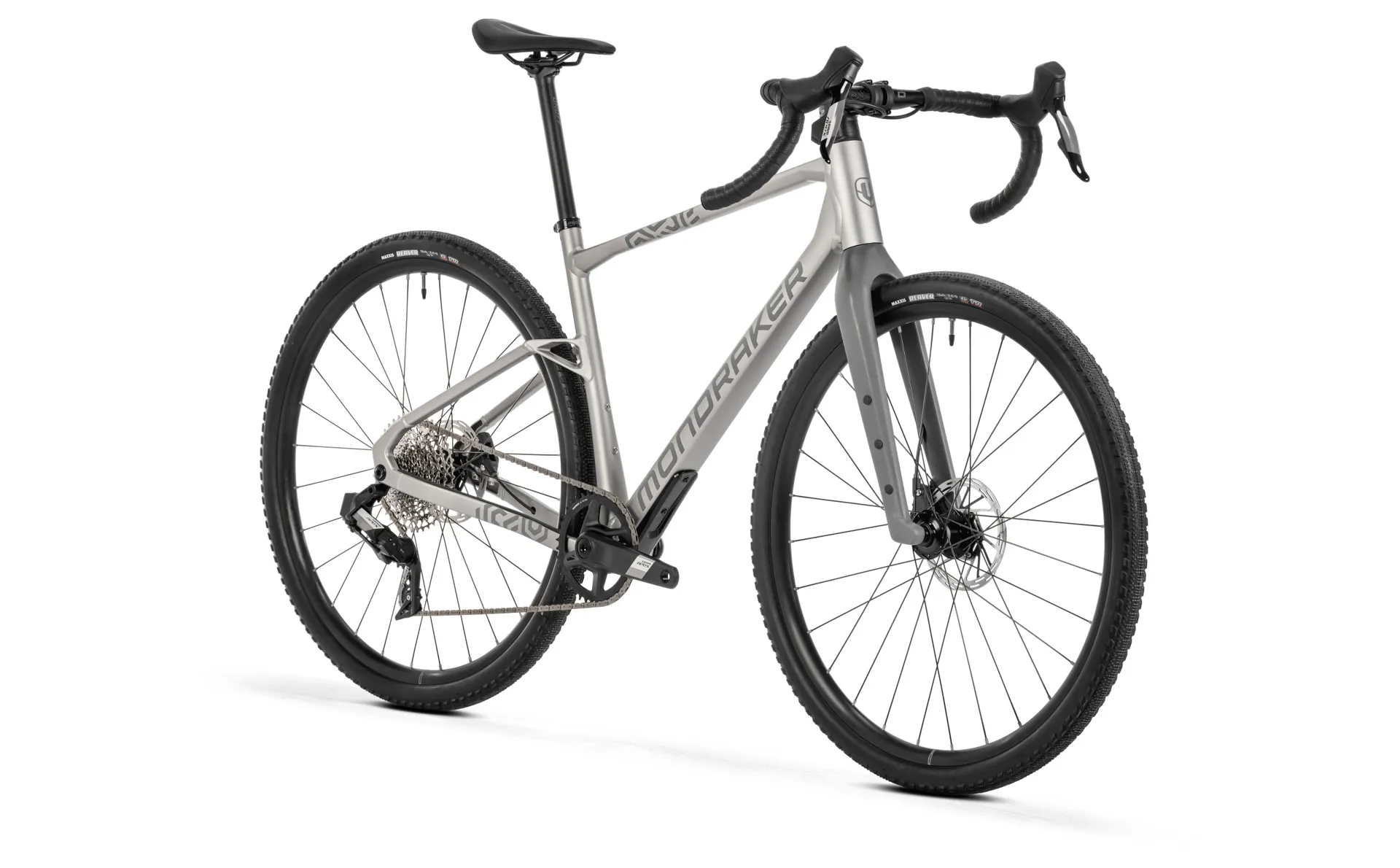

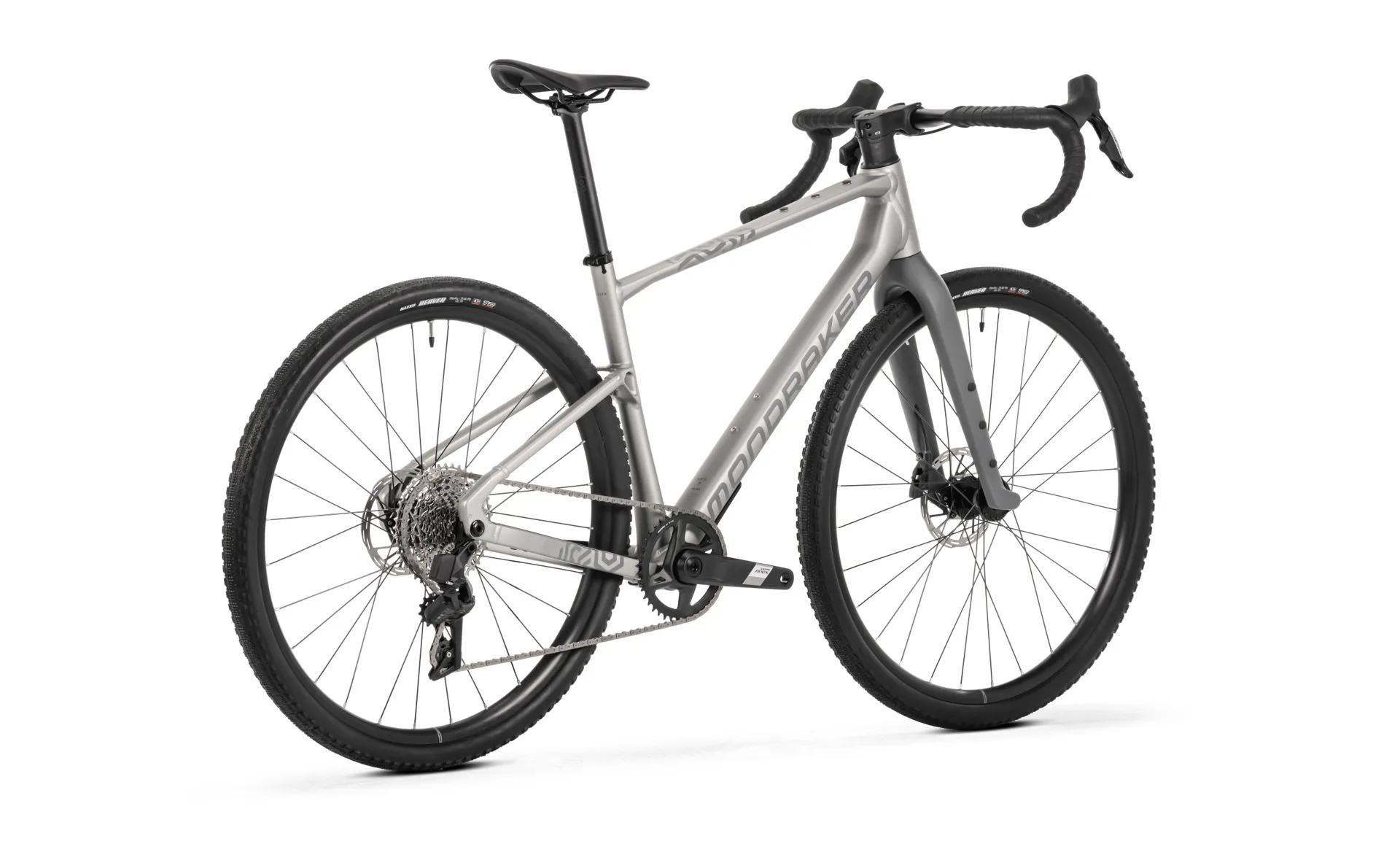

2025 Mondraker Arid R Gravel Bike in Golden Silver

Season:2025

Brand:Mondraker

Code:010.2613

EVERY RIDE IS AN OPPORTUNITY TO TRY SOMETHING NEW.
Roam solo. Or chase the group ahead on the horizon. Mix it up with your friends or take on your first gravel race. Or simply leave the world behind for the weekend. There’s no wrong way to go, so long as you go!

Riding gravel brings you endless opportunities to experience the world, at the pace and the place that you choose. The new Mondraker Arid is your gateway to the Mondraker gravel scene and the world beyond your doorstep.

The Mondraker Arid is a gravel bike engineered for high-end performance and all-around versatility. Both the Arid S and Arid R models feature a distinctive Stealth Alloy frame paired with a carbon fork, delivering the same geometry and drivetrain range as their premium carbon counterparts. The result is a responsive and capable ride across varied terrain.

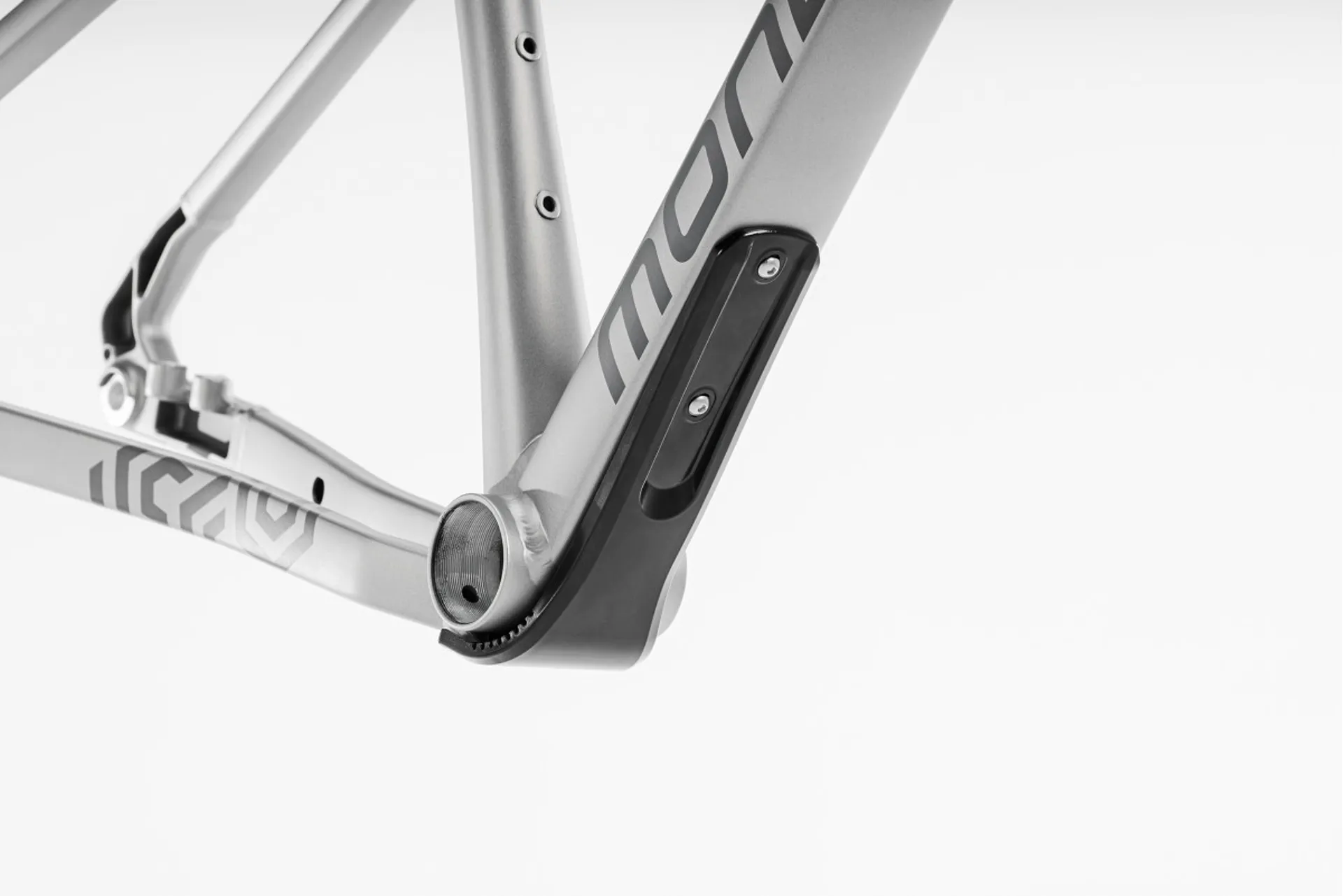

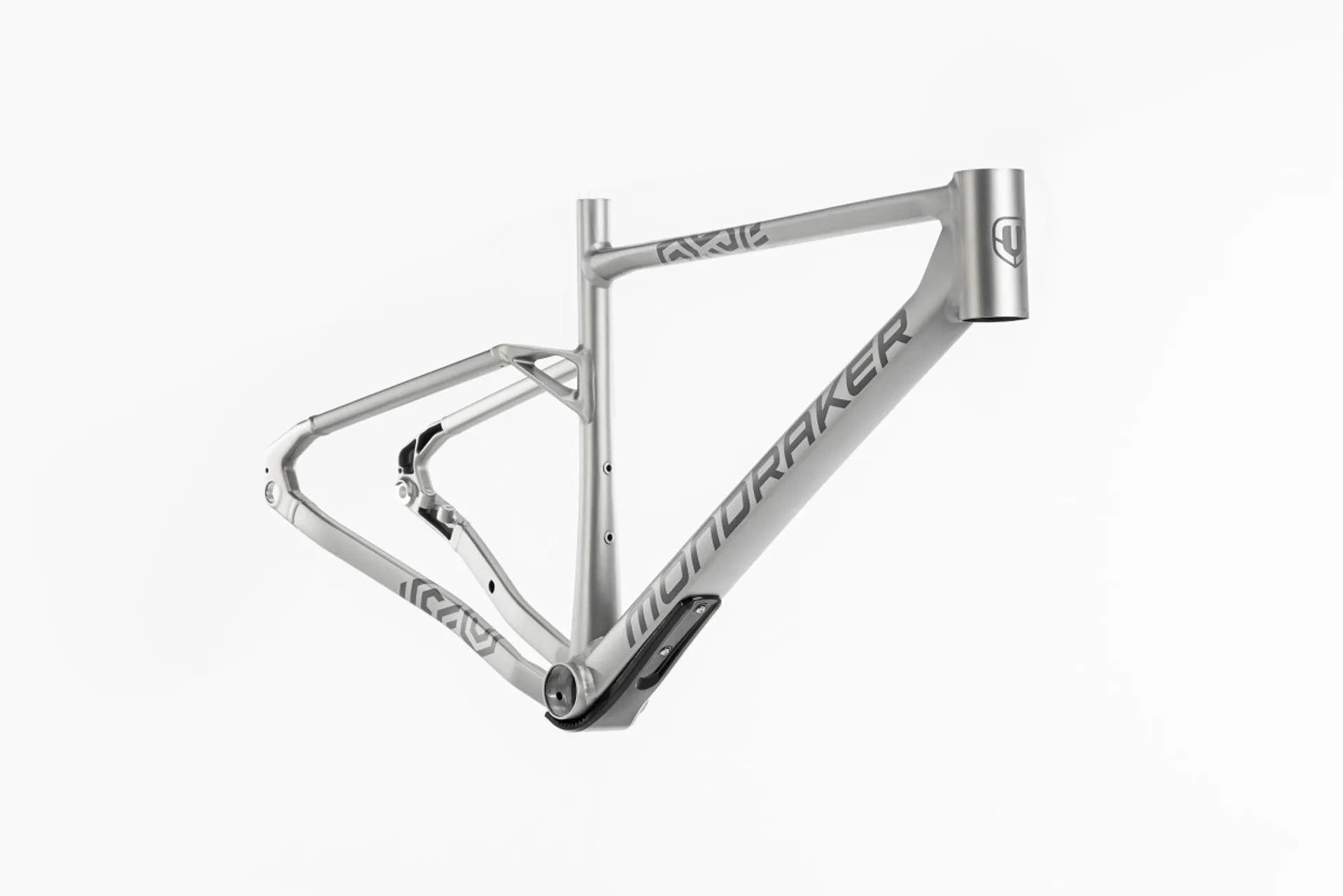

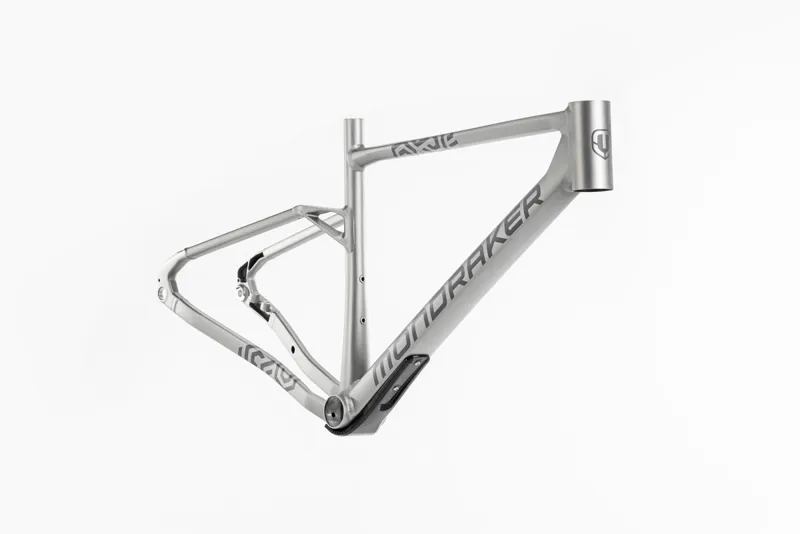

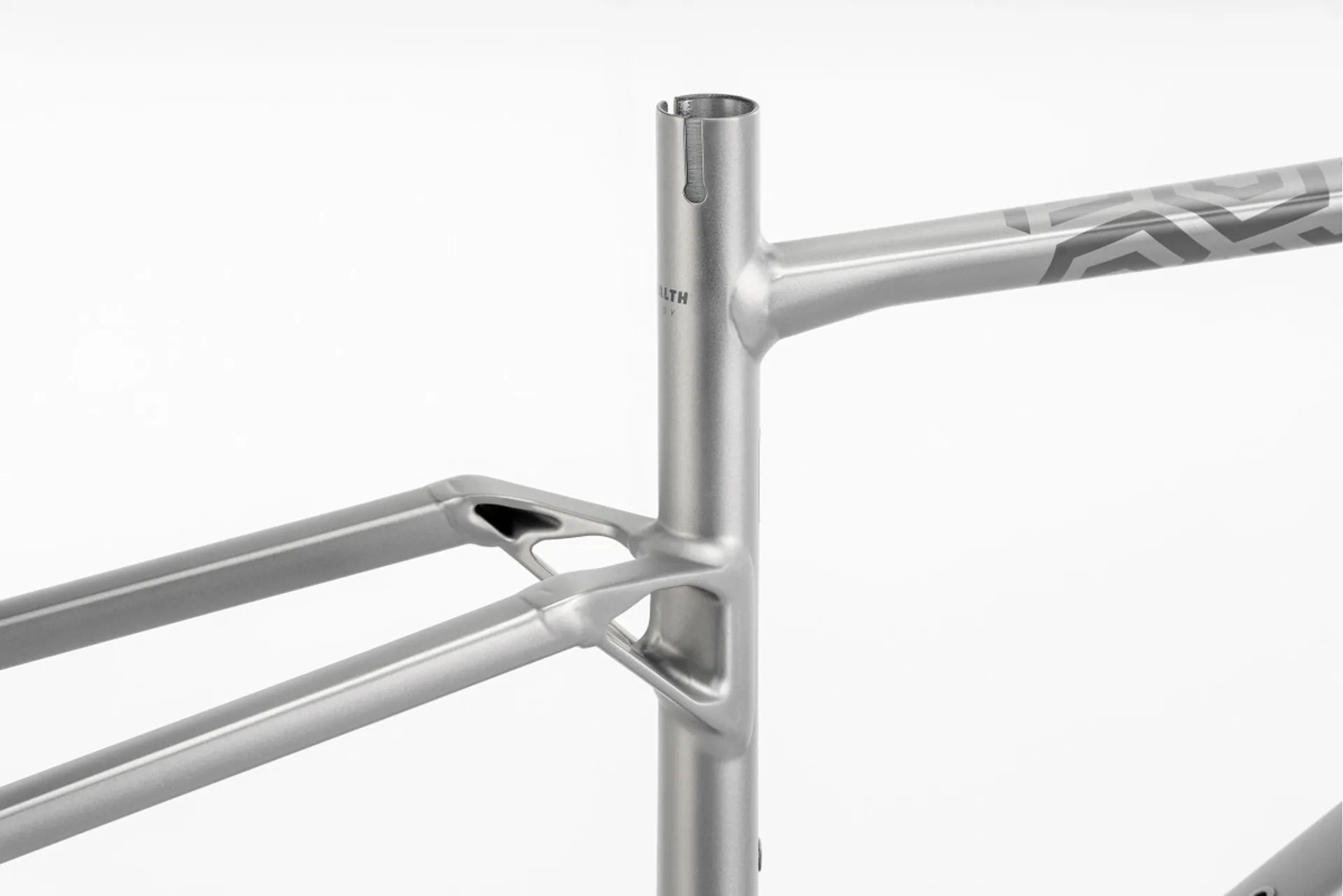

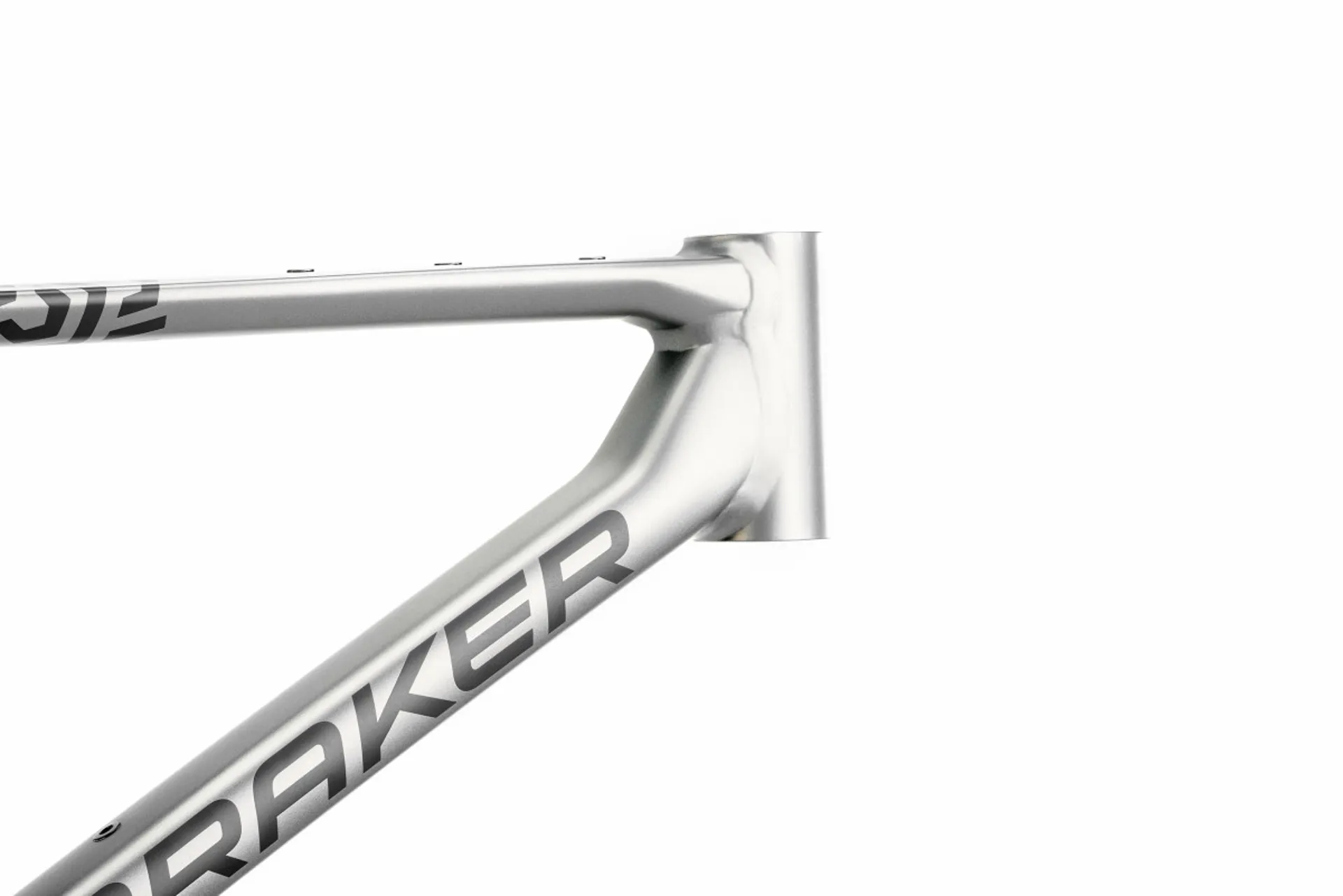

Arid R Frame

Designed for everything from gravel adventures to daily commuting, the Arid incorporates Stealth Alloy EVO technology, with smooth welds and optimized tube shapes that offer outstanding compliance and vibration damping—providing ride comfort that rivals carbon frames. With generous tire clearance, flat-mount disc brakes, thru-axles, and multiple mounting points, the Arid is equipped to handle whatever the ride demands.

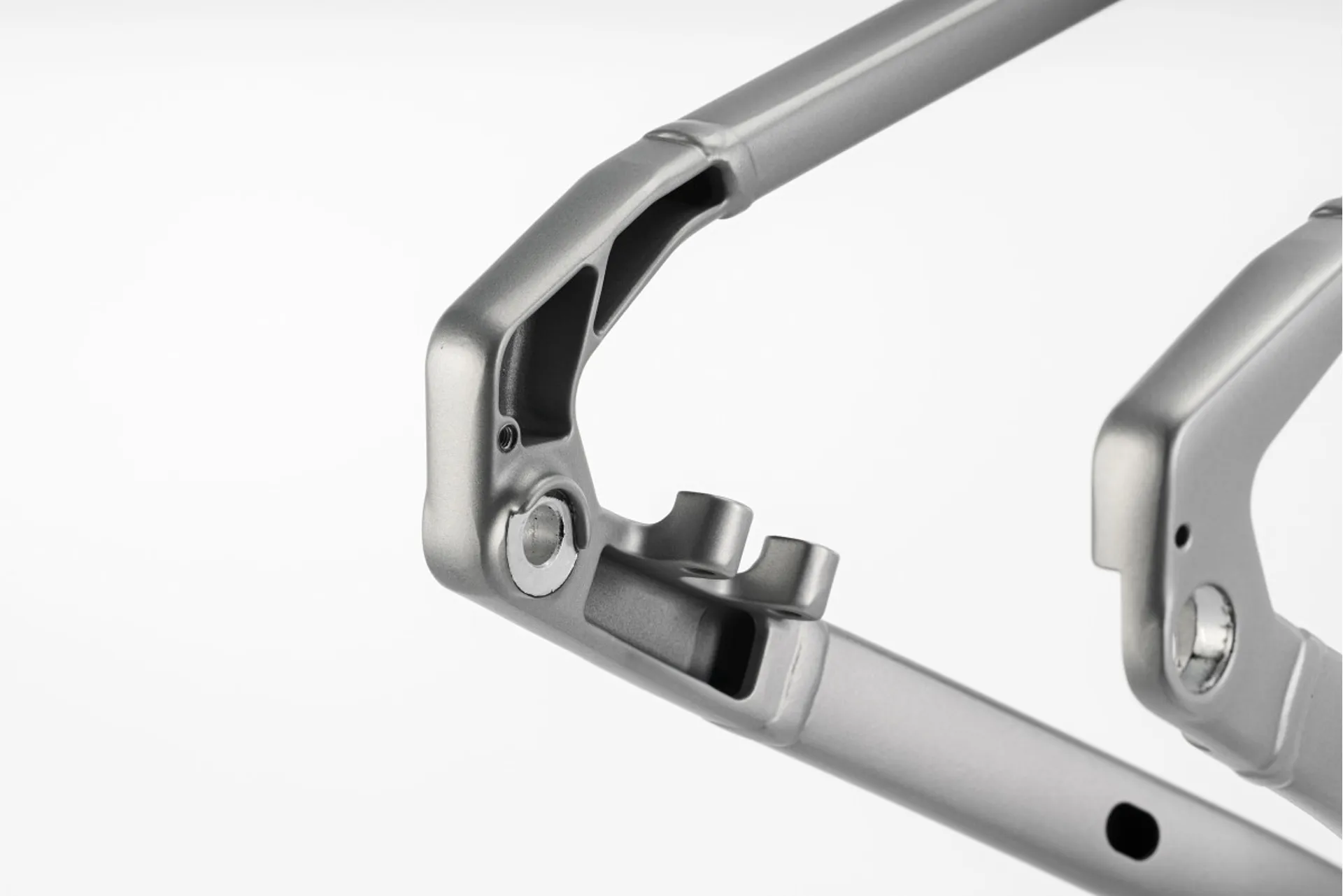

Arid R dropoutsGeometry:
Arid alloy geometry

Technical Information
  • Frame
    Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
  • Fork
    Steatlh Air Carbon tapered steerer tube, HHG, flat mount integrated fork
  • Brakes
    SRAM Apex AXS, 2 piece calliper, Rotor: Paceline 160mm Centerlock
  • Shifters
    SRAM Apex AXS D1, 12 Speed
  • Crank
    SRAM Apex 1 Wide, S-M size: 170mm, M/L-L size: 172.5mm, XL size: 175mm, CL 47.5
  • Chainring
    SRAM X-Sync Eagle 40T Direct Mount, Alloy, Narrow-wide
  • Cassette
    SRAM PG-1231, 11-44t, 12 Speed
  • Rear derailleur
    SRAM Apex XPLR AXS D1, 12 speed
  • Chain
    SRAM Apex, 12 Speed, Powerlock
  • Handlebar
    OnOff S3 GR, 16° bar flare. Width: S-M size: 440mm, M/L-XL size: 460mm
  • Grips
    OnOff HEX Bartape
  • Stem
    OnOff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M-M/L size 70mm, L size: 80mm, XL size: 90mm
  • Seatpost
    OnOff S9 Carbon 0-R, 27.2mm, length 400mm
  • Saddle
    FIZIK Terra Argo X5, 140mm
  • Headset
    OnOff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing
  • Rims
    Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokes rear
  • Front Hub
    Mavic, 12x100mm, IS 6 bolts, 24H
  • Rear Hub
    Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, HG Freehub
  • Tyres
    Maxxis Reaver 700x45, Tubeless Ready, Dual Compound, EXO Protection, 120 TPI, Folding Bead
