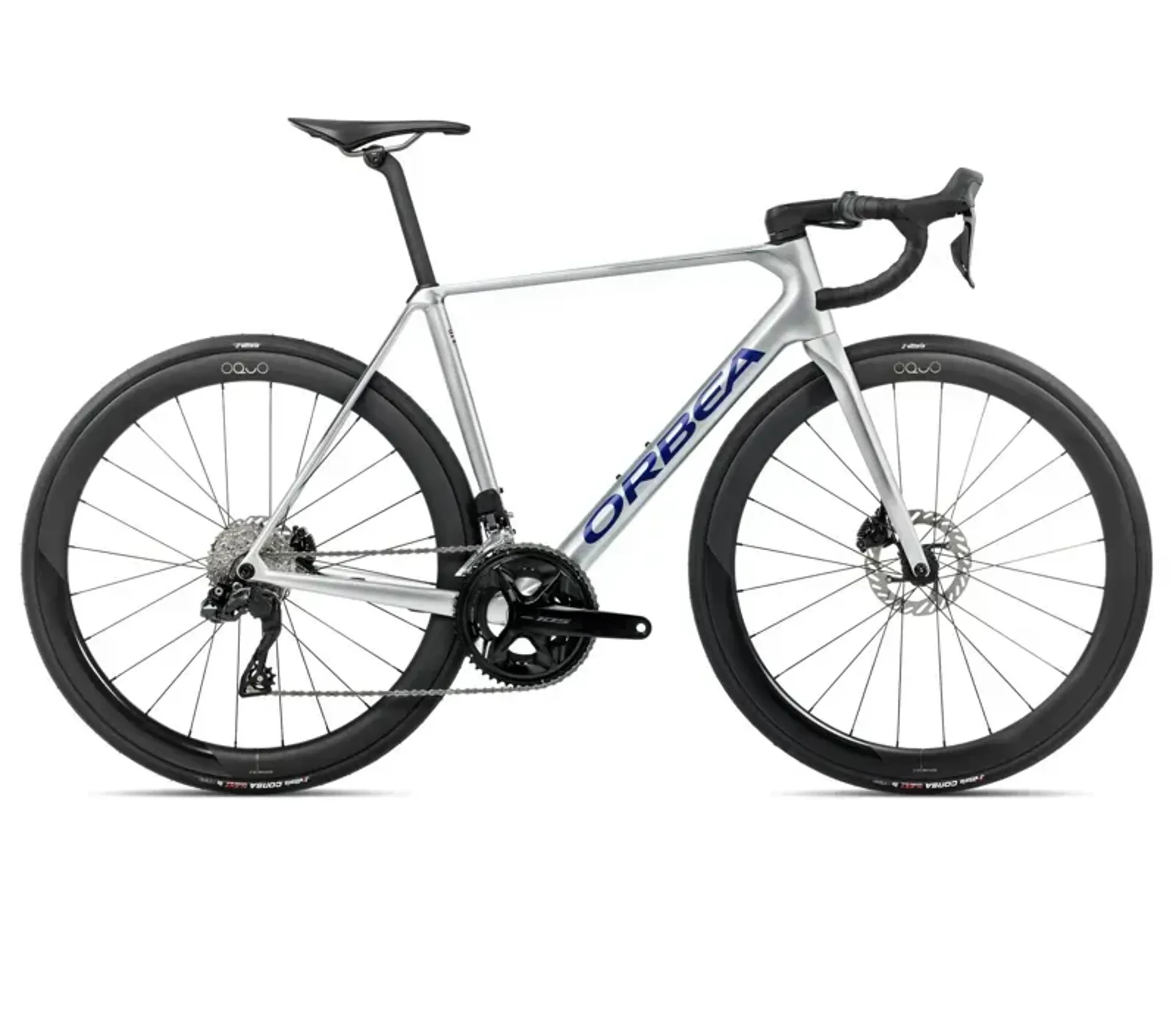

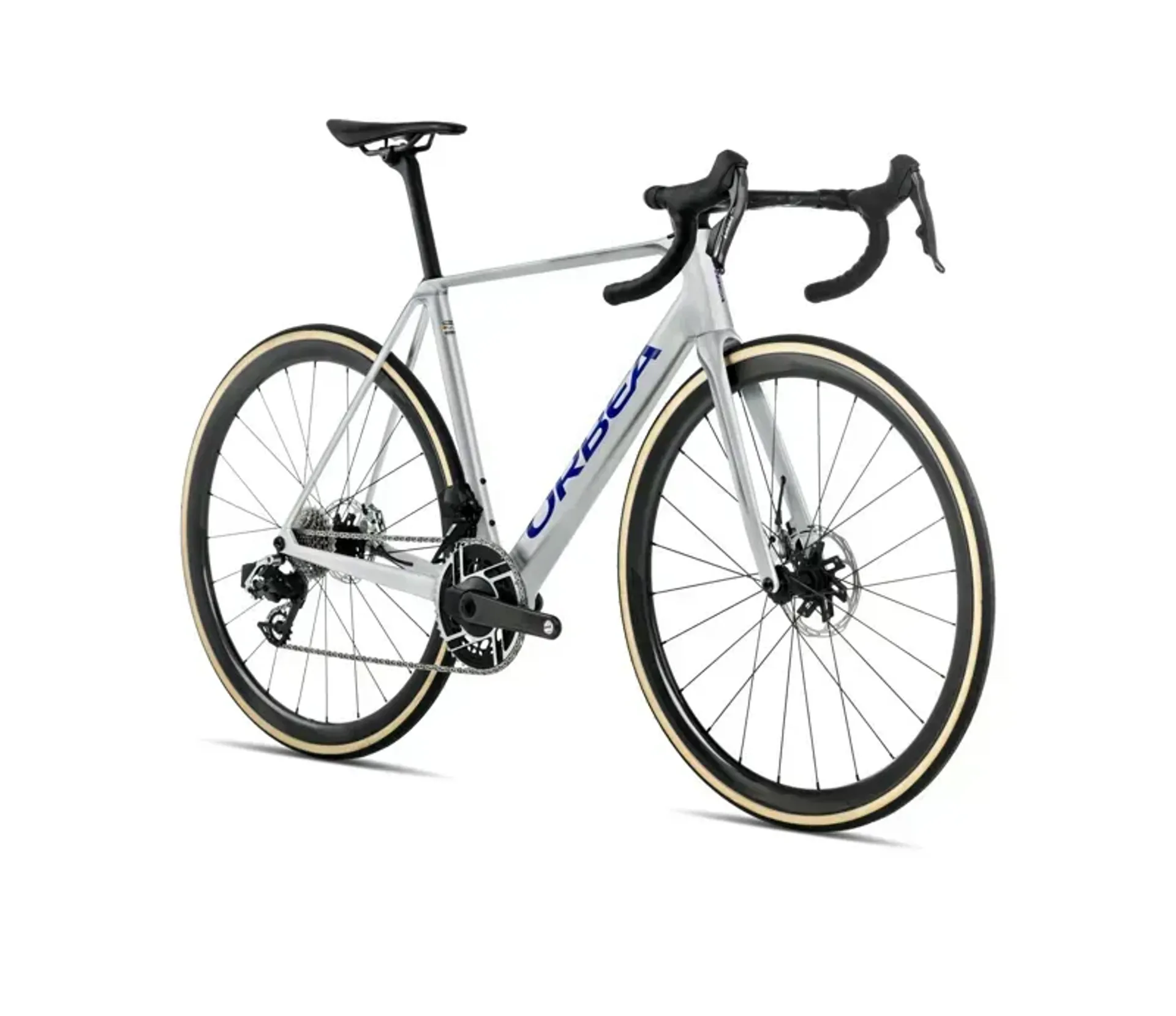

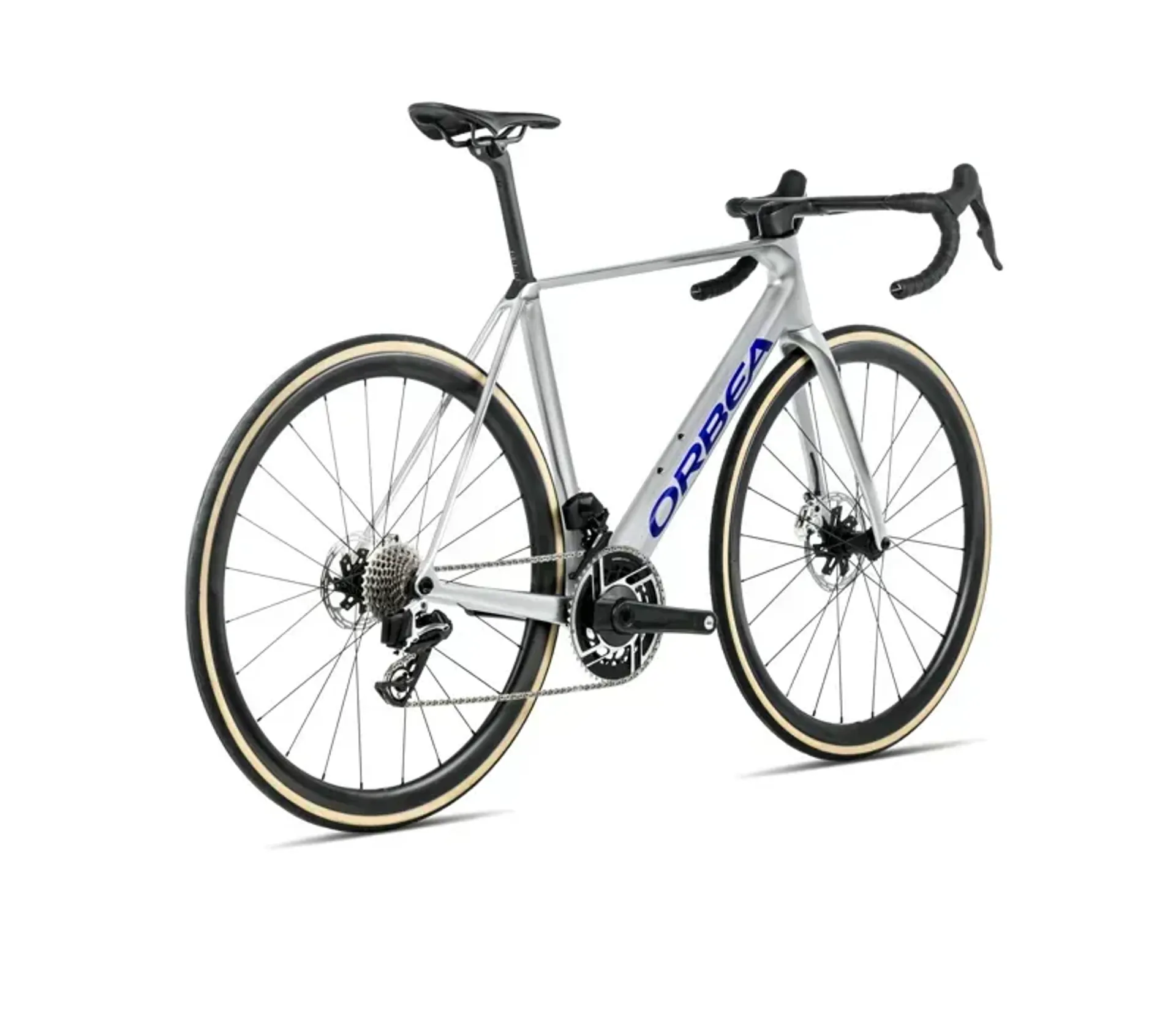

2026 Orbea ORCA M30iLTD PWR Road Bike in Spark Silver/Titain Grey

Season:2026

Brand:Orbea

Code:T113TTCCA7

Experience the unbeatable feeling of a bike this light and efficient.

This instant acceleration, vibration absorption, and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

Features:

  • The top-level OMX frame has fewer pieces of carbon, meaning fewer overlaps and less weight. It takes much more effort to lay out the carbon, but the result is a saving of almost 300g with no change in the rigidity.
  • Orbea alters the carbon layup for each frame size to ensure every Orca feels the same. These are the small details you notice when you ride.
  • The lower spine of the frame handles the large majority of torsional and lateral loads (Powerspine).
  • Internal Cable Routing (ICR Plus) is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
  • 32 mm tire clearance allows modern road riders to take advantage of bigger tires on rougher surfaces.
Technical Information
  • Frame
    Orbea Orca carbon OMX 2024, Monocoque construction, HS 1,5", BB 386mm, Powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
  • Fork
    Orbea Orca OMX ICR 2024, Full carbon, 1-1/8" - 1,5" Tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Crankset
    Shimano 105 R7100, 36x52t, with left side 4iiii Power Meter
  • Shifters
    Shimano Di2 R7170
  • Cassette
    Shimano 105 R7100, 11-34t, 12 Speed
  • Rear derailleur
    Shimano 105 Di2 R7150
  • Front derailleur
    Shimano 105 Di2 R7150
  • Chain
    Shimano M6100
  • Handlebar
    OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole
  • Stem
    OC Road Performance RP11, -8º
  • Brakes
    Shimano 105 R7170 Hydraulic Disc
  • Rotors
    160mm Front /140mm Rear
  • Wheels
    Oquo Road Performance RP45LTD
  • Tyres
    Vittoria Corsa N.Ext G2.0, Foldable, 700x28c
  • Front wheel axle
    Orbea Thru Axle 12x100mm, M12x2 P1 Lite
  • Rear wheel axle
    Orbea Thru Axle 12x142mm, M12x2 P1 Lite
  • Seatpost
    OC Performance XP10-S Carbon, 27.2mm, Setback 20
  • Saddle
    Fizik Vento Antares R3, Kium Rail, 140mm
  • Handlebar tape
    Orbea Anti-Slippery/Shock Proof
