E-Deemax S30 29 Wheelset
Designed and engineered for the unique demands of E-MTBs, this durable 29” wheel features alloy rims with pinch flat protection and all the latest Mavic technologies.
DELIVERED WITH
UST valve and accessories
Multifunction adjustment wrench (delivered with rear wheel)
2 replacement spokes with each wheel
Fore adjustment wrench
Rims
Material: Maxtal
Weight reduction: ISM
Tyre: UST Tubeless and tubetype
Material: S6000 Aluminum
SUP
Fore
Internal width: 30 mm
E-Bike specific rim profile
Black Shield treatment (protects your rim against impacts and scratches)
ETRTO size 29": 622x30TC
Pinch Flat Protection sidewall (minimises the risk of tire cuts and punctures)
Asymmetrical rim design
Spokes
Nipples: Fore integrated aluminum
Material: steel
Shape: straight pull, flat, double butted
Count: 28 front and rear
Lacing: front and rear crossed 3, contactless

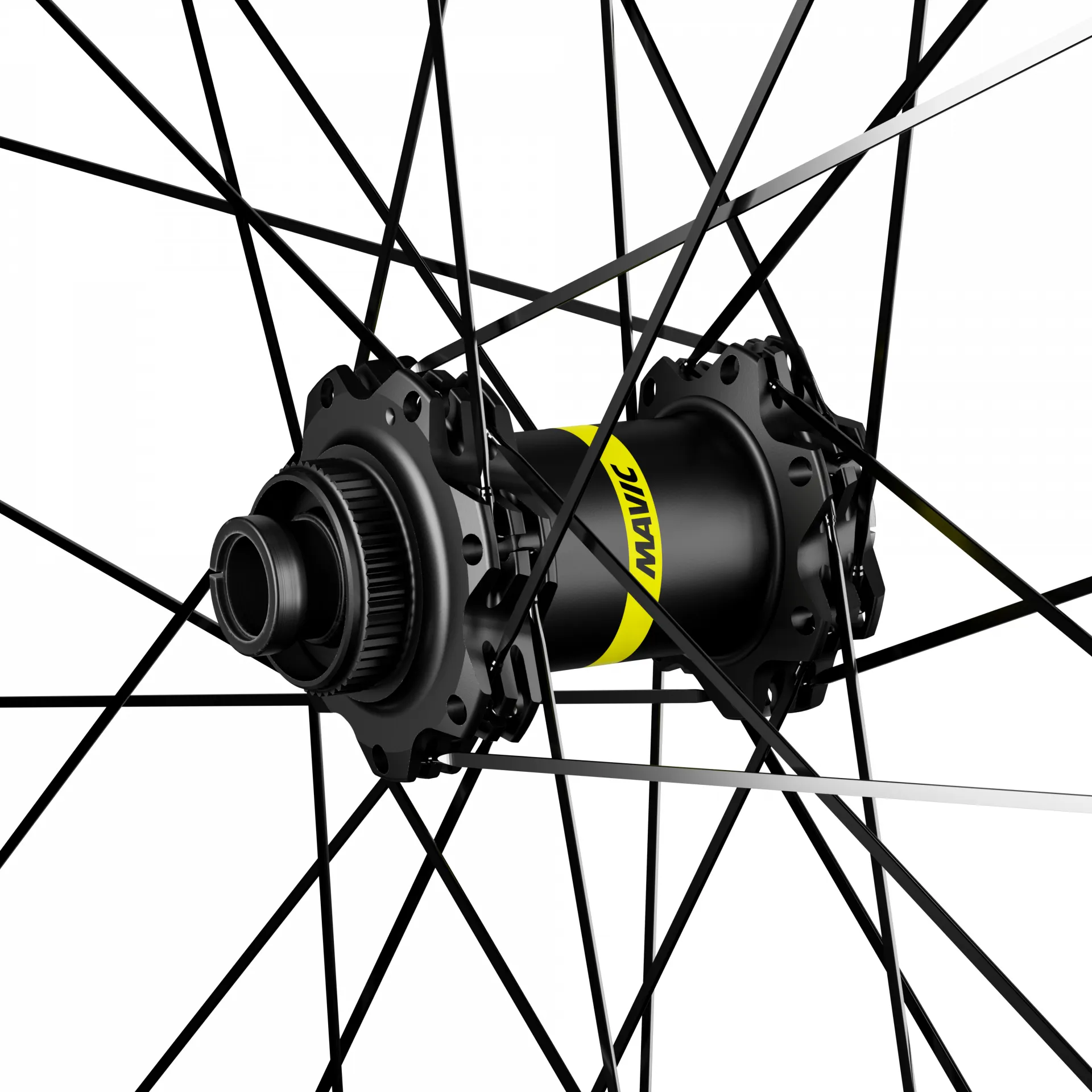

Hubs
Instant Drive 360
QRM Auto
Hub available with 6-bolt or centre lock (R) brake rotors
Axles: Front 15X110 Boost ; Rear 12X148 Boost
Intended use
ASTM CATEGORY 5 : GRAVITY RIDING FOCUSED ON THE DESCENT
Recommended tyre sizes: 60mm to 76mm (2.35" to 3.0")
Versions
Disc standard : 6 Bolts or Centre Lock (R)
Hub width : Boost only (front 110, rear 148)
Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
Compatibility
Front axle: 15x110 Boost, convertible to 20x110 Boost thru axle with adapters
Freewheel: Shimano HG9, XD or Micro Spline
Rear axle: 12x148 Boost thru axle
Compatible Adapters and freewheel bodies
ID360 Shimano HG9 alloy freewheel body ([LV3780100])
ID360 Sram XD freewheel body ([LV3740100])
Boost : Torque Caps ([LV2374400])
Boost : 20x110 boost front hub cap ([LV2680400] - Delivered with the wheel)
ID360 Shimano Micro Spline alloy freewheel body ([LV3990100])
The right wheel and tire combination can improve your skills and upgrade the performance of your E-bike on challenging off-road terrain. The new E-Deemax S30 is built specifically for E-bikes and has some unique technologies to help you ride smoother and have more fun on the trail.
Our patented PFP technology (Pinch Flat Protection) features rims with a wider contact surface at the top of sidewall to significantly reduce the risk of tire cuts and punctures. The 30mm wide rims allow you to run lower tire pressure for better traction and smooth rolling efficiency. Our patented Fore technology features a fully sealed upper rim bridge that eliminates the need for rim tape, making it the easiest system for mounting and changing tubeless tyres
ISM rim machining removes material from the rims in strategic areas to minimise weight without compromising strength, and our new Black Shield treatment protects the rims against impacts and scratches. We use 28 straight-pull spokes (same spoke length throughout) for a strong connection between the rim and hub, which has our ultra-reliable ID360 double ratchet system for quick engagement and acceleration. Set up for either 6-bolt or centre lock disc mounts, these 29” wheels are available for Shimano HG9, XD and Micro Spline freewheel bodies and come with UST tubeless valves, spare spokes and accessories.
