With the same geometry as its Carbon siblings, this is a durable and affordable hardtail designed for world-class speed.

With the same geometry as its Carbon siblings, this is a durable and affordable hardtail designed for world-class speed.

Scott

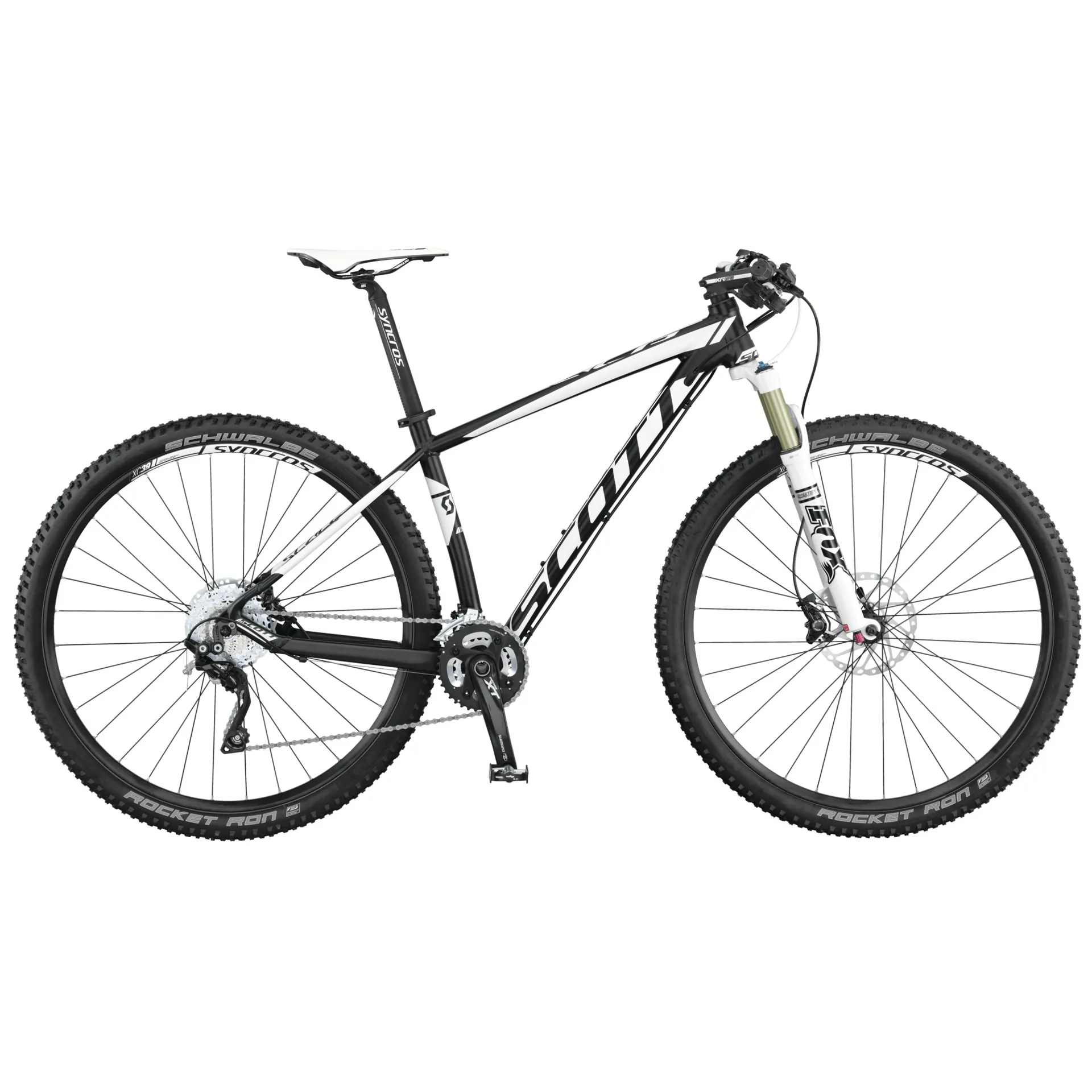

Scott Scale 940 Alloy Mountain Bike

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Scott Scale 940 Alloy Mountain Bike

Season:2015

Brand:Scott

Code:VAR238235

The SCOTT Scale 940 features a super light Alloy Frame.



The series comes fully equipped with a FOX CTD fork, along with our RideLoc technology to allow for three travel settings to always optimise your ride.



With the same geometry as its Carbon siblings, this is a durable and affordable hardtail designed for world-class speed.





Frame
Scale Alloy 6061 Custom Butted Superlight Tubing / Tapered Headtube / BB92 / ICR Internal Cable Routing / Bridgeless Seatstays

Travel
100mm

Fork
Fox 32 Float Evolution CTD Air / CTD Damper with 3 mode / 1-1/8" Alloy Steerer / Rebound Adjustment / 100mm Travel
Remote System
Scott RideLoc Remote Technology 3-modes

Headset
Syncros / VP-A41AC1 / 1.5" - 1-1/8" Semi Integrated

Rear Derailleur
Shimano XT RD-M781 SGS Shadow Type, 30 Speed

Front Derailleur
Shimano SLX FD-M675

Shifters
Shimano SLX SL-M670 Rapidfire Plus, 2-way Release

Brake Levers
Shimano BL-M615 Hydraulic Disc

Brakes
Shimano BR-M615 Hydraulic Disc / 180mmF/160mmR

Crankset
Shimano XT FC-M785 Hollowtech II / 38x24 T

BB-Set
Shimano SM-BB71

Handlebar
Syncros FL2.0 TBar 6061 Alloy 700mm

Handlebar Stem
Syncros XR2.0 6061 Alloy

Pedals
Wellgo M-21

Seatpost
Syncros FL2.5 Alloy, 31.6mm

Seat
Syncros XR2.0

Hub (Front)
Shimano HB-M615 CL

Hub (Rear)
Shimano FH-M615 Disc CL

Chain
Shimano CN-HG54

Cassette
Shimano SLX CS-HG81-10 11-36 T

Spokes
DT Swiss Champion Black 1.8mm

Rims
Syncros XC39, 32H

Tyres
Schwalbe Rocket Ron / Kevlar Bead / Dual Compound Performance Series / 29 × 2.1
Sizing Information

                S   M   L   XL   XXL
A head tube angle             69.5 °   69.5 °   69.5 °   69.5 °   69.5 °
B head tube length             105.0 mm 105.0 mm 115.0 mm 125.0 mm 140.0 mm
C top tube horizontal             580.0 mm 600.0 mm 620.0 mm 640.0 mm 660.0 mm
D standover height             756.0 mm 783.0 mm 810.0 mm 842.0 mm 883.9 mm
E BB offset             -60.0 mm -60.0 mm -60.0 mm -60.0 mm -60.0 mm
F BB height             310.0 mm 310.0 mm 310.0 mm 310.0 mm 310.0 mm
G wheel base             1,079.0 mm 1,096.0 mm 1,117.0 mm 1,137.0 mm 1,160.6 mm
H BB center to toptube center             329.0 mm 375.0 mm 415.0 mm 465.0 mm 522.8 mm
I BB center to top of seattube             390.0 mm 440.0 mm 480.0 mm 530.0 mm 580.0 mm
J seat angle             72.5 °   72.5 °   72.5 °   72.5 °   72.5 °
K chainstay             438.0 mm 438.0 mm 438.0 mm 438.0 mm 438.0 mm
L reach
M stack             385.0 mm 405.0 mm 422.0 mm 439.0 mm 452.9 mm
N stem length             618.0 mm 618.0 mm 628.0 mm 637.0 mm 650.8 mm
