Mondraker

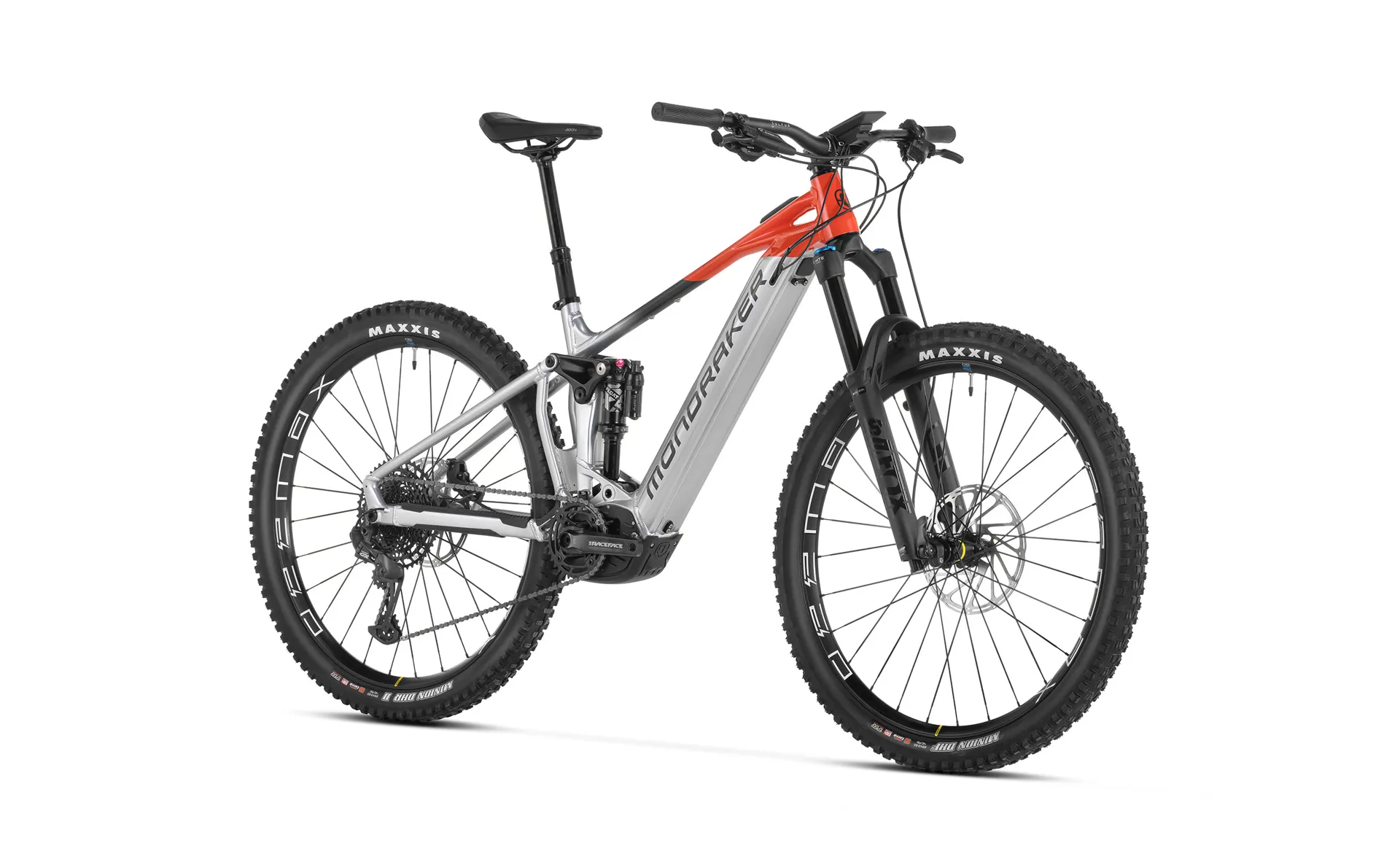

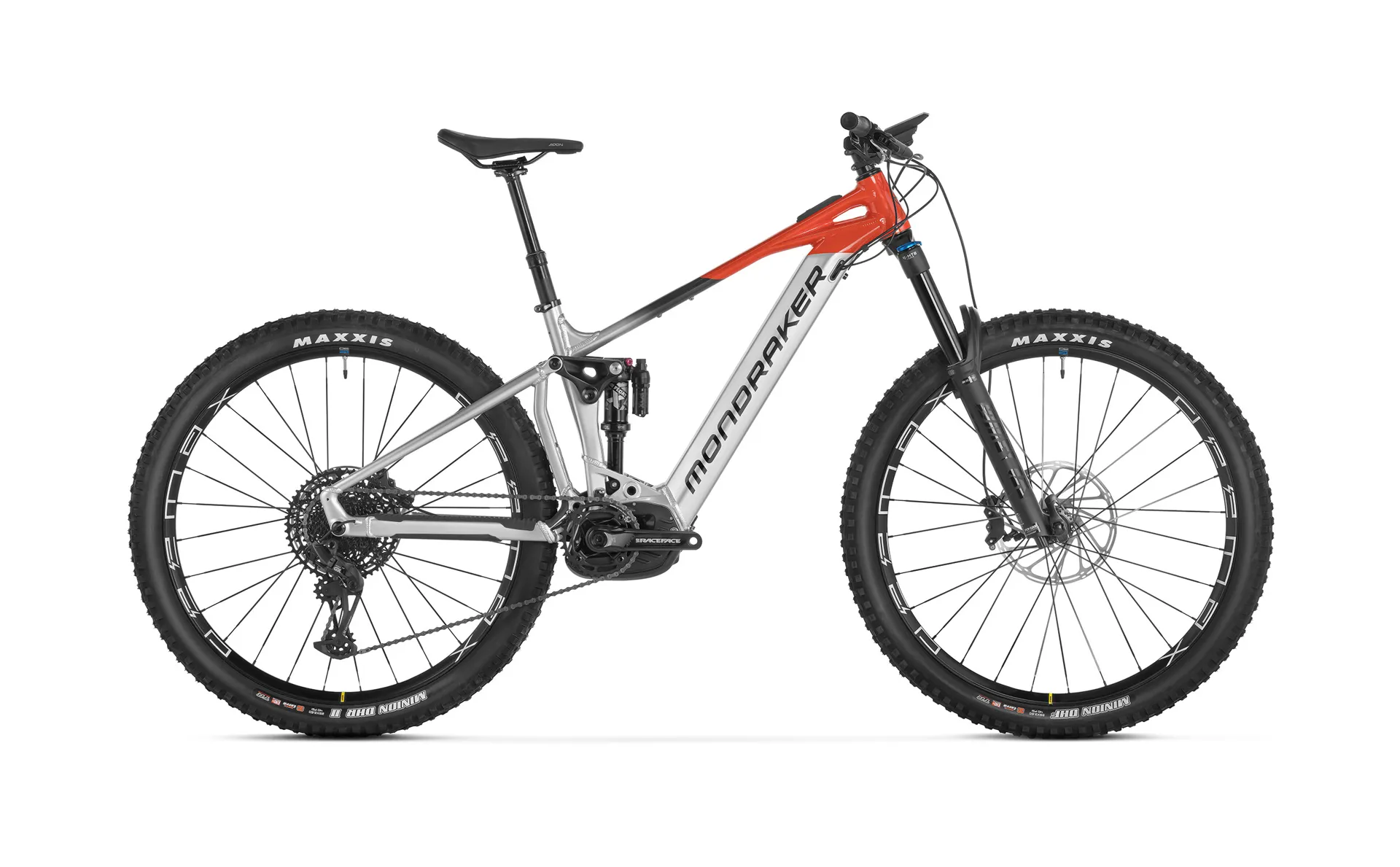

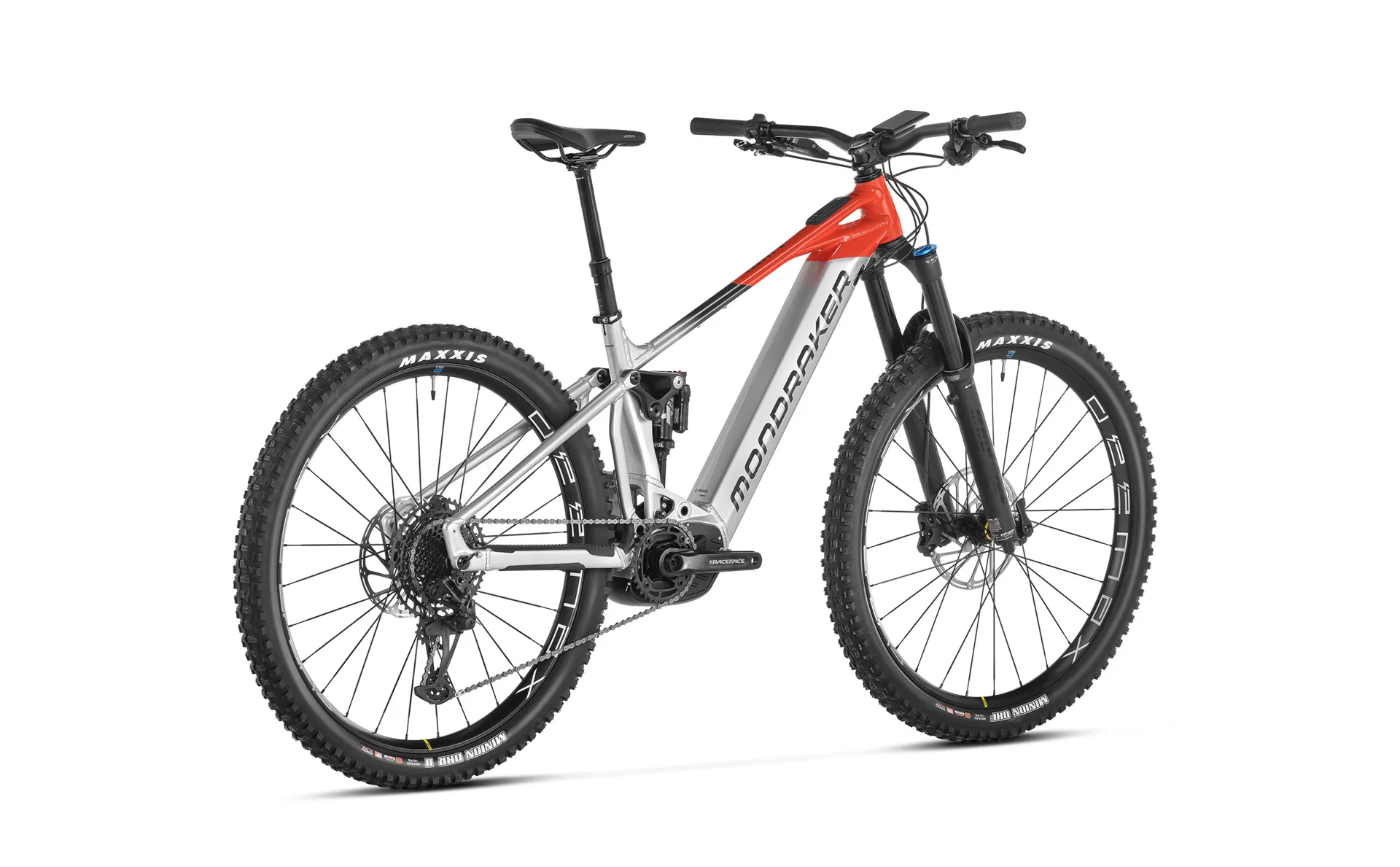

2024 Mondraker Crafty R Electric Mountain Bike in Silver and Red

£4,499.95 £5,699.00 21% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2024 Mondraker Crafty R Electric Mountain Bike in Silver and Red

Season:2024

Brand:Mondraker

Code:010.2439

The CRAFTY R rocks our ZERO suspension system kinematics which provides a super supple suspension action while at the same time not wasting any energy in the process. It’s one of our priorities when it comes to our bikes.
What’s more, the bike’s really agile on the trail which is much-needed in an eMTB. It all adds up to maximum fun and excellent value for money.
It comes complete with Bosch’s Performance CX Line Smart Control motor, the all-new Mini Remote control and integrated System Controller.
The CRAFTY R is the most competitive total enduro ebike out there.
Technical Information
  • Frame
    Crafty 6061 Alloy Stealth Evo / e-Bike Optimised Zero Suspension System / 150mm travel / Forward Geometry / internal non-removable battery / Boost 12x148mm rear axle / tapered head tube / one-piece Monoblock upper link / HHG internal cable routing / Integrated dropout speed sensor
  • Shock
    Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
  • Fork
    Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
  • Headset
    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings
  • Chainring
    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
  • Crank
    RaceFace Aeffect ebike, 165mm
  • Shifters
    Sram Trigger NX Eagle, 12 speed, X-Actuation 1:1, single click
  • Cassette
    Sram PG-1210, 11-50T, 12 speed
  • Rear derailleur
    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12 speed
  • Chain
    Sram SX Eagle, 12s, Powerlock
  • Handlebar
    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep
  • Stem
    Onoff Sulfur FG, 30mm, 0º, 6061 forged alloy, 31.8mm
  • Brakes
    Sram DB8, oversized 4-piston calliper, Centerline 220mm/F, 200mm/R IS 6 bolts one-piece rotor
  • Wheels
    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
  • Front Tyre
    Maxxis Minion DHF, 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding
  • Rear Tyre
    Maxxis Minion DHR II, 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding
  • Seatpost
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
  • Saddle
    FIZIK Terra Aidon X5, 145mm
  • Grips
    Onoff Desert, 1lock-on, 135mm
  • Motor
    Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
  • Battery
    Bosch Powertube 750Wh
  • Display
    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
