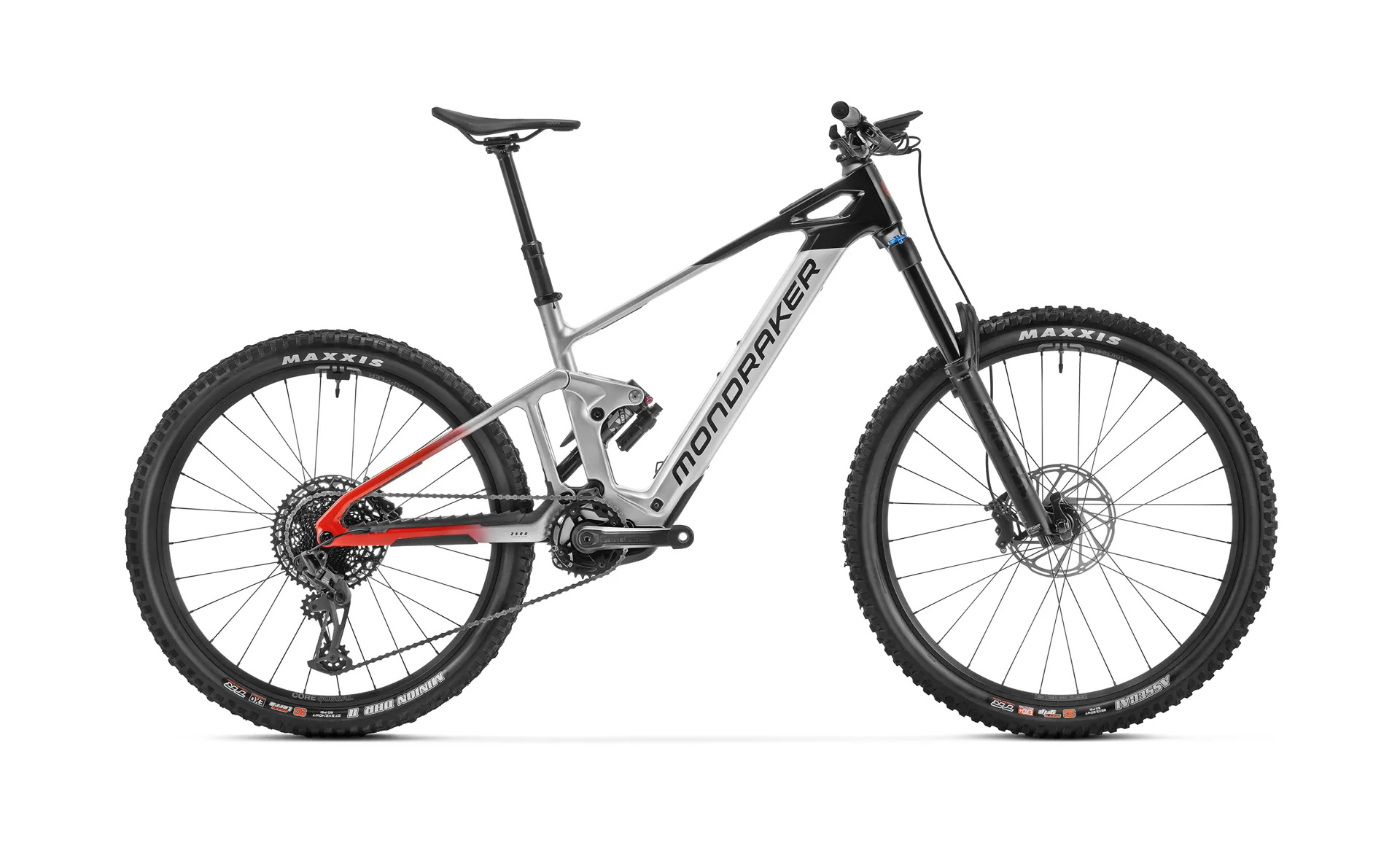

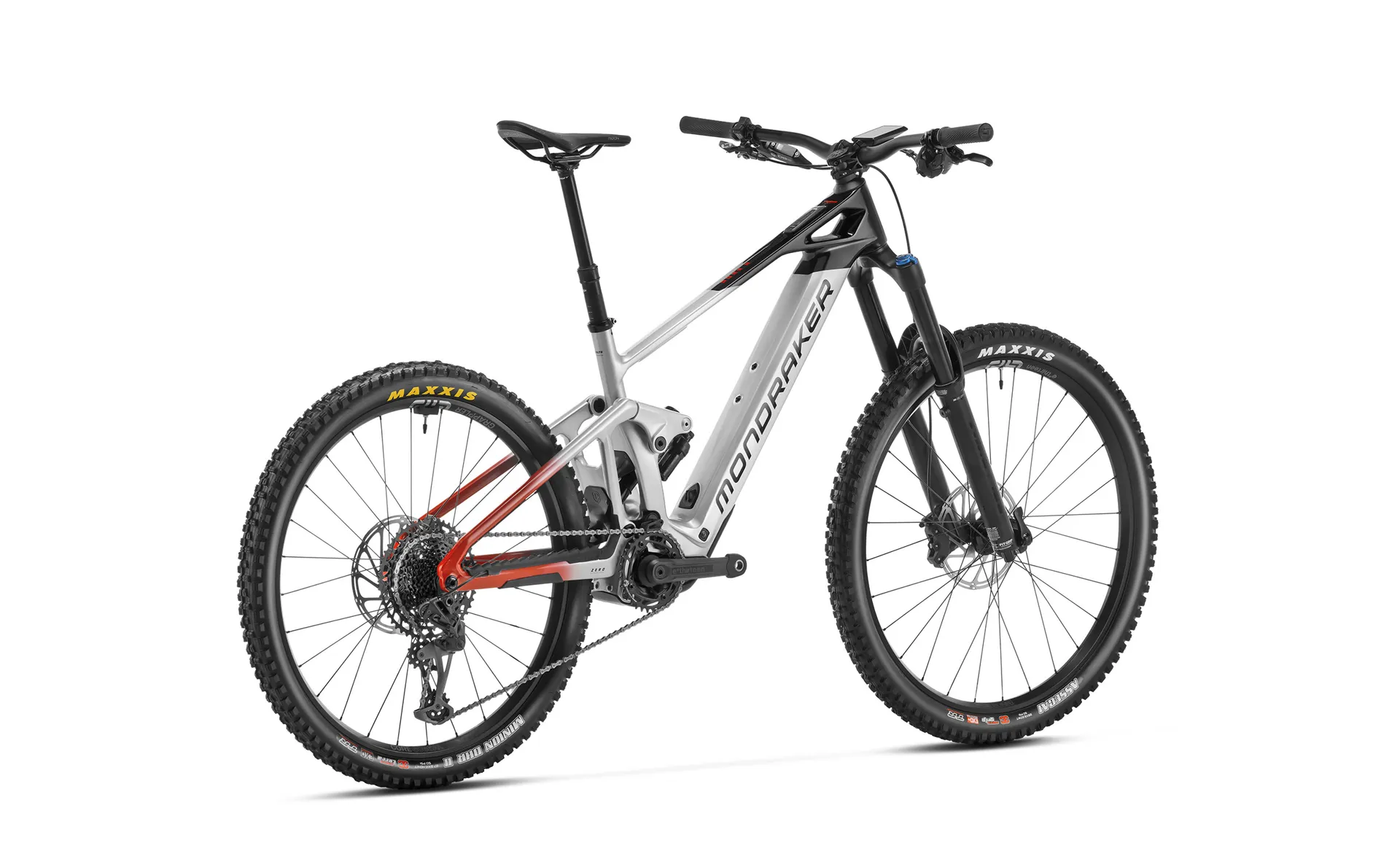

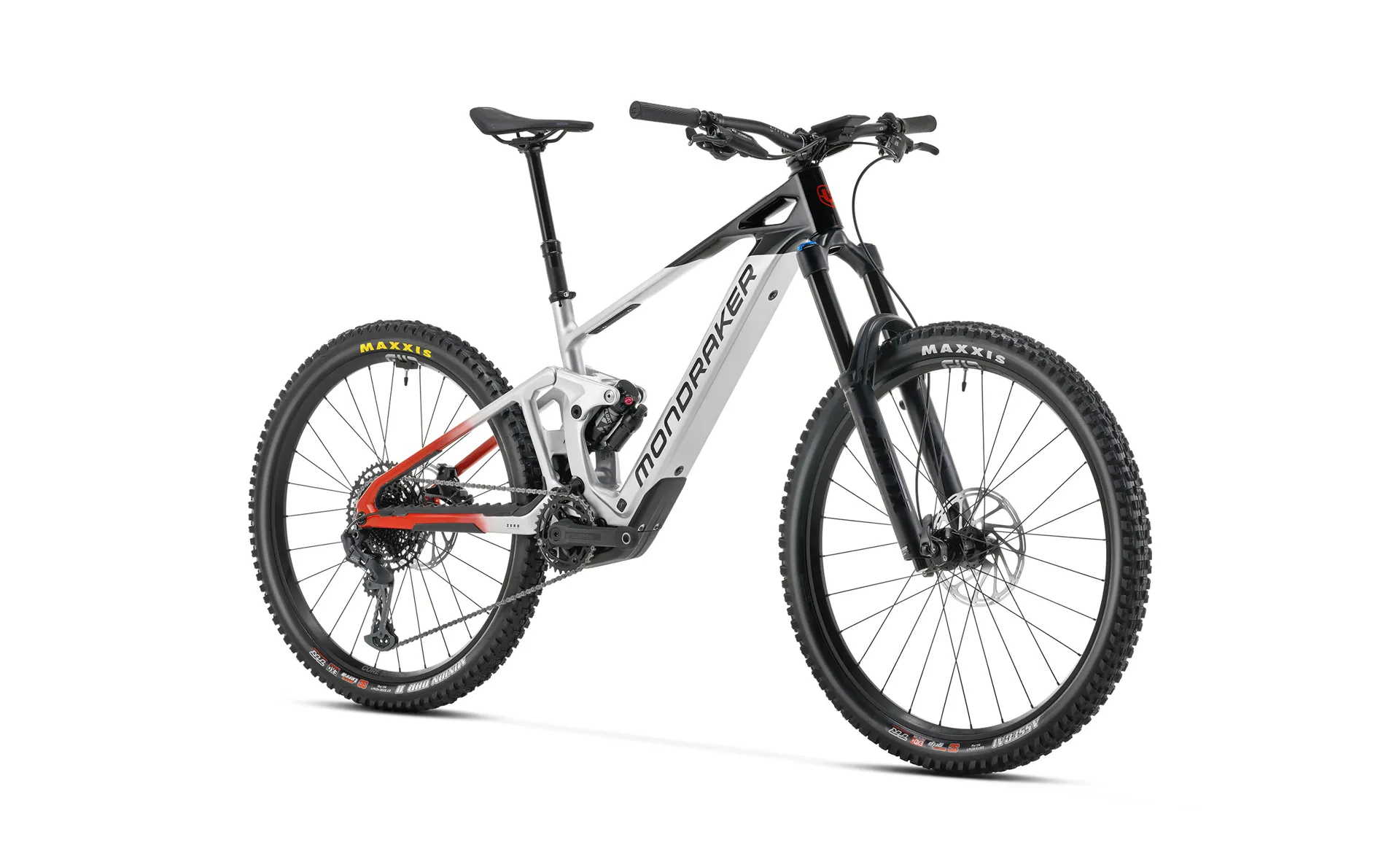

2024 Mondraker Dune R Electric Mountain Bike in Racing Silver

Season:2024

Brand:Mondraker

Code:010.2425

DUNE: SOMETHING SPECIAL IN ITS CLASS

DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes. Weighing in at under 20Kg it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.

The foundation of the DUNE is a Stealth Air Carbon frame weighing in at 2650 grams, combined with the power and light weight of Bosch’s latest offering, the Performance SX. The frame showcases our Updated Zero Suspension and offers 165mm of rear-wheel travel and Forward Geometry specifically tuned for this long-travel hard-hitting light ebike.

DUNE R: THE ENTRY LEVEL BUILD

The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.

Technical Information
  • Frame
    Stealth Air full Carbon / e-Bike Optimised Zero Suspension System / Mullet / 165mm travel / Forward Geometry / internal & removable battery / Boost 12x148mm rear axle / tapered head tube / one-piece Monoblock upper link / HHG internal cable routing / MAX capacity sealed bearings / oversize 15mm axles / exclusive plastic motor covers
  • Shock
    Fox Float X Performance EVOL / 505x65mm / Settings: 2-position compression (Open/Firm) / rebound / air preload / Trunnion top mount / 30x8mm bottom bushings
  • Fork
    FOX 38 Float 3P Performance Grip / 170mm / e-bike tuned / tapered steerer tube / Boost 15x110mm axle / 44mm offset / Settings: 3 positions with micro adjust compression / low-speed rebound / air preload
  • Headset
    Acros custom for 1-1/2" head tube / angular contact bearings 40x52x7 / Internal cable routing
  • Chainring
    Sram X-Sync 2 Eagle / 34T / steel / narrow-wide / 104 BCD
  • Crank
    E.13 E*Spec Plus / S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm
  • Shifters
    Sram Trigger NX Eagle / 12 Speed / X-Actuation 1:1 / single click
  • Cassette
    Sram PG-1230 / 11-50T / 12 Speed
  • Rear derailleur
    Sram GX Eagle / Type 3 roller bearing clutch / cage lock / 12 Speed
  • Chain
    SRAM GX Eagle 12-Speed
  • Handlebar
    Onoff Krypton 1.0 / rise: 25mm / width: 800mm / 9º backsweep / 5º upsweep / 31.8mm barbore
  • Stem
    Onoff Krypton FG / 30mm / CNC / 31.8mm barbore
  • Brakes
    Sram DB8 / 4-piston / Centerline 200mm IS 6 bolts one-piece rotors
  • Rims
    e*thirteen Grappler Core / Hookless 6069 Welded Aluminium / 30mm internal width / tubeless ready / 28F spokes / 29 front, 27.5 rear
  • Front Hub
    e*thirteen Boost 15x110mm / triple-sealed / fully machined aluminium / IS 6 bolt
  • Rear Hub
    e*thirteen Boost 12x148mm / triple-sealed / fully machined aluminium w/6-degree engagement / IS 6 bolt
  • Front Tyre
    Maxxis Assegai / 29x2.5WT / tubeless ready / 3C MAXX GRIP compound / DH casing / 60x2TPI / folding bead
  • Rear Tyre
    Maxxis Minion DHR II / 27.5x2.4 WT / tubeless ready / 3C MaxxTerra compound / DD protection / 2x120TPI / folding bead
  • Seatpost
    Onoff Pija dropper internal / diameter 31.6mm / 1X Remote lever with bearing / S size: 125mm, M size: 150mm, L size: 170mm, XL size: 200mm
  • Saddle
    Fizik Terra Aidon Slim X5
  • Grips
    Onoff Desert / 1lock-on / 135mm
  • Motor
    Bosch Performance Line SX GEN4 SMART SYSTEM Diagonal / Wide
  • Battery
    Bosch Compact Powertube / 400Wh
  • Display
    Bosch Kiox 500
  • Remote
    Bosch Mini Remote / Bosch System Controller
